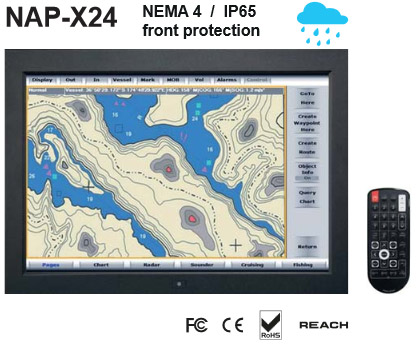

24" High Resolution CCFL LCD Display with HDMI, DVI-D and NEMA 4 / IP65 Protection
NAP-X24
Save $159.00
Aspect Ratio: 16:10 (1920x1200)
Screen Size: 24 in
Model: NEMA4 / IP65 Protection
Display Features & Benefits
- 24" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
- Wall-mount, VESA mount
- PIP & Picture by Picture viewing efficiency
- 6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
- Rugged construction against external impact

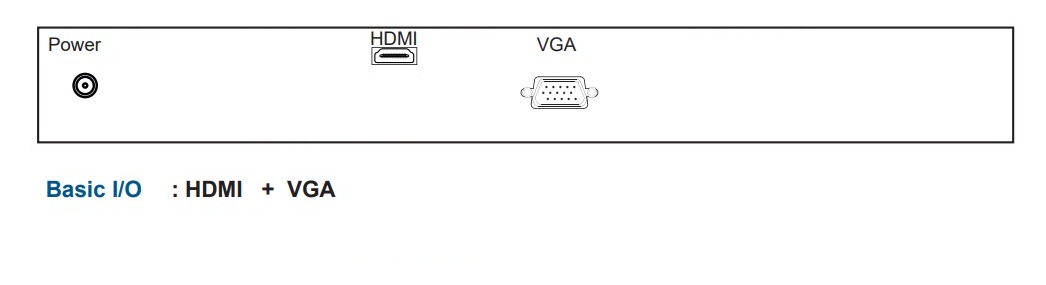

- Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
| Mechanical | |
| Height | 16.8 in. (42.6 cm.) |
| Width | 24.4 in. (62.0 cm.) |
| Depth | 3.4 in. (8.7 cm.) |
| Weight | 26.0 lbs. (11.8 kg.) |
| Package Dimensions (HxDxW) | 27.6 x 5.4 x 27 inch (701 x 138 x 685 mm) |
| Package Weight | 34.1 lbs. (15.5 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 24.1" Widescreen TFT |
| Resolution | 1920 x 1200 |
| Brightness (cd/m2) | 400 |
| Colors | 1.07 Billion, 10-bit |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 178° x 178° |
| Active area (mm) | 518 x 324 |

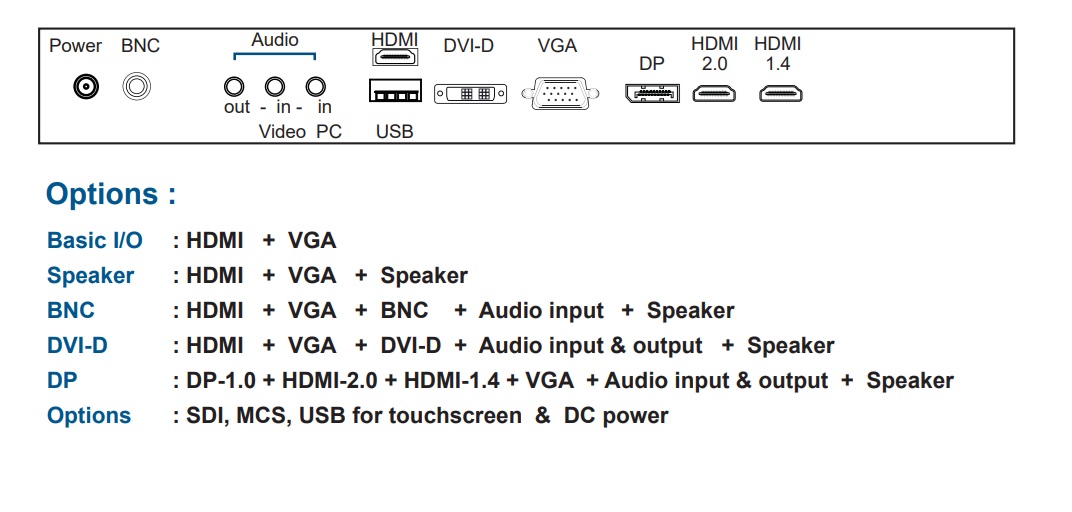

| Signal Input | HDMI, DVI-D, VGA, S-Video, RCA Built-in Dual Stereo Speakers(10W x 2) |
