1U 19" Rack Mount Monitor Sun Keyboard Drawer w/ 8-Port KVM Switch
NS119-S801
$1,627.00

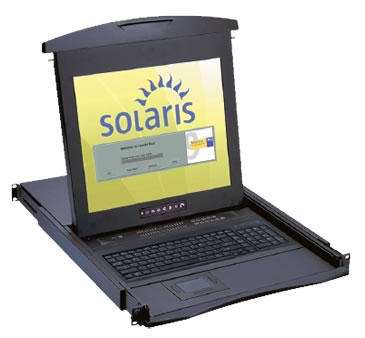

The NS119-S801 is a 1U Rackmount Monitor Drawer with 19" LCD, SUN Keyboard with trackball or touch-pad mouse and integrated 8 port USB KVM switch.
This model comes with either of the following keyboard options:
NS119-S801 is the replacement for NS119-801. For PS/2 sources, please order CE PS/2 KVM cables.
NS119-S801 Rackmount LCD Features:
- 1U 19" LCD console drawer
- Direct Support for SUN Micro 1152x900 native resolution
- Secure remote user access across the world wide web
- 104-key keyboard with SUN hotkeys
- Short depth design of 500mm (19.7") only
- Enhanced aesthetics with molded front handle and two point lock
Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 589 x 768 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.5 lbs. (12.5 kg.) |
| Gross Weight | 37.4 lbs. (17 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 19" TFT |
| Resolution | 1280 x 1024 (Native) |
| Brightness (cd/m2) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Display Area (mm) | 376 x 301 |
| Signal Input | VGA or DVI-D |
| Regulation Approval | cUL, FCC, & CE certified |
| KVM Switch | |
| Ports | 8 |
| Connector | DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet |
Local Console |
LCD console drawer version (up to 1920x1080 / 1920x1200) |
| Multilingual OSD | English, France, German, Spanish, Italian, Russian, Chinese, Japanese |
| Expansion | Up to 128 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
The part number for this item is NS119-S801e or NS119-S801b, depending on the keyboard style selected.
