NTI Rackmount 17" LCD SUN USB Drawer with 16-port USB DVI KVM Switch
RACKMUX-DS17-NT-16DVIHD
Save $270.75
The NTI RACKMUX-DS17-NT-16DVIHD DVI SUN USB KVM Drawer with Built-In High Density USB DVI KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball or touchpad mouse, and a 16-port USB DVI KVM switch in a space-saving 1RU industrial strength drawer.
NTI RACKMUX-DS17-NT Features and Benefits:
- Available with forward-folding 17 in TFT/LCD DVI monitor.
- Available with a 16-port USB DVI KVM switch.
- Control up to 16 USB enabled computers with single link DVI outputs.
- Crisp and clear 1280x1024 video resolution.
- Torque-friction hinges - monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position.
- Drawer locks into place when open to prevent it from sliding out of the rack.
- Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
- Keyboard available in: English(US).

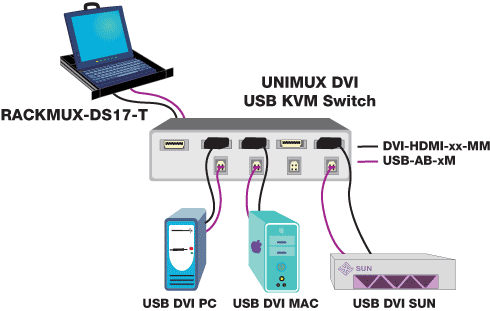

NTI Rackmount DVI SUN USB KVM Drawer Diagram
NTI RACKMUX-DS17-NT-16DVIHD Specifications:
| Mechanical | |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 21.9 |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Host Interface | |
| Compatibility | USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers with DVI-D single link video |
| Connectors | 1 x DVI-I; 1 x USB Type B |
| Monitor | |
| Type | 17" Active Matrix LCD flat panel DVI |
| Resolution | 1280 x 1024 |
| Tilt | Up to 120° |
| Frequency | Horizontal: 31-80 KHz; Vertical: 56-76 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 114-key (US) SUN-compatible keyboard with numeric keypad |
| Mouse | Three-button trackball |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Power Consumption | 30W |
| Regulatory Approvals | CE, RoHS |

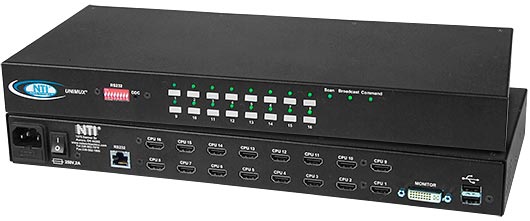

NTI UNIMUX-DVI-16HD KVM Switch
NTI UNIMUX-DVI-16HD (included KVM Switch) Specifications:
| Mechanical | |
| Width | 19 in. (48.2 cm.) |
| Height | 1.75 in. (4.5 cm.) |
| Depth | 6.0 in. (15.2 cm.) |
| Hosts | Female HDMI-A connectors. Supports USB-enabled computers (PC, SUN, and MAC) with DVI video. Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10. |
| Monitor | |
| Resolution | 1920x1200 |
| Connector | One female DVI-I connector Single link DVI-D signal |
| Compatibility | DDC2B compatible |
| Devices | |
| Connectors | Two female USB Type A connectors. Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse. |
| Compatibiltiy | Compatible with most USB keyboards and mice, including USB IntelliMouse. Keyboard and mouse are hot-pluggable. Supports SUN and MAC extra keys. |
| Power | 110 or 220 VAC at 50 or 60 Hz via IEC connector.. |
| Consumption | 10W |
| Cables | Interface cables between your computers and the switch are required for proper operation. Use USB-DHEXT-xx-MM to connect computers to the switch. |
| Environmental | |
| Operating Temperature | 32° F to 100° F |
| Storage Temperature | -20° F to 140° F |
| Operating and Storage Relative Humidity | 17 to 90% non-condensing RH |
| Regulatory Approvals | CE, ROHS |
