NTI Rackmount 17" KVM Drawer with Mouse and SUN PC KVM Matrix Switch
RACKMUX-V17-MP-2X16UHD
The NTI RACKMUX-V17-MP-2X16UHD KVM Drawer with Built-In 2-user, 16-port SUN PC KVM Matrix Switch combines a rackmount LCD monitor, keyboard, real mouse and a KVM matrix switch in a space-saving 1RU industrial strength drawer.
NTI RACKMUX-V17-MP-2X16UHD Features and Benefits:- Available with backward-folding 17 in. TFT/LCD VGA monitor.
- Video Resolution: 1280x1024
- Includes a 2x16 SUN PC KVM matrix switch.
- Two users can individually command or simultaneously share up to 16 computers.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position.
- Drawer locks into place when open to prevent it from sliding out of the rack.
- Cable management shelf included.
- Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, Spanish, and Turkish.
NTI Rackmount KVM Drawer with NODEMUX KVM Switch Diagram
NTI RACKMUX-V17-MP-2X16UHD Specifications:
| Mechanical | KVM Drawer and Switch |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 47.8 in. |
| Weight | 42.6 lbs. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Power | 110 to 220VAC, 50/60Hz via AC adapter |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 5 ft. attached cables with 1 x 15-pin HD, 2 x 6-pin miniDIN, 1 x USB Type A |
| Monitor | |
| Type | Active matrix LCD flat panel VGA; backward-folding |
| Resolution | 1280 x 1024 |
| OSD Controls | Brightness, contrast, phase, pitch, Horz- and Vert- center alignment, zoom, and color adjustment |
| Frequency | Horizontal: 31-80 KHz; Vertical: 60-85 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 83-key (US) |
| Mouse | Three-button optical mouse |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Regulatory Approvals | CE, RoHS |

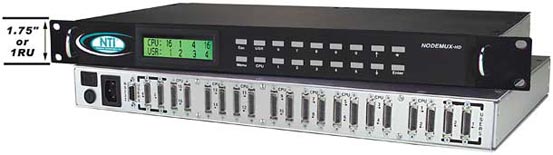

NTI NODEMUX ST-2X16-UHD KVM Switch
NTI ST-2X16-UHD (included KVM Switch) Specifications:
| Mechanical | |
| Width | 19.0 in. |
| Height | 1.75 in. |
| Depth | 12.5 in. |
| Video | |
| Resolution | 1900 x 1200 |
| Monitor | VGA |
| Bandwidth | 150 Mhz |
| Keyboard/Mouse | |
| Connectors | PS/2 or SUN |
| Keyboard | Hot pluggable |
| Power | 110 or 220VAC, 50/60Hz via IEC connector |
| MBTF | 43,945 hrs |
| Regulatory Approval | CE, ROHS |
