NTI Rackmount 17" KVM Drawer with KVM on IP
RACKMUX-V17-N-IP
The NTI RACKMUX-V17-N-IP KVM Drawer with KVM on IP combines a rackmount LCD monitor, keyboard, touchpad mouse, and a KVM on IP unit in a space-saving 1RU industrial strength drawer. The RACKMUX-V17-N-IP drawer allows you to access a server remotely using a standard Internet browser.
NTI RACKMUX-V17-N-IP Features and Benefits:- Available with forward-folding 17" TFT/LCD VGA or DVI monitor.
- 1280x1024 video resolution for standard 17" monitor.
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
- Compatible with USB computers.
- Securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet.
- Torque-friction hinges - monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Front quick-release latches for pushing the drawer back into the rack.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position.
- KVM on IP requires no client software. Secure, encrypted browser sessions with authentication.
NTI Rackmount KVM Drawer with INTERMUX KVM Switch Diagram
NTI RACKMUX-V17-N-IP Specifications:
| Mechanical | KVM Drawer and Switch |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 23.9 in. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Power | 110 to 220VAC, 50/60Hz via AC adapter |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 5 ft. attached cables with 1 x 15-pin HD, 2 x 6-pin miniDIN, 1 x USB Type A |
| Monitor | |
| Type | Active matrix LCD flat panel VGA; backward-folding |
| Resolution | 1280 x 1024 |
| OSD Controls | Brightness, contrast, phase, pitch, Horz- and Vert- center alignment, zoom, and color adjustment |
| Frequency | Horizontal: 31-80 KHz; Vertical: 60-85 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 83-key (US) |
| Mouse | Three-button optical mouse |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Regulatory Approvals | CE, RoHS |

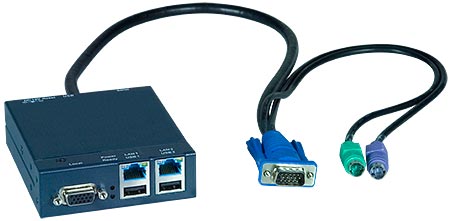

NTI INTERMUX-KVMUIP KVM on IP Switch
NTI INTERMUX-KVMUIP (included KVM Switch) Specifications:
| Mechanical | |
| Width | 4 in. |
| Height | 1.1 in. |
| Depth | 3.5 in. |
| Connectors | 2 x RJ45 UTP Ethernet; 2 x USB Type A; 1 x HD-15; 1 x integrated 3 in 1 KVM cable; 1 x USB mini device connector and cable; 1 x RJ45 for RS232 port; 1 x DC Jack for 12V DC |
| 1900 x 1200 | |
| Environmental | |
| Operating Temperature | 32°F to 122°F, (0°C to 50°C) |
| Storage Temperature | -20°F to 140°F, (-30°C to 60°C) |
| Power | 110 or 220VAC, 50/60Hz via AC adapter |
| Video | 2048 x 1536 (Local); 1600 x 1200 (Remote) |
| Regulatory Approval | CE, ROHS |
