NTI RACKMUX 17" USB & PS/2 KVM Drawer, with Numeric Keypad
RACKMUX-V17-N
Save $140.40
The NTI RACKMUX¨ RACKMUX-V17-N is a USB + PS/2 KVM Drawer combines a 17" rackmount LCD monitor, keyboard, touchpad mouse, and numeric keypad in a space-saving 1RU industrial strength drawer.
NTI RACKMUX Rackmount LCD Features:
- Compatible with USB and PS/2 computers.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Optional mounting bracket available for two-post style telco rack (sold separately)
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Equipped with On Screen Display (OSD).
- Front panel security lock.
- Front panel USB port to connect an external USB device, such as a flash drive.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Also available with 15" Active Matrix LCD flat panel VGA monitor (RACKMUX-V15-N)

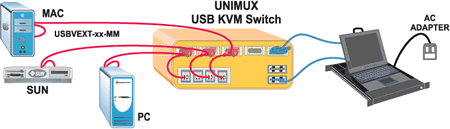

NTI RACKMUX Application Diagram
Included Cables:
-
6-foot 15-pin HD VGA male to male cable included.
-
6-foot USB Type A male to USB Type B male cable included.
-
6-foot dual 6-pin miniDIN male to male keyboard/mouse cable included.
-
6-foot power supply cable included
NTI RACKMUX-V17-N Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 19 in. (48 cm.) |
| Depth | *21.9 in. (55.6 cm.), Adj. from 22" to 39" |
| Weight | 26 lbs. (12 kg.) |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 20 to 90% non-condensing RH |
| Power | |
| Supply | 110 or 220 VAC at 50 or 60 Hz via IEC connector |
| Consumption | 30W |
| Maximum Inrush Current | 30A |
| Monitor | |
| Style | Forward-folding 15" Active Matrix LCD flat panel VGA monitor |
| Video Resolution | 1024x768 |
| Frequency | Horizontal: 31 to 80 KHz Vertical: 55 to 76 Hz |
| OSD Controls | Brightness, Contrast, Phase, Pitch, Horz- and Vert-center Alignment, Zoom and Color Adjustment |
| Brightness | 300 nits |
| Typical Contrast Ratio | 500:1 |
| Supported Protocols | DDC1 and DDC2B |
| Devices | |
| Keyboard | 100-key keyboard with numeric keypad |
| Mouse | 3-button touchpad |
| Connectors | |
| Front Panel | USB 1.1 port to connect external USB devices |
| USB | Female type A (KVM drawer must be connected to a USB-enabled computer) |
| MTBF | 40,530 hrs |
| Regulatory Approvals | CE, RoHS |
*Handle adds an additional 1.5" to the depth when monitor is in closed position
Question: We have one of your KVMs I think this one. Are there user guides available online?
Answer: Thank you for your inquiry. The manual for this NTI KVM drawer can be downloaded here: http://www.networktechinc.com/kvm-drawer-usb.html#tab-4.
Manuals for additional NTI KVM drawers (including devices with integrated KVM switches) can be downloaded from the NTI website as well. You can search by model number, then open up the downloads tab for a listing of manuals and guides for that product family. (you can use the Parts & Pricing tab to locate the specific model number)
Question: What is the country of origin for this unit?
Answer: Thank you for your inquiry,
The Country of Origin for the NTI Rackmux-V17-N is the United States.
