NTI Rackmount 20" LCD KVM Drawer with PRIMUX KVM Switch via CAT5
RACKMUX-V20-N-PRIMUX
The NTI RACKMUX-V20-N-PRIMUX KVM Drawer with Built-In KVM Switch via CAT5 combines a rackmount LCD monitor, keyboard, touchpad mouse and the NTI PRIMUX Zero-U KVM Switch via CAT5 into a space-saving 1RU industrial strength drawer.
NTI RACKMUX-V20-N-PRIMUX Features and Benefits:
- Available with forward-folding 20 inch TFT/LCD VGA monitor.
- 1600x1200 video resolution.
- Control up to 64 servers from 1,000 feet away through one built-in user console.
- One platform-specific (PS2, SUN, USB or serial) HA-x host adapter is required for each computer.
- Provides a simple daisy-chained wiring configuration.
- Designed to be a one-person job when installing the drawer.
- Interconnect multiple servers at different locations throughout a building. Servers can be of the same or differing platforms (PS/2, SUN, USB, or Serial).
- Torque-friction hinges - monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
- LCD auto-shutoff in closed position.
- Drawer locks into place when open to prevent it from sliding out of the rack.
- Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
- Keyboard available in: English(US).

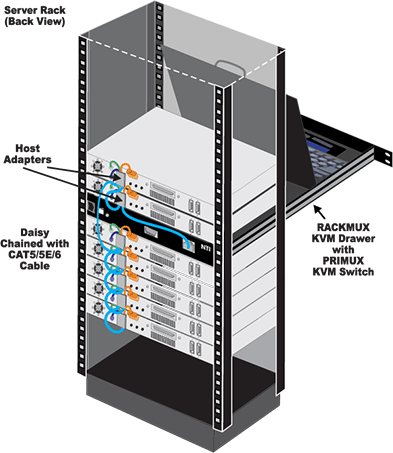

NTI RACKMUX LCD KVM Drawer with PRIMUX KVM Switch Diagram
NTI RACKMUX-V20-N-PRIMUX Specifications:
| Mechanical | |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 23.9 in. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 1 x 15-pin HD; 1 x USB Type B; 2 x 6-pin miniDIN |
| Monitor | |
| Type | Active matrix TFT LCD 20.1 in. flat panel VGA |
| Resolution | 1600 x 1200 |
| Tilt | Up to 105° |
| Frequency | Horizontal: 40-80 KHz; Vertical: 59-61 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 800:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 100-key (US) keyboard with numeric keypad |
| Mouse | Three-button touchpad |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Cables Included | 6 ft. 15-pin HD VGA M-M; 6 ft. USB Type A to USB Type B M-M; 6 ft. dual 6-pin miniDIN M-M; 6 ft. power supply cable |
| Power | |
| Power Consumption | 100V-240VAC @ 50/60Hz via IEC connector |
| Regulatory Approvals | CE, RoHS |

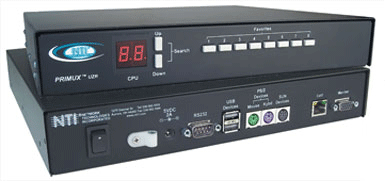

NTI PRIMUX-UZR KVM Switch
NTI PRIMUX-UZR KVM Solution (included KVM Switch) Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 11 in. (27.94 cm.) |
| Depth | 11 in. (27.94 cm.) |
| Monitor | |
| Connector | Female 15-pin HD connector |
| Resolution | Maximum 1024x768 video resolution at 1,000 feet; higher resolutions are supported at shorter distances. |
| Devices | |
| Connectors | 2 x USB Type A; 2 x 6-pin miniDIN |
| Host Adapters | |
| Hosts | Maximum 64 host computers can be dasiy-chaned |
| HA-PS2 | 1 x 15-pin HD, 2 x 6-pin minDIN; Compatible with legacy PS/2 VGA computers |
| HA-SUN | 1 x 15-pin HD, 2 x 6-pin miniDIN; Compatible with legacy SUN VGA computers |
| HA-USB | 1 x 15-pin HD, 1 x USB Type A; Compatible with USB VGA computers |
| HA-RS | 1 x RJ45 serial port connector; Compatible with most serial devices with R232 port |
| Regulatory Approvals | RoHS |
