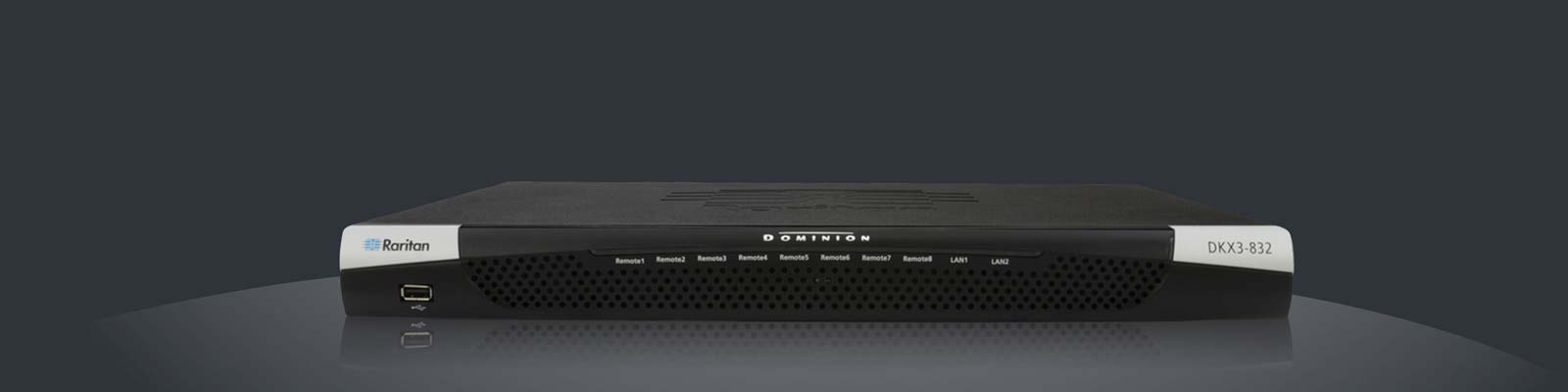

Raritan Dominion KX III
KVM Over IP Switch & Accessories
Overview
DKX3-Series Brochure (PDF)

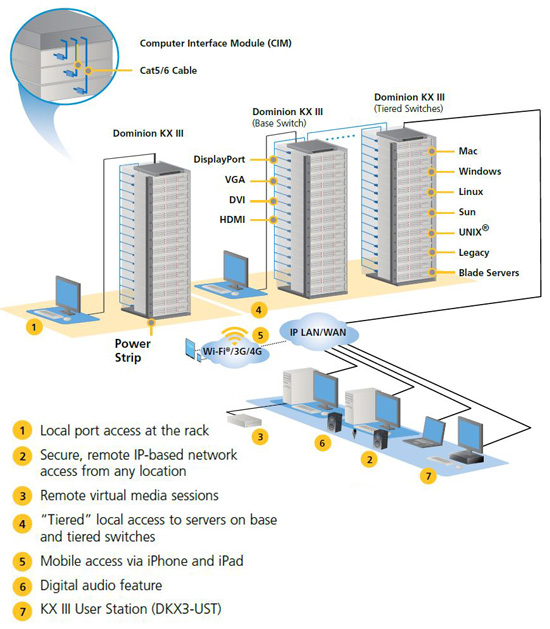

The KX III is an enterprise-class KVM-over IP switch that provides 1, 2, 4 or 8 users with BIOS-level remote management of 8, 16, 32 or 64 servers in a single switch. Its high quality video performance, robust security, and enhanced reliability over previous models make the Dominion KX III useful for a range of settings, from Server Rooms to Test Labs. With standard features such as DVI/HDMI/DisplayPort digital video, VGA analog video, audio, virtual media, smart card/CAC, and mobile access, the Dominion KXIII is suitable for both general applications and dynamic broadcast applications.DKX3-Series Brochure (PDF)
The KX III is an enterprise-class KVM-over IP switch that provides 1, 2, 4 or 8 users with BIOS-level remote management of 8, 16, 32 or 64 servers in a single switch. Its high quality video performance, robust security, and enhanced reliability over previous models make the Dominion KX III useful for a range of settings, from Server Rooms to Test Labs. With standard features such as DVI/HDMI/DisplayPort digital video, VGA analog video, audio, virtual media, smart card/CAC, and mobile access, the Dominion KXIII is suitable for both general applications and dynamic broadcast applications.The Raritan KX III features high performance web-based remote management of servers, PCs, laptops and serial devices with virtually any application. Depending on the specific needs of the user, the KVM can be deployed individually, or controlled through a central point with Raritan’s CommandCenter Secure Gateway.
Dominion KX III KVMs and Accessories
Learn More: Raritan Dominion KX3 Brochure
Raritan Dominion KX3 User Manual
Raritan Dominion KX3 Admin Manual
Top 10 Reasons to Choose the Raritan Dominion KX III
- Military Grade Security
Featuring AES & FIPS 140-2 encryption, Common Access Card (CAC) authentication, and IPv6 networking, the KX III lets you safely follow military security mandates and protocols. - One Point, Thousands of Components
The Dominion KX III is easily integrated with the CommandCenter Secure Gateway, allowing each unit to scale and support thousands of enterprise servers. This capability provides you with a "single pane of glass" to access and control all equipment across multiple data centers around the world. - Broad Compatibility
The KX III was built for maximum capability, not compatibility issues. A full suite of CIMs (sold separately) connect the KVM to VGA, DVI, HMDI, DisplayPort, USB, USB with virtual media, Sun, Sun USB and serially controlled servers, including blade server models from HP, IBM, Dell and Cisco. - Versatile Remote BIOS-Level Access (Including Mobile)
The Dominion KX III can be accessed via LAN, WAN, Internet, Mobile, and dial-up, giving flexibility to administrators when they need to troubleshoot, reconfigure, reboot or power cycle servers remotely. - High Quality Video and Audio
Clocking in at 30 frames-per-second with a resolution of up to 1920x1080, the KX III's high definition, digital video performance supports broadcast and other dynamic, video-intensive applications. Plus, a DVI Digital Local Port provides fast, at-the-rack performance when you need it. - Virtual Media over IP
Access to virtual media enables you to perform remote tasks, such as software installation, remote booting and diagnostics, using the widest variety of CD, DVD, USB, internal and remote drives and images. - Redundancy, Redundancy, Redundancy
All Dominion KX III models have dual power supplies and LAN ports with automatic failover. - Mouse in Sync
It's the ultimate plug-and-play: Absolute Mouse Synchronization means you won't need to change server settings. - Rack Efficiency
All but two models (KX3-464 & KX3-864) fit in 1U of rack space, giving you "more bang for your buck". - Cascade your KVMs
All KX III models contain a tiering port that allow you to easily cascade KX III KVM switches.
