1U 19" Rack Mount Monitor Keyboard Drawer w/ 8-Port PS/2 KVM Switch
RKP119-801
The RKP119 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

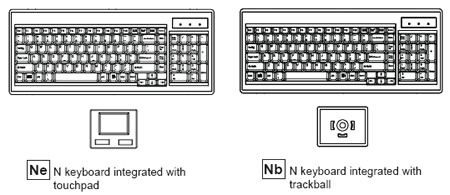

The following keyboard options are available for the RKP119-801:
- 1U 19" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth of 460mm and 500mm respectively
- New enhanced aesthetics with molded front handle
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
Advanced Features with KVM:
- Cascade for use up to 64 servers.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin DB connector at switch side.
RKP119-801 Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (441.6 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Weight | 27.9 lbs. (12.7 kg.) |
| Package Dimensions (H x W x D) | 5.5 x 23.2 x 31.8 in. (140 x 590 x 808 mm.) |
| Package Weight | 38.1 lbs. (17.3 kg.) |
| Environmental | |
| Operating temperature | 0 to 50°C Degree |
| Storage temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration ( 11 ms duration ) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 19" TFT |
| Resolution | 1280x1024 |
| Display color | 16.7 M |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° x 160° |
| Active area | 376x301 |
| Signal Input | VGA |
| Integrated KVM Switch | |
| KVM port | 8 |
| Connector | DB-15 combo connector |
| Connectivity | PS/2 3-in-1 KVM cable, up to 6,10 & 15 feet |
| Local Console | Nil for LCD console drawer version |
| Expansion | Up to 64 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
