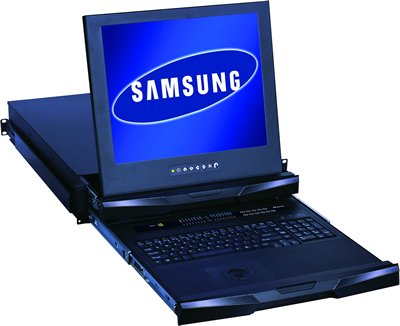

2U 19" Rack Mount Monitor Keyboard Drawer w/ 8-Port USB KVM Switch
RKP219-S801
Discontinued
Replaced by: Cyberview RKP2419-S801
Alternative options: Contact Us
The Cyberview RKP219-S801 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.
The following keyboard options are available for the RKP219-S801:
Cyberview RKP219-S801 Features:
- 2U 19" TFT LCD screen
- Allow viewing through closed glass cabinet door
- Multiple keyboard language selections with either touchpad or trackball
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- (8) 6' KVM cables are included
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
| Product Dimensions (HxWxD) | 3.5 x 17.4 x 23.6 in. (8.8 x 44.2 x 60 cm.) |
| Package Dimensions (HxWxD) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| PC port | 8 |
| Console Port | - |
| PC Selection | OSD menu, hot key, push button |
| LED | 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) |
| On screen display control | Yes |
| Scan Intervals | 5~99sec |
| Keyboard and mouse emulation | PS/2 |
| VGA Resolution (Max.) | 1920x1440 |
| Cat5 Length | N/A |
| Bandwidth | 200Mhz |
| Cascade Level | 8 levels |
| PC Connection | 120/128 |
| Housing | Metal |
| KVM Switch Power Adapter | DC 12V |
