2U 17" Monitor & Keyboard Drawer, Short-depth, w/ 2-Console 8-Port PS/2 KVM

RKP2417-802

$2,405.00$2,108.00
Save $297.00
FREE Shipping on orders over $100
The Cyberview RKP2417-802 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

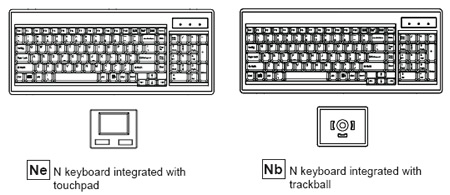

The following keyboard options are available:

Keyboard Options

RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems

RKP2417-802 Features:

  • 2U dual slide 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm (18.9")
  • New enhanced aesthetics with molded front handle
  • 2 post rack mounting available

RKP2417-802 Specifications:

Mechanical
Height 3.5 in (88 mm)
Width 17.4 in (441.6 mm)
Depth18.1 in (480 mm)
Weight44.9 lbs. (20.4 kgs)
Package Dimensions
Height7.5 in (190 mm)
Width23 in (585 mm)
Depth24.4 in (620 mm)
Weight54.6 lbs (24.8 kgs)
Environmental
Operation Temperature0 to 50°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
PowerAuto-sensing 100 to 240VAC, 50 / 60Hz
LCD Screen
Display Size17" TFT
Resolution1280x1024
Display color 16.7 M
Brightness (cd/m2)250
Contrast Ratio1000:1
Viewing Angle160° x 160°
Signal InputVGA
Integrated USB KVM Switch
KVM Port8
Connector DB-15 combo
ConnectivityCombo 4-in-1 KVM cable, up to 6,10 & 15 feet
Local ConsoleLCD console drawer version (up to 1920x1080/1920x1200)
Remote Console
Connector1 x DB 15-pin, VGA
ResolutionUp to 1600x1200
Remote I/ORJ45 via Cat5/Cat5e/Cat6 cable up to 150m
ExpansionUp to 128 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
