Icron Rover 2850 - 2 Port USB 1.1 CAT5e Extender (280 ft) - Line Powered
00-00312
Save $11.75
Icron's USB Rover 2850 (00-00312 or RV2850) extension system is a 2-port USB extender, ideal for use with USB peripherals such as keyboards, mice, interactive white boards, and game controllers without the need for external power adapters.
The USB Rover 2850 product is composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e UTP cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft)*.
USB Rover products operate over standard solid core Cat 5e UTP cable (the same wiring used in Ethernet). The USB Rover 2850 uses technology ideal for extending USB peripherals without the need for additional software for either the computer or the target devices.
* Up to 40m for all USB devices; 85 meters is achievable for most low powered HID USB devices.

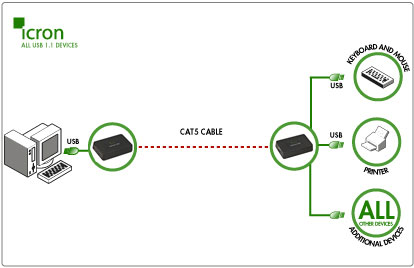

Icron USB Rover 2850 Function Diagram
Icron USB Rover 2850 Features & Benefits
- Supports both Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) throughputs
- Reliable operation with all USB 1.1 and 2.0 devices including hubs
- Plug and play. No software drivers required
- Supports all major operating systems: Windows, Mac OS X, and Linux
- Supplies up to 400mA* to USB devices
- Industrial rated ESD/EFT immunity
- FCC/CE Class B emissions
- 3-year warranty
Rover 2850 (00-00312) Package Contents
- (1) Icron USB Rover 2850 Transmitter (LEX)
- (1) Icron USB Rover 2850 Receiver (REX)
- (1) 6ft / 2m USB Type A to Type B cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 3-Year Standard Warranty
Rover 2850 Resources
Icron Rover 2850 Datasheet (PDF)
Icron Rover 2850 Manual (PDF)
Icron Rover 2850 Quick Start Guide (PDF)
Icron USB Rover 2850 (00-00312) Specifications
| Mechanical | LEX unit | REX unit |
| Height | .87 in. (22 mm) | .87 in. (22 mm) |
| Width | 2.17 in. (55 mm) | 2.17 in. (55 mm) |
| Depth | 3.34 in. (85 mm) | 3.34 in. (85 mm) |
| Connectors | ||
| Upstream | 1 x USB Type B | 1 x RJ-45 |
| Downstream | 1 x RJ-45 | 2 x USB Type A |
| Temperature range | 0°C to 50°C (32°F to 122°F) | |
| Range (over CAT5 UTP Cable) | ||
| Full-Speed and Low-Speed: | Up to 40m (131 ft) | |
| Low-Speed: | Up to 85m (279 ft) | |
| # USB ports (at REX) | 2 | |
| USB device support (connected directly to REX) | Any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) device | |
| Maximum power available to USB at REX | 400mA shared between USB ports when LEX is supplied with 800mA | |
| Regulatory testing | FCC, CE Class B, RoHS, CPSIA, Flammability V-1 | |
This unit is the recommended replacement for the Icron USB Rover 2650 (00-00085G)
