Raloy 1U 19" Widescreen SUN LCD Keyboard Drawer w/ 4-Console 16-Port IP KVM
RWS119-MIP1614
The Raloy RWS119-MIP1614 rack console includes a SUN 1U rackmount featuring a 19" Widescreen Samsung LCD and a 16-port Matrix-Multi-User DB-15 KVM Over IP. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 16 combo 2-in-1 KVM cables designed specifically for the Raloy KVM switches (Product ID: RCB-6). This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
The following keyboard options are available for you to choose from (make sure to select one from the drop down above):
 |  |
| E Option: SUN Keyboard with Touchpad Mouse | B Option: SUN Keyboard with Trackball Mouse |
Raloy RWS119-MIP1614 Features & Benefits:
- 1U rack console with 19" widescreen Samsung Active Matrix TFT LCD panel, high resolution 1440 x 900
- SUN key support including Stop, Cut, Paste, Compose etc
- US and UK keyboard language selections with either touchpad or trackball
- Enhanced aesthetics with new molded front panel and two point lock
- Advanced user profiles and configurable OSD hot key combinations
- Multi lingual on screen display menu
- Mix Legacy PS/2 servers with newer USB & SUN solutions
- Greater distances between your switch and servers allow enhanced data center rack layouts
- Secure IP remote user access across the world wide web
- Efficient system management with simultaneous multi-user access
- Capable of connecting 16 servers per device in 1U
- Multi-platform servers shared by different consoles in cascade connection
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Extended CAT6 cord remote access over 300M
- Provide a diversity of consoles to access servers independently and simultaneously
- Warranty- 24 months Parts & Labor
NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

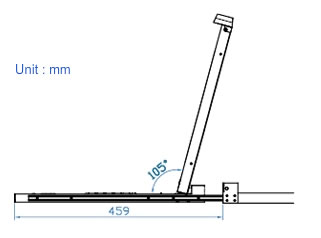

Raloy RWS119-MIP1614 Rackmount LCD Diagram
Raloy RWS119-MIP1614 KVM Switch
Raloy RWS119-MIP1614 Specifications:
Product Dimensions | |
| Product (W x D x H) | 17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm. |
Packing (W x D x H) | 22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm. |
Net Weight | 53 lb. / 24 kg. |
Gross Weight | 72 lb. / 33kg. |
Samsung LCD | |
Diagonal Size | Wide 19" TFT |
Max Resolution | 1152 x 900 (Direct) 1440 x 900 (Native) |
Brightness (cd/m2) | 300 |
Contrast Ratio (Typical) | 1000 : 1 |
Viewing Angle (H / V) | 160° / 160° |
Display Area | 16.6 x 10 in.(408 x 255mm.) |
Tr Response Time (ms) | 1.3 |
LCD Panel MTBF (hrs) | 50,000 |
VGA Signal Input | Analog RGB, 0.7Vp-p |
Sync. Type | Separate H/V, Composite, SOG |
Plug & Play DDC | EDID 1.3 |
KVM Switch | |
| Simultaneous Users | 1 x local, 2 x CAT5/6 remote, 1 x IP remote |
KVM Port | 16 x DB-15 |
Connectivity | Raloy 4-in-1 KVM cable, up to 6,10 & 15 feet |
Local Console | Monitor port: 1 x DB-15 VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse |
| CAT 5/6 Remote Console Monitor port: | Monitor port: DB-15 VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse; Remote i/o: RJ45 via CAT5 / CAT5e / CAT6 cable up to 1,000 feet |
| IP Remote Console User Management: | User Management: 15-user login, 1 x active user; Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR; Resolution: Up to 1600 x 1200; Browser: IE, Firefox, Safari, Netscape; IP Access: 1 x RJ45 Ethernet, 1 DB-9 serial &1 x USB port; Remote I/O: RJ45 via CAT5 / CAT5e / CAT6 cable up to 1,000ft |
Expansion | Up to 128 servers by 8-level cascade |
Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS |
Module Options | |
Keyboard | 104 key notepad SUN keyboard with full numerical pad that incorporates SUN keys including Stop, Cut, Paste, Compose, Copy and Help. US & UK layout. USB support. |
Mouse | 3 button Glidepointª touchpad or trackball with PS/2 or USB support |
Power | |
Input | 100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord |
Option DC | 12V/24V/48V DC input |
Consumption | Max. 24 Watt, Standby 5 Watt |
Regulatory Approval | FCC, CE |
Environmental | |
Operation | 32° - 122°F (0° - 50°C) |
Storage | 23° - 140°F (-5° - 60°C) |
Relative Humidity | 5~90%, non-condensing |
Shock | 10G acceleration (11ms duration) |
Package Contains | 1 x RWS119- MIP1614 Rack Console, 16 x RCE-6 cables, 2 x User Manual, 1 x Power Cord, 1, 2 x Mounting Bracket, 8 x M4*10mm screw, 4 x M3.2*4.5mm screw |
| Additional Contents | 2 x Receiver; 2 x 12V Adapter; 2 x RCE-6 Combo 4-in-1 KVM Cable |
