Raloy 1U 19" Widescreen SUN LCD Keyboard Drawer w/ 2-Console 16-Port CAT5 KVM

The Raloy RWS119-MU1602 rack console includes a SUN 1U rackmount featuring a 19" Widescreen Samsung LCD and a 16 port Matrix Multi-User CAT5 / CAT6 KVM switch allowing up to 4 simultaneous users. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 8 USB dongles designed specifically for Raloy KVM Switches (Product ID: RDG-100S).This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

The following keyboard options are available for you to choose from (make sure to select one from the dropdown above):

E Option: SUN Keyboard with Touchpad Mouse	B Option: SUN Keyboard with Trackball Mouse

Raloy RWS119-MU1602 Features & Benefits:

• 1U rack console with 19" widescreen Samsung Active Matrix TFT LCD panel, high resolution 1440 x 900
• SUN key support including Stop, Cut, Paste, Compose etc

• US and UK keyboard language selections with either touchpad or trackball

• Enhanced aesthetics with new molded front panel and two point lock

• Provide diversity of consoles to access servers independently and simultaneously

• Use of the RJ45 CAT6 interface allows for a higher number of ports in smaller density

• Greater distances between your switch and servers allow enhanced data center rack layouts

• Multi-lingual on-screen display menu

• Advanced user profiles and configurable OSD hot key combinations

• Direct support for SUN Micro 1152 x 900 native resolution

• Efficient system management with simultaneous multi-user access

• Capable of connecting 16 servers per device in 1U

• Support DVI-USB, VGA-USB & VGA-PS/2 server interface

• Increased distance of 40m between your server & KVM switch

• Enhanced CAT6 cable management w/ remote access over 300m
• Warranty- 24 months Parts & Labor

NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

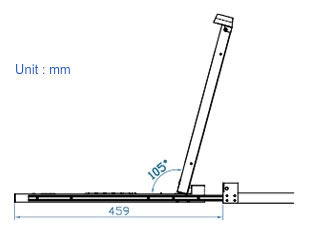

Raloy RWS119-MU1602 Rackmount LCD Diagram

Raloy RWS119-MU1602 KVM Switch View

Raloy RWS119-MU1602 Specifications:
