Raloy 1U 19" Widescreen SUN LCD Keyboard Drawer w/ 2-Console 16-Port CAT6 IP KVM
RWS119-UIP1602
The Raloy RW119-UIP1602 rack console features a 19" Widescreen Samsung LCD and an integrated CAT5 / CAT6 -16 port dual-user KVM Over IP Switch. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 8 USB Dongles designed specifically for the Raloy CAT6 KVM switches (Product ID: RDG-100S). CAT6 cable is not included. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
The following keyboard options are available for you to choose from (make sure to select one from the drop down above):
 |  |
| E Option: SUN Keyboard with Touchpad Mouse | B Option: SUN Keyboard with Trackball Mouse |
Raloy RWS119-UIP1602 Features & Benefits:
- Samsung Grade A Wide 19" Industrial TFT LCD panel, high resolution 1440 x 900
- Combo interface either PS/2 or USB input to the LCD drawer
- Keyboard available in 13 International languages with either touchpad or trackball
- Enhanced aesthetics with new molded front panel and two point lock
- Advanced user profiles and configurable OSD hot key combinations
- Multi-lingual on screen display menu
- Dual power with failover
- UL Approval for LCD Console
- Combo CAT6 KVM with either 16 ports in 1U
- Up to 40 meters between your servers & KVM ports
- IP Remote access across the world wide web
- Cascade switches up to 8 levels & mix switches between CAT6 & combo DB-15 KVM
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Warranty- 24 months Parts & Labor
NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

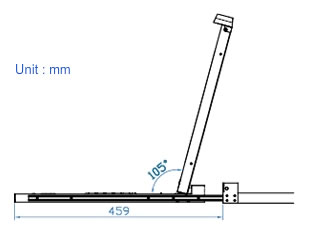

Raloy RWS119-UIP1602 Rackmount LCD Diagram
Raloy RWS119-UIP1602 KVM Switch Back View
Raloy RWS119-UIP1602 Specifications:
Product Dimensions | |
Product (W x D x H) | 17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm. |
Packing (W x D x H) | 22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm. |
Net Weight | 53 lbs. / 24 kg. |
Gross Weight | 72 lbs. / 33 kg. |
Samsung LCD | |
Diagonal Size | Wide 19" TFT |
Max Resolution | 1152 x 900 (Direct) 1440 x 900 (Native) |
Brightness (cd/m2) | 300 |
Contrast Ratio (Typical) | 1000 : 1 |
Viewing Angle (H / V) | 160° / 160° |
Display Area | 16.6 x 10 in.(408 x 255mm.) |
Tr Response Time (ms) | 1.3 |
LCD Panel MTBF (hrs) | 50,000 |
VGA Signal Input | Analog RGB, 0.7Vp-p |
Sync. Type | Separate H/V, Composite, SOG |
Plug & Play DDC | EDID 1.3 |
KVM Switch | |
| Simultaneous Users | 1 x local, 1 IP remote |
KVM Port | 16 x RJ45 |
Local Console | Monitor port: 1 x DB-15 VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse |
| IP Remote Console | Connector: RJ45 Ethernet, User Management: 15-user login, 1x active user, Network portocol: DHCP / BOOTP / DNS, Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR, Resolution: Up to 1600 x 1200, Browser: IE, Firefox, Safari, Netscape Others: Serial port, virtual media via USB |
Expansion | Up to 256 servers by 8-level cascade |
Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS |
| Management | Multilingual OSD: English, French, German, Spanish, Italian, Russian, Simplified Chinese, Japanese; Hotkey combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win; Security Password enable & disable, up to 8 user profile for port access; PC Selection: Front button, OSD menu & hotkey |
Module Options | |
Keyboard | 104 key notepad SUN keyboard with full numerical pad that incorporates SUN keys including Stop, Cut, Paste, Compose, Copy and Help. US & UK layout. USB support. |
Mouse | 3 button Glidepointª touchpad or trackball with PS/2 or USB support |
Power | |
Input | 100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord |
Option DC | 12V/24V/48V DC input |
Consumption | Max. 24 Watt, Standby 5 Watt |
Regulatory Approval | FCC, CE |
Environmental | |
Operation | 32° - 122°F (0° - 50°C) |
Storage | 23° - 140°F (-5° - 60°C) |
Relative Humidity | 5~90%, non-condensing |
Shock | 10G acceleration (11ms duration) |
Package Contains | 19" 1 X RWS119-UIP1602 Rack Console, 8 x RDG-100S Dongles, 4 x M3.2*4.5mm screw, 8 x M4 x 10mm screw, 1 x bracket set, 1 x User Manual, 1 x Power Cord |
