2-Port Dual-head Secure Pro DP to HDMI KVM Switch with KB/Mouse USB emulation and CAC port
SDHN-2D-P
Save $94.50

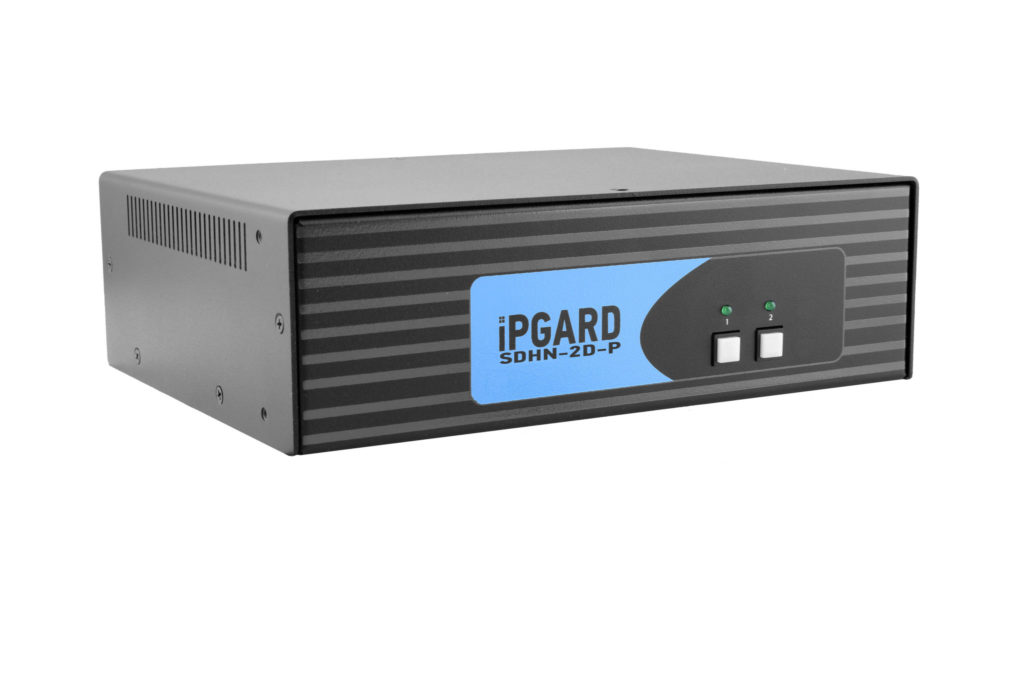

SDHN-2D-P: Ultra-Secure KVM Switching
The SDHN-2D-P is a 2-port, dual-head DisplayPort to HDMI Secure KVM switch with a dedicated CAC port and support for 4K (3840×2160 @ 30Hz) resolution video.The SDHN-2D-P allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with HDMI monitors. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.
With the SDHN-2D-P, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SDHN-2D-P offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDHN-2D-P ensures no data is leaked between secure ports and the outside world.
The SDHN-2D-P has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDHN-2D-P.

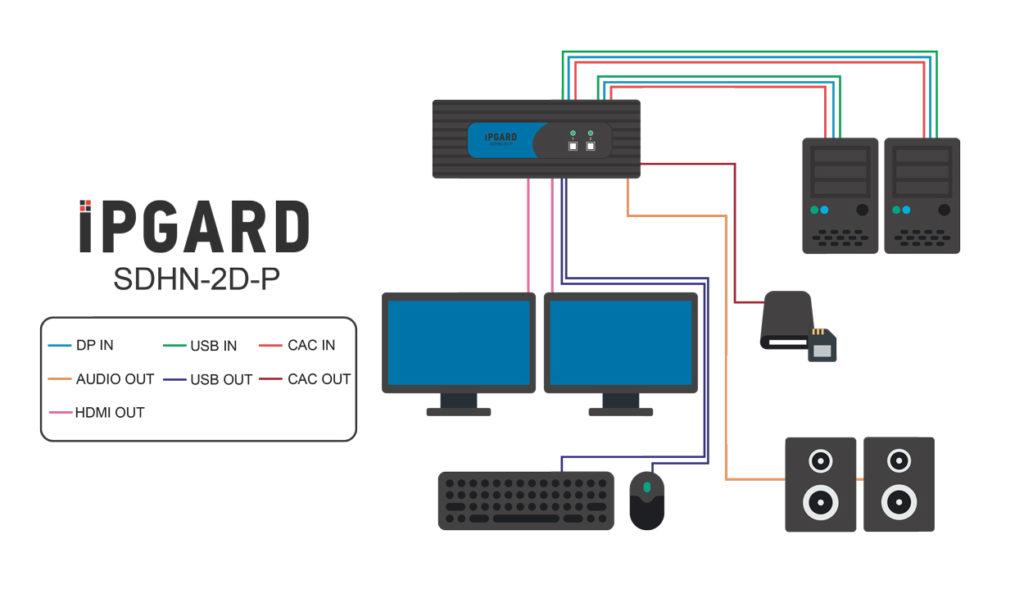

SDHN-2D-P Application Diagram
Key Features
- Supports Windows, Mac and Linux OS
- Dual-head DisplayPort to HDMI interface.
- Video interface supports up to 4K (3840×2160 pixels @ 30Hz)
- Supports Balanced speakers output and switching
- Advanced configurable CAC port
- Front panel tactile buttons with LED indicator
- Secure Keyboard & Mouse Emulation
- Secure EDID Learn And Video Emulation
- External power supply - Level VI efficiency
Security Features
- Non-reprogrammable ROM
- Active Anti-tamper switches
- Long-life internal Anti-tampering battery
- External tamper-evident seals
- Keyboard, Mouse and Video emulation
- Absolute isolation - No data leakage between ports
- Certified by NIAP, the latest Common
- Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)
> View the NIAP certification and validation documents here.
Why Secure KVM?
Traditional non-secure KVM switches offer centralized control of multiple computers, but offer no absolute isolation between them. This exposes systems to the possibility of malicious damage and disruption, and acquisition of sensitive data from one computer to another.
IPGard's Secure KVM Switch is designed for use in secure defense and intelligence applications where sensitive data must be protected. The Switch is NIAP PP 3.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switch prevents data leakage between computers that can run at different security levels, and eliminate any potential cyber threat.
Keyboard & Mouse Emulation
The Secure KVM emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities.
Secure EDID Learn And Video Emulation
The SDHN-2D-P simulates a generic EDID as default, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit's video emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected monitors during switching operations. Upon activating the KVM, the unit will quickly and automatically learn new EDID for specific monitors. The unit then prevents unwanted and unsecure data from getting transmitted through DDC lines by means of secure EDID learning and emulation.
CAC Support
Many secure KVM switches support CAC devices, such as smart-card and biometric readers, bolstering security when using the device. However, IPGard takes CAC security even further, allowing users to assign specific peripheral devices to the SDHN-2D-P's CAC port. Once a peripheral device has been registered by an authenticated admin, users can then switch the connection between that device and the PC's along with KVM switching.
SDHN-2D-P Package Includes
- 1 x 2-Port DH D2H CAC Secure KVM w/ Audio, PP 3.0
- 1 x PS12V2A power supply
- Cables not included:
- Per target system: 1 x DP to HDMI cable, 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable

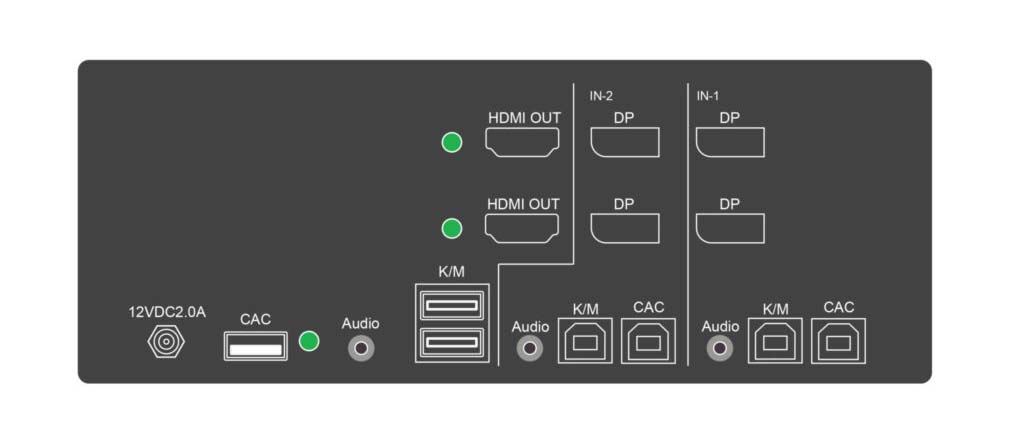

SDHN-2D-P Back
SmartAVI SDHN-2D-P Specifications
Learn More: SmartAVI SDHN-2D-P Brochure (PDF)
SmartAVI SDHN-2D-P Manual (PDF)
| VIDEO | |
|---|---|
| Format | DP, HDMI |
| Input Interface | (4) DP 20-pin female |
| Output Interface | (2) HDMI 19-pin female |
| Resolution | Up to 4K (3840 x 2160 @ 30Hz) |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| USB | |
| Input Interface | (4) USB Type-B |
| Output | (2) USB 1.1 Type A for KM Devices |
| Emulation | Keyboard & Mouse |
| CAC | Configurable CAC port |
| AUDIO | |
| Audio Input | (2) 3.5mm stereo audio |
| Audio Output | (1) 3.5mm stereo audio |
| CONTROL | |
| Front Panel | Front panel SELECT buttons |
| OTHER | |
| Power | External 100-240 VAC/12VDC2A |
| Dimensions | 8.8" W x 2.63" H x 6.69" D |
| Weight | 3.85 lbs |
| Approvals | NIAPP PP 3.0, UL, CE, ROHS Compliant |
| Operating Temp. | +32 to +104°F (0 to +40°C) |
| Storage Temp. | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |
UPC 68691122286
EAN 068691122286
Answer: Thank you for your inquiry.
All NIAP-certified Secure KVM Switches, like this SmartAVI SDHN-2D-P, are designed to filter out and block any non USB-HID (USB Human Interface Device), such as transparent USB Hubs, for security reasons; You would not be able use the USB Hub part of your keyboard with a NIAP-certified KVM. For more information on features & benefits of NIAP Secure KVMs, please refer to our Secure KVM Switch Guide.
That being said, since the Das Keyboard Prime 13 appears to have separate USB connections for the Keyboard & Hub, you should be able connect the keyboard to a non-NIAP certified KVM switch that features USB Peripheral Device Hub ports - Plug the Keyboard into the KVM Keyboard USB port, and the Keyboards USB Hub port into the KVM Switches USB Hub port. For a similar, but not NIAP-certified, KVM Switch, you may be interested in the SmartAVI DPN-4DUO. Note, since the DPN-4DUO KVM switch does not explicitly states support for this model of the Das Keyboard, we are unable to guarantee compatibility - you may also want to contact Das Keyboard to see if they know of any compatibility issues with this model of keyboard and KVM switches.
Please let us know if there is anything else we can help you with!
