30m 4K HDMI Active Optical Cable

VE873

$425.00$361.25
Save $63.75
Model: 100ft (30m)
FREE Shipping on orders over $100

The VE873 HDMI Active Optical Cable utilizes ATEN's unique AOC+ technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. This EMI-resistant optical cable comes in 30m cable lengths with full support of 1080p resolutions that can withstand extreme conditions while improving speed and distance. It's fully compliant with HDMI standards and provides support for high-speed transmission, 3D and 4K x 2K resolutions. This cable is the ideal solution for extending the reach of your digital signage in various settings, such as in large shopping malls and hospital facilities.

Product Features

  • Converts electrical data signals to optical signals
  • HDMI (3D, 4kx2k,Deep Color); HDCP Compatible
  • Superior video quality - up to 4096 x 2160
  • RF/EMI free for clear signal transmission
  • Easy to install with optical fiber cable
  • Powered remote unit via USB Cable
  • High data transfer rates of 10.2 Gbps
  • Plug-and-play - no software required

Package Includes

  • 1x VE873 HDMI Active Optical Cable
  • 1x User Instructions

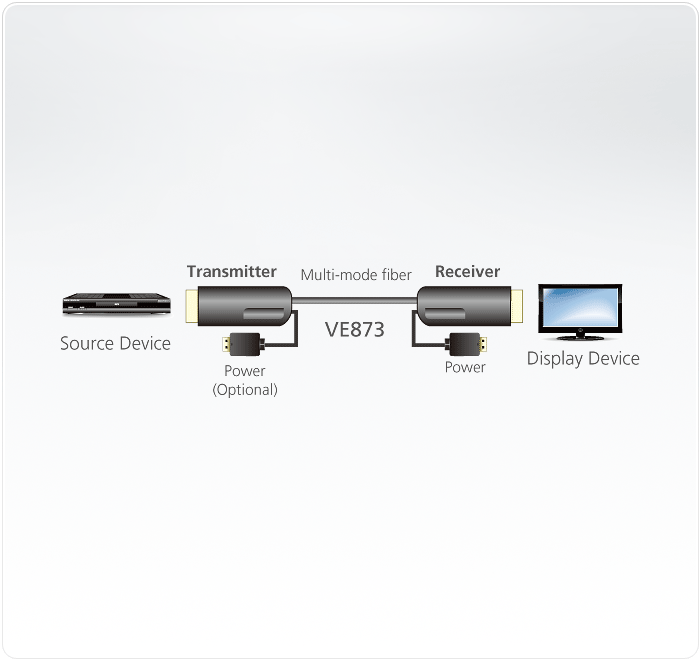

Product Use Diagram

Product Specifications

Video Input
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video Output
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video
Max Data Rate10.2 Gbps
Max Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max Resolutions/DistanceUp to 4K@30m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female
Output1 x HDMI Type A Female
Power
Connectors1 x DC Jack
Consumption5V DC, 1W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.55 lb (0.25 kg)
UPC / EAN Barcode icon
UPC 672792005336
EAN 0672792005336
