50m 4K HDMI Active Optical Cable
VE874
Save $112.50
Model: 164ft (50m)

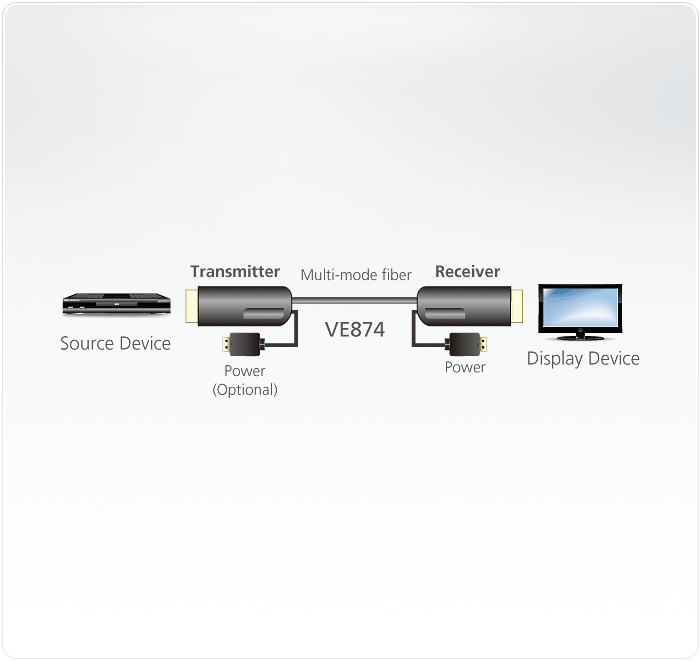

The VE874 HDMI Active Optical Cable utilizes ATEN's unique AOC+ technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. This EMI-resistant optical cable comes in 50m cable lengths with full support of 1080p resolutions that can withstand extreme conditions while improving speed and distance. It's fully compliant with HDMI standards and provides support for high-speed transmission, 3D and 4K x 2K resolutions. This cable is the ideal solution for extending the reach of your digital signage in various settings, such as in large shopping malls and hospital facilities.
Product Features
- Converts electrical data signals to optical signals
- HDMI (3D, 4kx2k,Deep Color); HDCP Compatible
- Superior video quality - up to 4096 x 2160
- RF/EMI free for clear signal transmission
- Easy to install with optical fiber cable
- Powered remote unit via USB Cable
- High data transfer rates of 10.2 Gbps
- Plug-and-play - no software required
Package Includes
- 1x VE874 HDMI Active Optical Cable
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female |
| Impedance | 100Ω |
| Video | |
| Max Data Rate | 10.2 Gbps |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible; Consumer Electronics Control (CEC) |
| Max Resolutions/Distance | Up to 4K@50m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female |
| Output | 1 x HDMI Type A Female |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5V DC, 1W |
| Environmental | |
| Operating Temperature | VE801R: 32°-104°F (0°-40°C) |
| Storage Temperature | VE801R: -4°-140°F (-20°-60°C) |
| Humidity | VE801R: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | |
| Dimensions (L x W x H) |
UPC 672792006180
EAN 0672792006180
