Icron Ranger 2212 - 2 Port USB 2.0 CAT5e Extender (330 ft)

00-00252

$399.00

Discontinued
Replaced by: Icron Ranger 2312
Alternative options: Contact Us

USB Type: USB 2.0
Extension via: CatX (up to 330 ft)
Ports: Extend up to 2 USB Devices

The Icron USB Ranger 2212 (00-00252) is a two port, remote powered, USB 2.0 extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of Cat 5 cabling. The Ranger 2212 delivers standard 500mA USB power over the Cat 5 extension link to the two port remote hub, eliminating the need to locate the remote USB devices near an AC power outlet and greatly increasing the ease of deployment for USB extension in industrial, medical, commercial and other applications.

The USB Ranger 2212 (00-00252), and the Ranger 2200 family of products are powered by ExtremeUSB, enabled by Icron's LionsGate USB Extension ASIC. ExtremeUSB provides true USB 2.0 extension at up to 480Mbps over a variety of media, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2212 is compatible with all leading operating systems, and supports all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

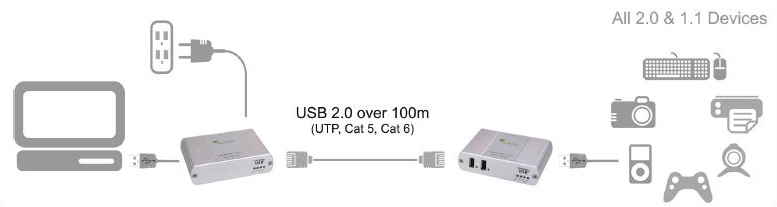

Icron USB Ranger 2212 (00-00252) Function Diagram
Icron USB Ranger 2212 (00-00252) Function Diagram

Icron USB 2.0 Ranger 2212 Features

  • Extends USB 2.0 high-speed and USB 1.1 (low speed, full speed) dvices up to 100m over Cat5 cable.
  • Supports all USB device types: control, interrupt, bulk and isochronous at up to 480Mbps.
  • True plug and play, ready to operate right out of the box. No new driver installation required.
  • Supports all major operating systems including Windows, Mac OS, and Linux.
  • Integrated hub provides four remote USB 2.0 ports. Number of devices can be increasing using additional USB hubs.
  • Remote unit provides standard 500mA to each USB port.
  • Ideal for a wide variety of USB devices from: printers, scanners, hard drives, and audio devices to touch screens, web cams, and game controllers.


Ranger 2212 (00-00252) Package Contents

Whats Included In the Box? Icron Ranger 2212 (00-00252) Package Contents

  1. (1) Icron USB 2.0 Ranger 2212 Transmitter (LEX)
  2. (1) Icron USB 2.0 Ranger 2212 Receiver (REX)
  3. (1) 6ft / 2 meter USB 2.0 Cable
  4. (1) Power Adapter and US-specific Power Cord
  5. (1) Quick Start Guide
  6. (1) 2-Year Standard Warranty

Ranger 2212 Resources

Icron USB 2.0 Ranger 2212 (00-00252) Resources Icron Ranger 2212 Datasheet (PDF)
Icron Ranger 2212 Manual (PDF)
Icron Ranger 2212 Quick Start Guide (PDF)
