Adder AdderLink INFINITY Dual Extender Transmitter

ADDERLink Infinity ALIF2002T is a high performance Dual-link or Dual-monitor DVI, USB and Audio Transmitter for the Adder Infinity Digital KVM Extension / Matrix solution. ALIF2002T transmitter requires at least one ALIF2000R receiver to operate.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

With intelligent video encoding this product has the capability to process full screen moving video in real time. You can configure your network topology to best suit your needs by extending one computer to one user by connecting your receiver and transmitter via CATx cable or fiber. Distance can be unlimited with the use of daisy chaining standard network cables and switches that will deliver IP traffic up to 330 feet (100 meters) away each. Because of the efficient manner in which ALIF 2002T constructs data for IP transmission you can make use of standard wireless routing to connect these receiver and transmitter units to your network.

Adder ALIF2002T Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

•

  Perfect digital video, real time control

  Uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60hz with real time control. Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.



•

  Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity dual also offers the option of up to 6.21mi (10km) distances with fiber.
•

  Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.



•

  USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure



•

  Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

•

  Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

•

  Flexible mounting options

  Adder Infinity Dual units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF2002T Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY Dual as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY Dual also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

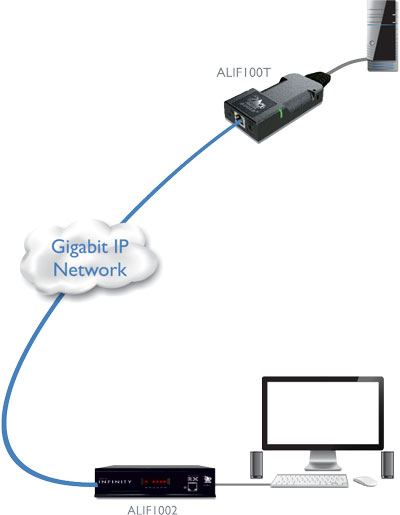

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF2002T Specifications

This part is also known as Adder ALIF2002T-US, ALIF 2002T, and ALIF-2002T.
