1U 18.5" (1366x768) Ultra Short Depth Dual Rail WideScreen LCD Console (USB / VGA)
CL3100NX
Save $323.53
Aten Ultra-Short-Depth Rack Console Series
 | | | |||
| Model Name | CL3800NW | CL3800NX | CL3700NW | CL3700NX | CL3100NX |
| Dual Rail/ Single Rail | Dual Rail | Dual Rail | Single Rail | Single Rail | Single Rail |
| Video Interface | HDMI/ DVI/ VGA | HDMI/ DVI/ VGA | HDMI | HDMI | VGA |
| 18.5" LCD Resolution | 1920x1080 | 1366x768 | 1920x1080 | 1366x768 | 1366x768 |
| Supported Rack Depth (cm) | 45~105 | 45~105 | 42~105 | 42~105 | 42~105 |
Aten CL3100NX USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
Features & Benefits
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design and a 18.5" LED-backlit LCD monitor allows you to work in narrow spaces
- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
- Front USB 2.0 Pass-through port for peripheral USB devices
Ultra Short Depth
The short-depth design fits all 19" EIA equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
Up to 1366x768 Resolution
Also available - Full HD (1080p) Version
Supports superior video quality up to 1366 x 768 @ 60H. The CL3100's widescreen LCD monitor ensures excellent video quality and provides ample viewing area.

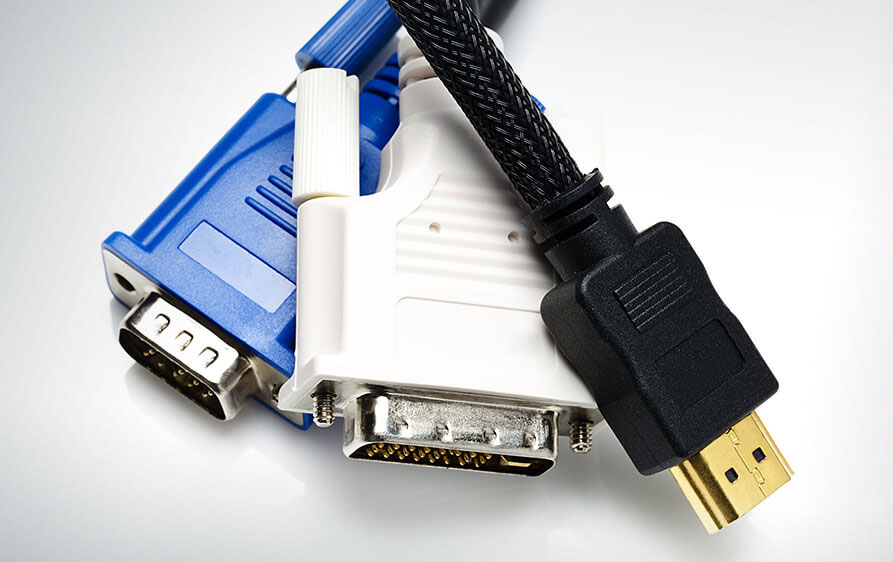

Supports Legacy Interfaces, VGA, USB, Audio
The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

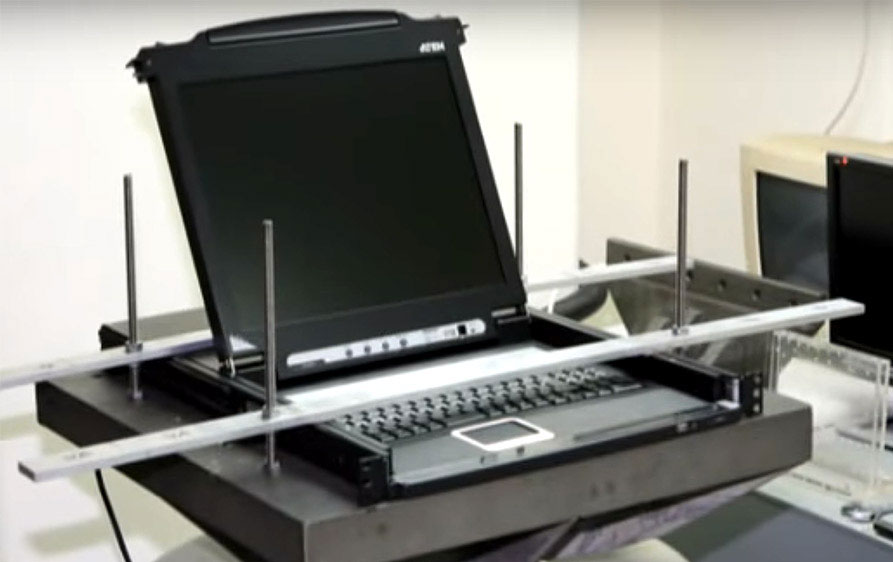

Fully Tested for Robust Vibration Environments
Every ATEN LCD console has passed strict environmental tests to ensure quality and reliability.
LED illumination light
The exclusive LED illumination light was designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions.
Aten CL3100 Applications
With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Limited space telecom, broadcasting and surveillance server rooms
Broadcast OB Vans
Portable Rack Mount Cases
Aten CL3100NX Package Contents
- (1) CL3100NX LCD KVM Console
- (1) Integrated Rack Mount Kit
- (1) 6ft USB, VGA, Audio KVM Cable
- (1) Firmware Upgrade Cable
- (1) Power Cord
- (1) 2-Year Warranty
Aten CL3100 Resources
Aten CL3100NX Datasheet (PDF)
Aten CL3100NX Manual (PDF)
Aten CL3100NX Quick Start Guide (PDF)
Aten CL3100NX CAD Drawing (PDF)
Aten CL3100NX Specifications
| Computer Connections | 1 | |
| Console Selection | Hotkey | |
| Connectors | ||
| External Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) | |
| KVM Ports | 1 x SPHD Female (Yellow) 1 x 3.5mm Audio Jack Female (Green) | |
| USB Port | 1 x USB Type A Female | |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) | |
| Power | 1 x 3-prong AC Socket | |
| Switches | ||
| Reset | 1 x Semi-recessed Pushbutton | |
| Firmware Upgrade | 1 x Slide | |
| Power | 1 x Rocker | |
| LCD Power | 1 x Pushbutton | |
| LCD Adjustment | 4 x Pushbutton | |
| LEDs | ||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) | |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | |
| Video | ||
| Input Video Resolution | 1920 x 1200 @ 60 Hz, DDC2B | |
| LCD Panel Spec | ||
| LCD Module | 18.5" TFT-LCD | |
| Resolution | 1366 x 768 @ 60 Hz | |
| Pixel Pitch | 0.3 mm x 0.3 mm | |
| Response time | 5 ms | |
| Viewing Angle | 170° (H), 160° (V) | |
| Contrast Ratio | 1000 : 1 | |
| Support Color | 16.77M colors | |
| Luminance | 250 cd/mē | |
| Emulation | ||
| Keyboard / Mouse | USB | |
| Maximum Input Power Rating | 100-240V AC; 50-60Hz; 1A | |
| Power Consumption | AC110:13.8W:80BTU AC220:14.1W:81BTU | |
| Environmental | ||
| Operating Temperature | 0-40°C | |
| Storage Temperature | -20-60°C | |
| Humidity | 0 - 80% RH, Non-condensing | |
| Physical Properties | ||
| Housing | Metal + Plastic | |
| Weight | 9.07 kg ( 19.98 lb ) | |
| Dimensions (L x W x H) | 48.06 x 51.42 x 4.28 cm (18.92 x 20.24 x 1.69 in.) | |
| Body Dimensions(L x W x H) | 44.92 X 46.74 X 4.28 cm (17.69 x 18.40 x 1.69 in.) | |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
UPC 672792008771
EAN 0672792008771
