DVI USB Dongle for Cat6 KVM
DG-100SD
Save $13.00
Model: DVI USB
The DG-100SD is a DVI USB Dongle for connecting a source computer to a CyberView Cat6 KVM switch (stand-alone or integrated into a CyberView Rack Console Drawer).

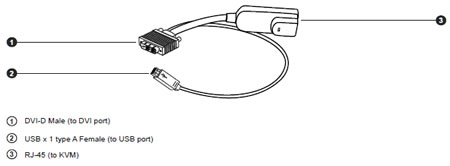

DG-100SD DVI USB Dongle Diagram
DG-100SD Features:
- Connect Cat5/5e/6 cabling from the switch to the keyboard, video & mouse ports of the target server
- Increased distance of up to 132 ft.
- Max resolutions support of 1920 x 1080 (16:9) and 1600 x 1200 (4:3)
- Provide simple plug-n-play installation to any USB / SUN / iMAC servers
- Reduces clutter of multiple cables between tiers
Question: Is this dongle also compatible with the N117-U1602 with the standard display? Or does it require the DVI Display option?
Answer: Thank you for your inquiry. This dongle will work with the N117-U1602, but it would require a DVI connection (on the attached server).
There is, however, a USB dongle with a VGA connection (for the attached server) available: https://www.kvm-switches-online.com/dg-100s.html.
Either dongle will attach to the N117-U1602 via a CAT5 cable (not supplied) and is not dependent on the N117's display type.
Question: When using this dongle, is there any software that is required on the server? Can I use these on machines that have no OS (BIOS only)?
Answer: Thank you for your inquiry. The KVMs that use these dongles are a hardware based solutions, that require no software. As long as the machines meet the specifications (USB/DVI), and they are attached to a compatible KVM, they should operate with bios level access.
Question: Is the DG-100SD dongle compatible with the KX2-116 KVM
Answer: Thank you for your inquiry. Unfortunately, the DG-100SD is a proprietary dongle for CyberView KVM switches. Additionally, the Raritan KX II series of KVM switches also uses a proprietary dongle, the Raritan Computer Interface Module (CIM).
You can view a number of the Raritan CIMs here: https://www.kvm-switches-online.com/dkx2-cim.html.
Question: What is the HTS code for DG-100SD?
Answer: Thank you for your inquiry,
The HTS code (Harmonized Tariff Schedule) for CyberView DG-100SD is 8544.42.2000
