UltraView F15 - Professional and Versatile 15" 1080p LED Monitor

F15

$1,390.00

Aspect Ratio: 16:9 (FHD)

16:9 (4K / FHD)
16:9 (FHD)
16:10 (1920x1200)
16:10 (1440x900)
4:3
+ Compare Family

Monitor Types:

Standard Aluminum
Front Bezel

NEMA 4 / IP65
Protection

Aluminum
Front Cover

Universal
Open Frame

Model	Aspect Ratio	Screen Size
Standard Aluminum Front Bezel
AP-K55	16:9 (4K / 1080p)	55"
AP-K43		43"
AP-K32		32"
AP-K23		23"
AP-K17		17"
AP-K15		15"
AP-F21	16:9 (1080p)	21"
AP-F17		17"
AP-F15		15"
AP-X24	16:10 (1920x1200)	24"
AP-X17	16:10 (1920x1200)	17"
AP-W19	16:10 (1440x900)	19"
AP-20	4:3 (1600x1200)	20"
AP-19	4:3 (1280x1024)	19"
AP-17	4:3 (1280x1024)	17"
AP-15	4:3 (1024x768)	15"
AP-12	4:3 (800x600)	12"
AP-10		10"
AP-8		8"
AP-6	4:3 (640x480)	6.5"

Standrd Aluminum Front Bezel with NEMA 4 / IP65 Protection
NAP-K55	16:9 (4K / 1080p)	55"
NAP-K43		43"
NAP-K32		32"
NAP-K23		23"
NAP-K17		17"
NAP-K15		17"
NAP-F21	16:9 (1080p)	21"
NAP-F17		17"
NAP-F15		15"
NAP-X24	16:10 (1920x1200)	24"
NAP-X17	16:10 (1920x1200)	17"
NAP-W19	16:10 (1440x900)	19"
NAP-20	4:3 (1600x1200)	20"
NAP-19	4:3 (1280x1024)	19"
NAP-17	4:3 (1280x1024)	17"
NAP-15	4:3 (1024x768)	15"
NAP-12	4:3 (800x600)	12"
NAP-10		10"
NAP-8		8"
NAP-6	4:3 (640x480)	6.5"

Aluminum Front Cover
DP-K55	16:9 (4K / 1080p)	55"
DP-K43		43"
DP-K32		32"
DP-K23		23"
DP-K17		17"
DP-K15		17"
DP-F21	16:9 (1080p)	21"
DP-F17		17"
DP-F15		15"
DP-X24	16:10 (1920x1200)	24"
DP-X17	16:10 (1920x1200)	17"
DP-W19	16:10 (1440x900)	19"

Universal Open Frame
DP-K55	16:9 (4K / 1080p)	55"
OP-K43		43"
OP-K32		32"
OP-K23		23"
OP-K17		17"
OP-K15		17"
OP-F21	16:9 (1080p)	21"
OP-F17		17"
OP-F15		15"
OP-X24	16:10 (1920x1200)	24"
OP-X17	16:10 (1920x1200)	17"
OP-W19	16:10 (1440x900)	19"

Screen Size: 15 in

Info
Accessories
Related
Questions
Reviews

UltraView F15 series 15" FHD LED monitor supports 1920 x 1080 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.

F15 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller and SDI Input. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.

As a versatile 1080p monitor, F15 is meticulously designed to meet professional and environmental demands including IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panel-mount, VESA-mount, Universal-mount and Desktop stand.

With over 22 years' production experience, the F15 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

See Detailed KVM Layout

UltraView F15 Features & Benefits

15" LED, 1920 x 1080 native FHD resolution
16.7 M colors / 300 cd/m² brightness
1000 cd/m² sunlight readable panel available ( option )
PIP Sub-screen & PBP Dual-screen viewing efficiency
DVI-D + VGA video input
Video decoding capability up to 1080p ( option )
Rugged structure ensures high mobility
IP65 front protection ( NAP option )
Professional-use durability & around-the-clock operation
2-year standard warranty ( upgradable up to 5 years )

UltraView F15 Models

Standard Brightness (300 cd/m²)

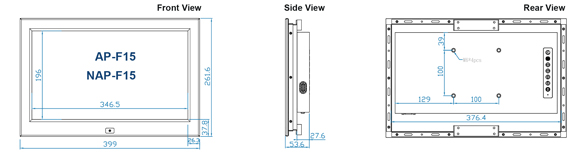

6mm aluminum front bezel

AP-F15

6mm aluminum front bezel NEMA 4 / IP65 front protection

NEMA 4 / IP65 front protection

NAP-F15

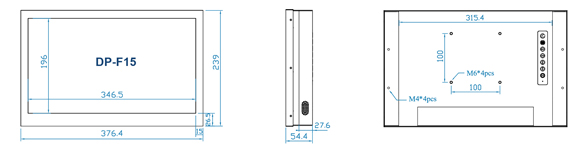

Aluminum front cover

DP-F15

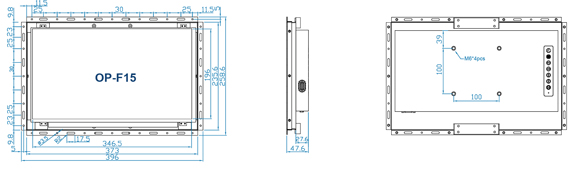

Universal open frame

OP-F15

MP-F15

Industrial Display Kit

FHD 15" LED
LCD controller
AC power

Sunlight Readable Brightness (1,000 cd/m²)

6mm aluminum front bezel

HAP-F15

6mm aluminum front bezel NEMA 4 / IP65 front protection

NEMA 4 / IP65 front protection

HNAP-F15

Aluminum front cover

HDP-F15

Universal open frame

HOP-F15

UltraView F15 Options

Video Management & Transmission over Network

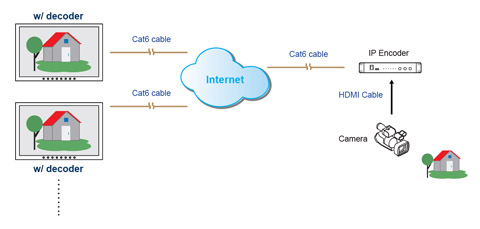

Embedded HDMI Decoder Module 1080p over IP

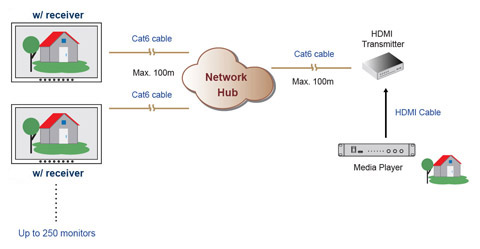

Embedded HDMI Extender Module 1080p over network

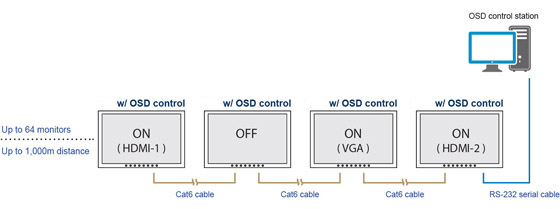

Embedded Multi Monitor OSD Control Module over serial

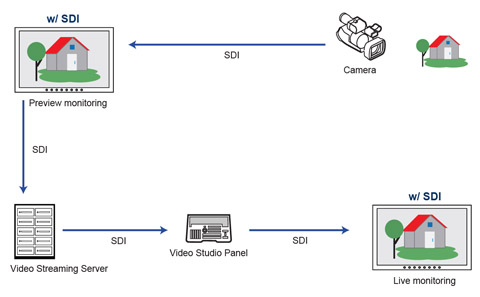

Embedded 3G / HD / SD-SDI Input Module
Embedded Brightness Dimming Module
HDMI 1.4

Bezel & Frame Customization

Dimension
Color & Treatment
Screen Printing
Stainless Steel Bezel

Touchscreen & Glass Protection

Projected Capacitive 10-point Touch
5-Wire Resistive 1-point Touch
Anti-reflective Glass
Vandal Proof Glass

DC Power

12V / 24V / 48V / 125V DC ( 50 Watt )

Mounting

VESA mount, 100 x 100 mm ( bundled )
Universal mount ( ready for OP model )
Desktop stand ( option )
Panel mount ( bundled )

UltraView K23 Options - Touchscreen

e-Resistive 1-point Touch

	TRB e-Resistive
Technology	5-Wire Resistive
Touch Point	Single
Input Type	Finger or Stylus
Resolution	2048 x 2048
Response Speed	15 ms
Activation Force	≤ 50 g
Surface Hardness	3H
Light Transmission	80% ± 3%
Haze	8% ± 3%
Durability	10 million touches
Top Layer	ITO Film
Bottom Layer	ITO Glass
Thickness	3.2 ± 0.2 mm
Connector	USB Type-A
Compatibility	Windows 7 / XP / Linux / Mac

Part no. : F15TRB

** Dimension will be changed if multi-touch required

Projected Capacitive 10-point Touch

	TPC-10 Multi-touch
Technology	Projected Capacitive
Touch Point	10 point touch standard ( special requirement available )
Input Type	Finger or Capacitive Stylus
Resolution	4096 x 4096
Touch Point Accuracy	± 2 mm
Response Speed	< 5 ms
Activation Force	< 5 g
Surface Hardness	6H
Light Transmission	> 85%
Haze	3%↓
Durability	50 million touches
Top Layer	1.1 mm Glass
Bottom Layer	0.7 mm Sensor Glass
Thickness	2 mm
Connector	USB
Compatibility	Windows / Linux / Android / Mac

Part no. : F15-TPC10

** Dimension will be changed if multi-touch required

UltraView F15 Options - DC Power

		12V	24V	48V	125V
Input rating	Input voltage	12-Volt	24-Volt	48-Volt	110-Volt
Input rating	Input range	9 ~ 18V	18 ~ 36V	36 ~ 75V	66 ~ 160V
Input current	No load	50 mA	50 mA	50 mA	35 mA
Input current	Full load	4,950 mA	2,450 mA	1,220 mA	749 mA
Output rating	Output voltage	12-Volt	12-Volt	12-Volt	12-Volt
Output rating	Output current	4.16A	4.16A	4.16A	6.25A
Efficiency		84%	85%	85%	91%

Part no. :

12VDC
24VDC
48VDC
125VDC

UltraView F15 Resources & Downloads

Austin Hughes UltraView F15 Resources F15 Datasheet (PDF)
F15 Manual (PDF)

UltraView F15 Specifications

LCD Panel	Standard	Sunlight Readable
Brightness (cd/m�)	300	1,000
Contrast ratio (typ.)	800 : 1	500 : 1
Viewing angle (L/R/U/D)	89/89/89/89	70/70/60/60
Response time (ms)	30	8
Dot pitch (mm)	0.0897	0.17925
Display area (mm)	344.448H x 193.752V	344.16H x 193.59V
MTBF (hrs)	20,000	50,000
Panel size (diagonal)	15.6-inch widescreen TFT color LCD
Native resolution	1920 x 1080
Colors	16.7 M, 8-bit
Surface treatment	Anti-glare
Surface hardness	3H
Backlight type	LED

Video
VGA	Analog 0.7Vp-p
DVI	DVI-D single link

Video Option
HDMI	HDMI 1.4 / HDCP 1.3

Audio Option
Audio output : Connector Resistance / Power level	3.5mm stereo jack 30kΩ / 2.8V
Speaker Dual stereo speaker	2W x 2

*When the audio output is connected, speaker output is OFF

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Screen on Power saving mode Power button off	Max. 24W Max. 9W Max. 2W

Environment
Operating temp.	0 to 55°C
Storage temp.	-20 to 60°C
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Design	AP-F15	NAP-F15	DP-F15	OP-F15
Protection	6mm front bezel	NEMA 4 / IP65	front cover	open frame
Front panel	Black, RAL 9005			-
Rear casing	Black, RAL 9005

Mounting	AP-F15 / NAP-F15	DP-F15	OP-F15
VESA mount	100 x 100 mm	100 x 100 mm	100 x 100 mm
Universal mount	-	-	bundled
Desktop stand	option	option	-
Panel mount	bundled	-	-

Physical	AP-F15 / NAP-F15		DP-F15	OP-F15
Product (W x D x H) : mm inch	399 x 53.6 x 261.6 15.7 x 2.1 x 10.3		376.4 x 54.4 x 239 14.8 x 2.1 x 9.4	396 x 47.6 x 258.6 15.9 x 1.9 x 10.2
Packing (W x D x H) : mm inch	615 x 113 x 523 24.2 x 4.4 x 20.6		615 x 113 x 523 24.2 x 4.4 x 20.6	615 x 113 x 523 24.2 x 4.4 x 20.6
Net weight	4.7 kg / 10.3 lb	4.7 kg / 10.3 lb	4.1 kg / 9 lb	3.5 kg / 7.7 lb
Gross weight	7.3 kg / 16.1 lb	7.3 kg / 16.1 lb	6.7 kg / 14.7 lb	6.1 kg / 13.4 lb
Chassis color	Dark
Chassis materials	Aluminum

Compliance
EMC	FCC & CE certified
Safety	CE / LVD certified
Environment	RoHS2 & REACH compliant

Resolution Format
DVI-D / VGA input	PC signal	1920 x 1080 x 60Hz 1360 x 768 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 960 x 60Hz 1280 x 768 x 60 / 75Hz 1152 x 864 x 75Hz 1024 x 768 x 60 / 70 / 75Hz 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz
DVI-D / VGA input	Audio signal	2ch Linear PCM
HDMI input	PC signal	Same as VGA
	HDMI 1.3	1920 x 1080 x 50 / 60Hz ( 1080p ) 1920 x 1080 x 25 / 30Hz ( 1080i ) 1280 x 720 x 50 / 60Hz ( 720p ) 720 x 480 x 50 / 60Hz ( 576p / 480p )
	Audio signal	2ch Linear PCM
