UltraView K17 - Professional and Versatile 17" 4K LED Monitor

K17

$1,273.00
Aspect Ratio: 16:9 (4K / FHD)
Screen Size: 17 in
FREE Shipping on orders over $100

UltraView K17 series 17" 4K UHD LED monitor supports 3840 x 2160 resolution, 4 times the resolution of FHD. True 8-bit input enables 16.7 M colors to be presented, achieving ultimate picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.

K17 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, Multi-Monitor OSD Controller, SDI Input and Portrait Mode Kit. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.

As a versatile 4K monitor, K17 is meticulously designed to meet professional and environmental demands including IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panel-mount, VESA-mount, Universal-mount and Desktop stand.

With over 22 years' production experience, the K17 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

UltraView K17

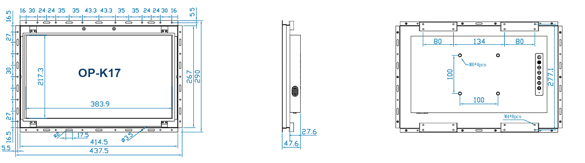

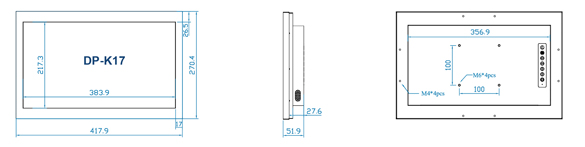

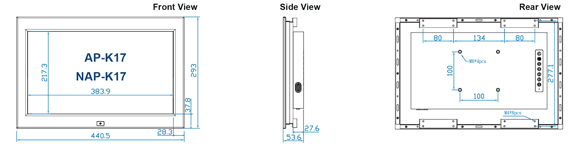

See Detailed KVM Layout

UltraView K17 Features & Benefits

  • 17" LED, 3840 x 2160 native UHD resolution
  • 1920 x 1080 & 1920 x 1200 resolution support
  • 16.7 M colors ( 8-bit ) / 400 cd/m2 brightness
  • PIP Sub-screen & PBP Dual-screen viewing efficiency
  • Display port 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Video decoding capability up to 1080p ( option )
  • Rugged structure ensures high mobility
  • IP65 front protection ( NAP option )
  • Professional-use durability & around-the-clock operation
  • 2-year standard warranty ( upgradable up to 5 years )

UltraView K17 Models

6mm aluminum front bezel

AP-K17
AP-K17

Aluminum front cover

DP-K17
DP-K17

6mm aluminum front bezel NEMA 4 / IP65 front protection

NEMA 4 / IP65 front protection

NAP-K17
NAP-K17

Universal open frame

OP-K17
OP-K17

UltraView K17 Options

Video Management & Transmission over Network open_in_browser

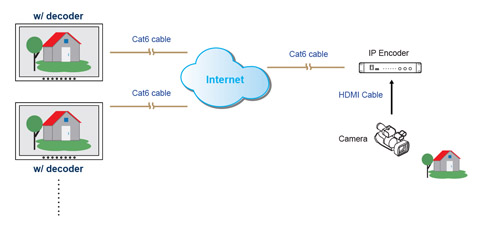

  • Embedded HDMI Decoder Module 1080p over IP

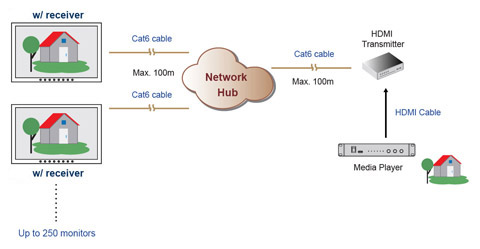

  • Embedded HDMI Extender Module 1080p over network

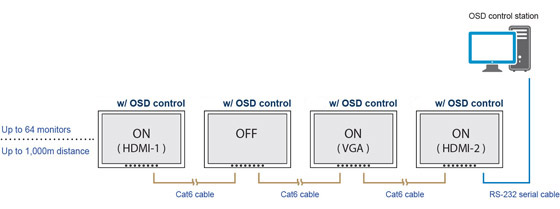

  • Embedded Multi Monitor OSD Control Module over serial

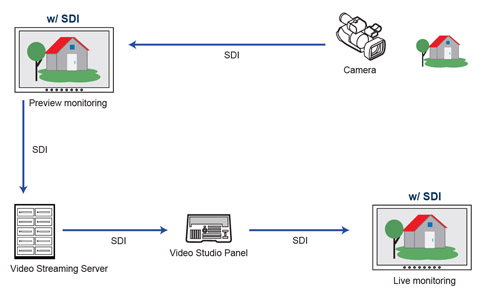

  • Embedded 3G / HD / SD-SDI Input Module
  • Embedded Portrait Mode Module
  • Embedded Brightness Dimming Module

Bezel & Frame Customization

  • Dimension
  • Color & Treatment
  • Screen Printing
  • Stainless Steel Bezel

Touchscreen & Glass Protection open_in_browser

  • Projected Capacitive 10-point Touch
  • 5-Wire Resistive 1-point Touch
  • Anti-reflective Glass
  • Vandal Proof Glass

DC Power open_in_browser

  • 12V / 24V / 48V / 125V DC ( 50 Watt )

Mounting

  • VESA mount, 100 x 100 mm ( bundled )
  • Universal mount ( ready for OP model )
  • Desktop stand ( option )
  • Panel mount ( bundled )

UltraView K17 Resources & Downloads

Austin Hughes UltraView K17 Resources K17 Datasheet (PDF)
K17 Manual (PDF)

UltraView K17 Specifications

LCD Panel
Panel size (diagonal) 17.3-inch widescreen TFT color LCD
Native resolution 3840 x 2160
Brightness (cd/mē) 400
Contrast ratio (typ.) 1000 : 1
Colors 16.7 M, 8-bit
Viewing angle (L/R/U/D) 89/89/89/89
Response time (ms) 16
Dot pitch (mm) 0.0995
Display area (mm) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000
Video
Digital : Display port HDMI
DP 1.2 / HDCP 1.3 HDMI 2.0 / HDCP 2.2 HDMI 1.4 / HDCP 1.4
Audio
Audio output : Connector Resistance / Power level
3.5mm stereo jack 30kΩ / 2.8V
Speaker Dual stereo speaker
2W x 2
*When the audio output is connected, speaker output is OFF
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Screen on Power saving mode Power button off
Max. 29W Max. 9W Max. 2W
Environment
Operating temp. 0 to 55°C
Storage temp. -20 to 60°C
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Design AP-K17 NAP-K17 DP-K17 OP-K17
Protection 6mm front bezel NEMA 4 / IP65 front cover open frame
Front panel Black, RAL 9005 -
Rear casing Black, RAL 9005
Mounting AP-K17 / NAP-K17 DP-K17 OP-K17
VESA mount 100 x 100 mm 100 x 100 mm 100 x 100 mm
Universal mount - - bundled
Desktop stand option option -
Panel mount bundled - -
Physical AP-K17 / NAP-K17 DP-K17 OP-K17
Product (W x D x H) :
mm
inch 		440.5 x 53.6 x 293
17.3 x 2.1 x 11.5 		417.9 x 51.9 x 270.4
16.5 x 2 x 10.6 		437.5 x 47.6 x 290
17.2 x 1.9 x 11.4
Packing (W x D x H) :
mm
inch 		615 x 113 x 523
24.2 x 4.4 x 20.6 		615 x 113 x 523
24.2 x 4.4 x 20.6 		615 x 113 x 523
24.2 x 4.4 x 20.6
Net weight 5.2 kg / 11.4 lb 5.2 kg / 11.4 lb 4.3 kg / 9.5 lb 3.4 kg / 7.5 lb
Gross weight 8 kg / 17.6 lb 8 kg / 17.6 lb 7.1 kg / 15.6 lb 6.2 kg / 13.6 lb
Chassis color Dark
Chassis materials Aluminum
Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Resolution Format
Display port input PC signal 3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
Audio signal 2ch Linear PCM
HDMI input HDMI 2.0 3840 x 2160 x 60Hz
HDMI 2.0 / 1.4 3840 x 2160 x 30Hz
1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio signal 2ch Linear PCM
