Raloy 1U 17" HD (1080p) Mac-keyboard Rack Console - with Integrated 12-Port DVI USB 3.0 KVM Switch



Replaced by: Raloy RF117HD-DVIKVM112
Alternative options: Contact Us

Integrated KVM: DVI KVM with USB 3.0 Hub & Audio

Raloy RF117HDM-DVIKVM112 rack console features a 17" 1080p HD LED and an Integrated . This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RF117HDM with DVIKVM112 KVM

  • Rackmount Console with Mac Keyboard & Integrated 12-Port DVI KVM in only 1RMU
  • 17" Full HD LED monitor with support for resolutions up to 1080p
  • Single Link DVI-D, USB 3.0, and Audio Switching
  • Advanced user profiles and configurable OSD hot key combinations.
  • Supports widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Support for VESA DDC2B emulation & TMDS signal pass-through
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RF117HDM with Integrated DVI KVM

  • Raloy RF117HDM-DVIKVM112 USB 3.0 Peripheral Hub

    USB 3.0 Peripheral Hub

    Raloy RF117HDM-DVIKVM112 features a front USB 3.0 Peripheral hub port that let you share USB 3 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 3.0 devices, among multiple computers connected to the KVM.

  • Raloy RF117HD Full-HD (1080p) LED Display

    Full-HD (1080p) LED Display

    The Raloy RF117HD features a 17" 1080p LED-backlit LCD delivering up to 1920 x 1080 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RF117HDM-DVIKVM112 CD quality analog audio via USB

    CD-quality stereo audio

    Seamlessly switch your audio source along with the computer source! The RF117HDM-DVIKVM112 delivers USB stereo audio (Line In, Line Out) digitally across the source computers. USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.

  • Raloy RF117HDM-DVIKVM112 KVM Multi-platform support

    Multi-platform support

    The Raloy RF117HDM is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RF117HDM supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RF117HDM-DVIKVM112 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics
  • Raloy RF117HDM-DVIKVM112 Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RF117HDM-DVIKVM112 Certifications

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL (console), CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, and commercial applications. For TAA Compliant applications, Raloys drawers are assembled and tested in California, USA.

RF117HDM with DB-15 Hub KVM Package Contents

Raloy RF117HDM Package Contents

  • (1) RF117HDM Rack Console with Integrated DVIKVM112
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

RF117HDM Resources

Raloy RF117HDM Resources RF117HDM Datasheet (PDF)
RF117HDM Manual (PDF)
DVIKVM112 KVM Manual (PDF)

Instructional Media

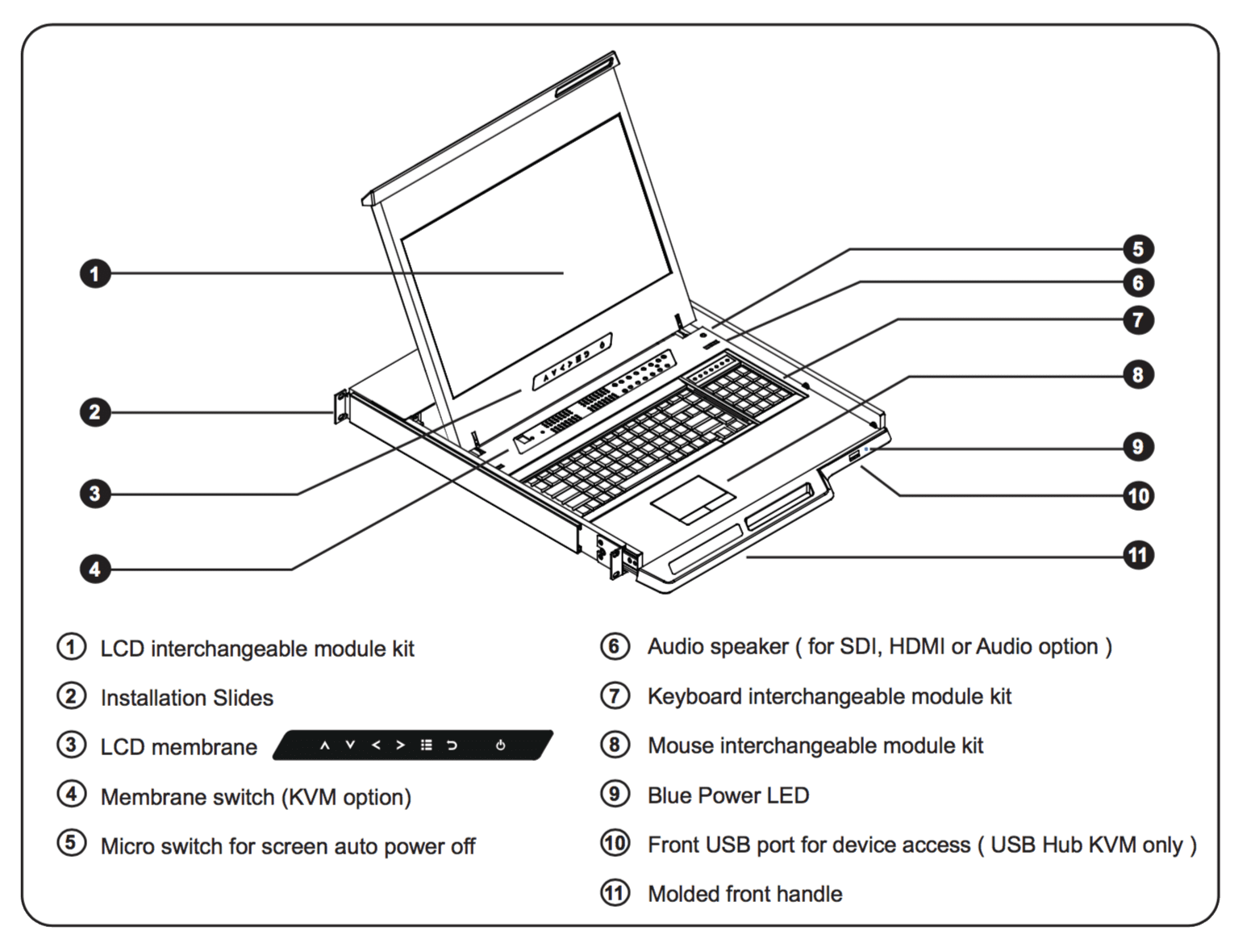

RF117HDM Diagram

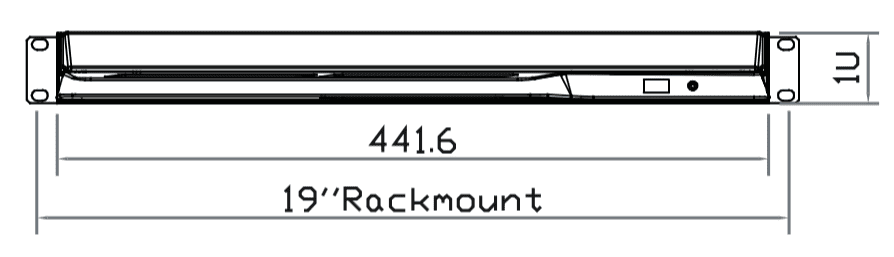

RF117HDM Front View

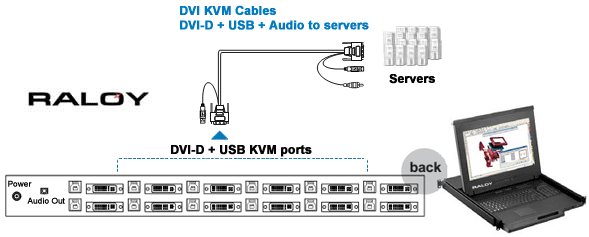

RF117HDM-DVIKVM112 Connection Diagram

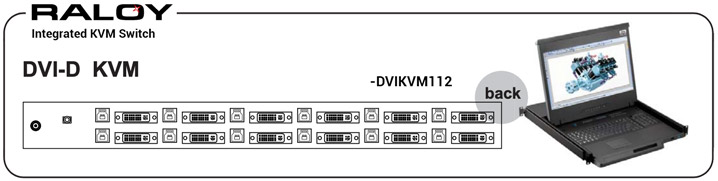

RF117HDM Integrated DVIKVM112 KVM

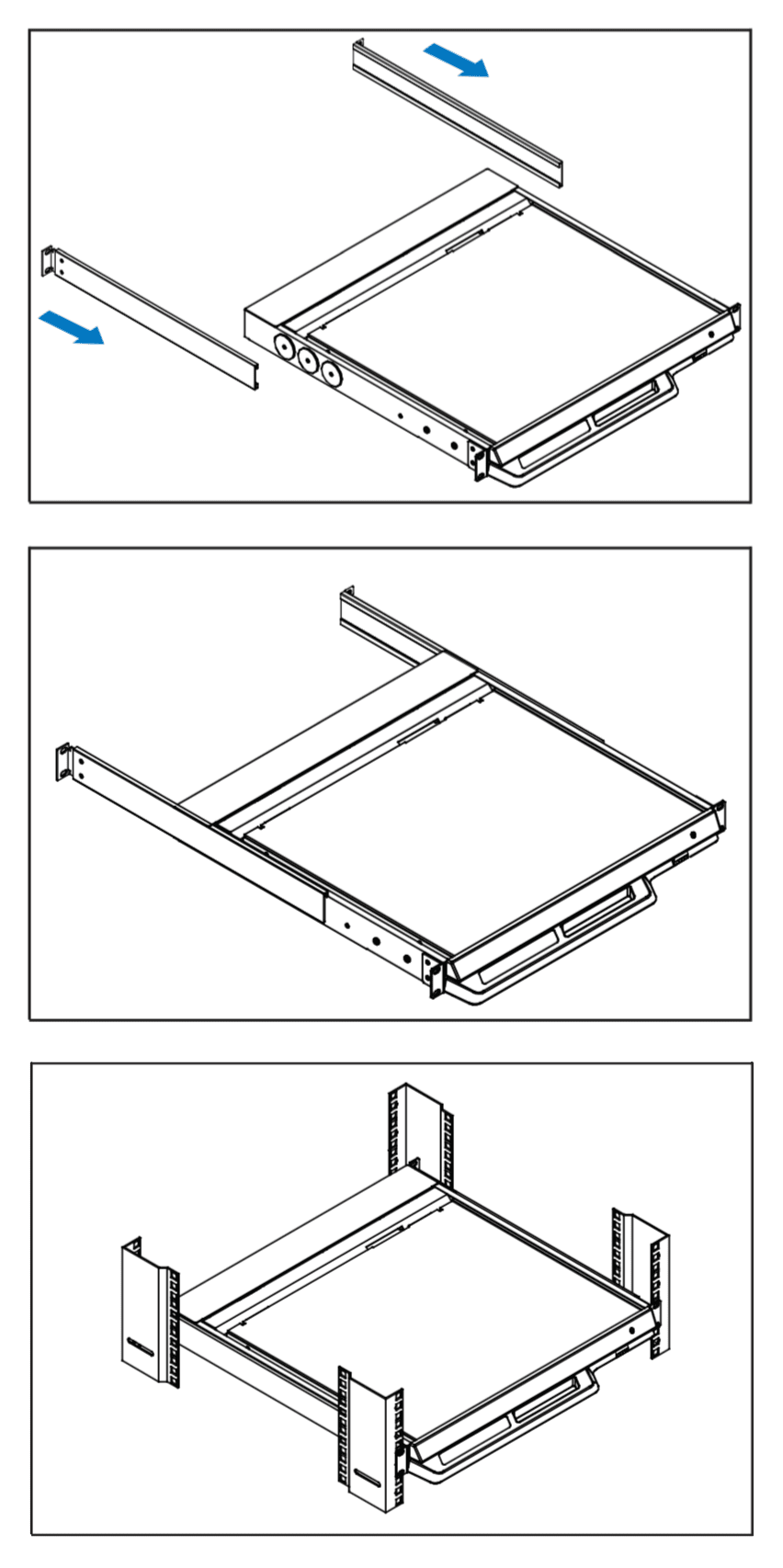

RF117HDM Installation Diagram

Raloy RF117HDM-DVIKVM112 Specifications

Product Dimensions
Product (W x D x H)
17.4 x 22.8 x 1.73 in. / 441.6 x 580 x 44 mm
Packing (W x D x H)
23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm
Net Weight
25.5 lbs / 11.6 kgs
Gross Weight
38.5 lbs / 17.5 kgs
LCD Monitor
Diagonal Size
17.3-inch Widescreen TFT color LCD
Max. Resolution
1920 x 1080
Color Support
1.07 Billion
Contrast Ratio (typical)
Viewing Angle (L/R/U/D)
Display Area (mm)
381.9H x 214.8V
LCD Panel MTBF (hrs)
VGA Signal Input
Analog RGB, 0.7Vp-p
DVI Signal Input DVI-D, TMDS single link
Optional HDMI Signal Input HDMI 1.1, CEA-861-D
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
Module Options
104 key notepad keyboard with full numerical pad and multiple keyboard language options.
2 button touchpad or trackball
Other Options
 Broadcast SDI, DC power, and audio input/output options available.
Auto-sensing 100 to 240VAC, 50 / 60Hz
Optional DC
12V/24V/48V DC input
Max. 48 Watt, Standby 5 Watt
Regulatory Approval
32° - 122°F (0° - 50°C)
23° - 140°F (-5° - 60°C)
Relative Humidity
5-90%, non-condensing
10G peak acceleration (11ms, half-sine wave)
5~500Hz 1G RMS random vibration
Package Contains**
1 x RF117HD Rack Console; 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers
