Raloy 1U 17" HD (1080p) LED Monitor & Mac Style Keyboard Drawer
RF117HDM
$1,319.00
Discontinued
Replaced by: Raloy RF117HD
Alternative options: Contact Us
Model: 17" High-Def LED (Mac)
Integrated KVM: Console Only (1-Port)
The Raloy RF117HDM Mac style rackmount monitor keyboard drawer features a 17" Widescreen LCD capable of full HD 1080p video. The keyboard is a 104-key Apple style keyboard including Option, Command and Apple Function keys, full numeric keypad and integrated touchpad or trackball mouse. The unit includes one 6ft DVI-D console cable designed specifically for the Raloy HD rack console series (Product ID: RCX-6). This state-of-the-art modular Mac rack console offers a space saving, streamlined approach to your rack environment by integrating your high-definition LCD monitor, optional integrated KVM switch, Apple keyboard, and mouse in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with optional integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the HD monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
- Mac OS Keyboard
Integrated Mac OS style Keyboard. PC style keyboard style is available.
- High Definition LED
Support for full 1080p HD.
- Modular Options
Support for various keyboard, mouse, video input, audio speaker, power, and KVM options.

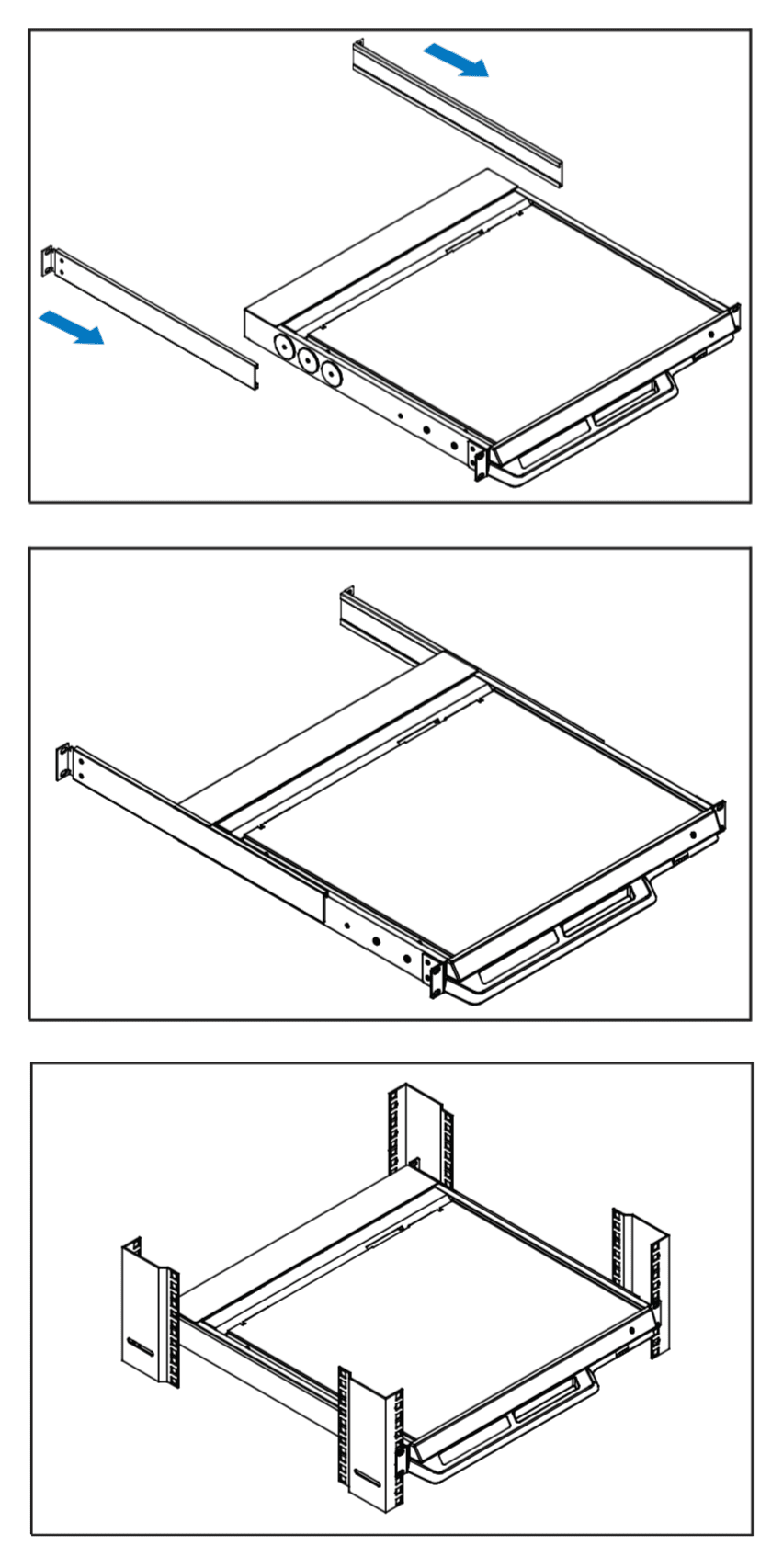

- 2-Post or 4-Post Mount
2-post & 4-post rack mounting available.

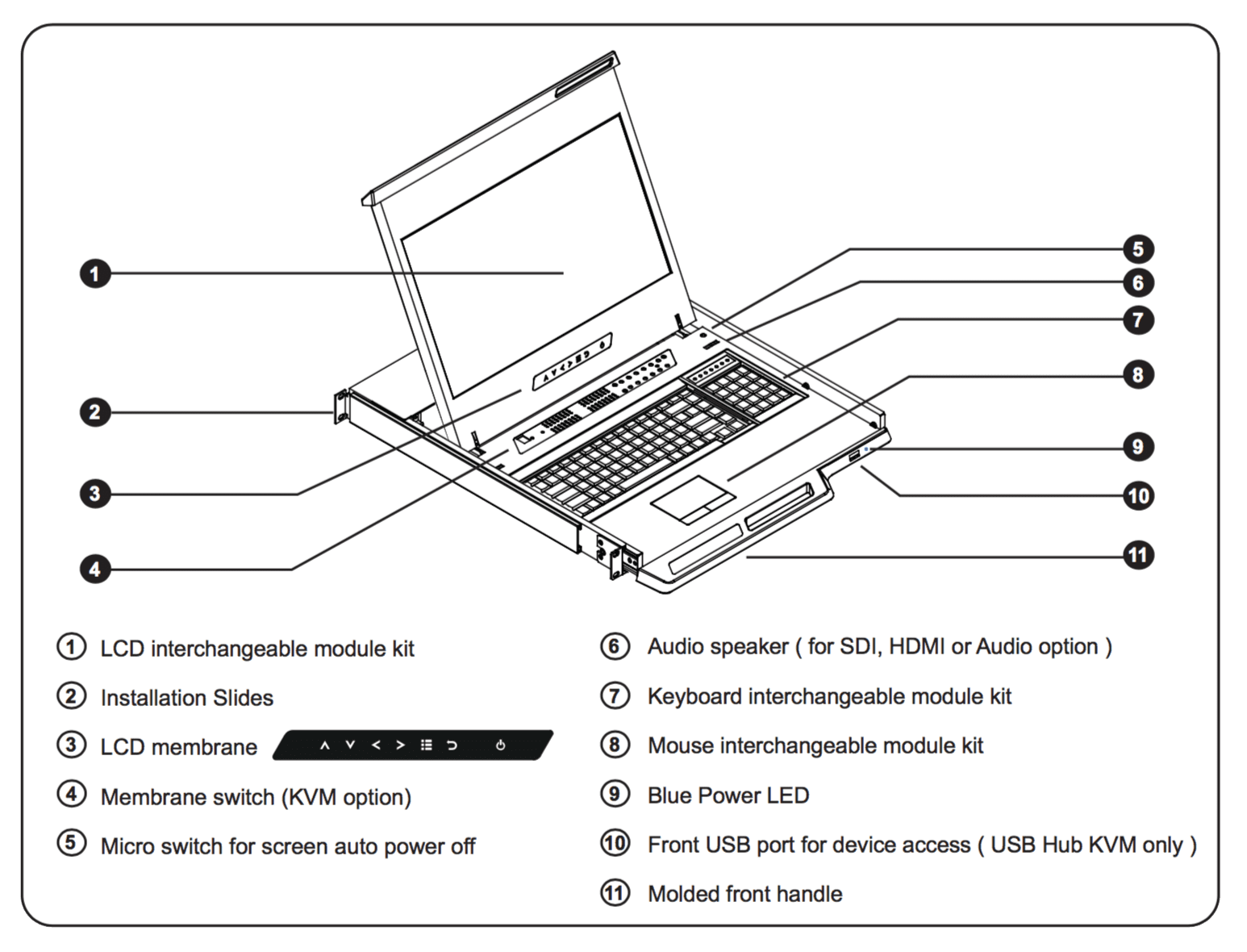

RF117HDM (RF117HD w/ Mac Keyboard) Features

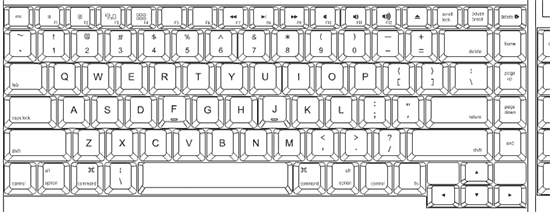

- 104-key Mac style keyboard with Option, Command, & Apple function keys, numeric keypad and either an integrated touchpad or trackball
- 1U 17" widescreen LED console drawer with DVI-D and VGA
(optional - HDMI w/speaker, or 3G / HD / SD-SDI ) - Supports Full HD with 1080p resolution
- Picture in Picture (PIP) & Picture by Picture (PBP) capability
- New enhanced aesthetics with molded front handle
- Numerous integrated KVM switch options available for highly customized rack management solutions
- Short depth design - only 18.9" deep
(min. mounting depth 18.9" to max. mounting depth 29.5" - 23.5" to 34.5" w/ optional KVM) - 2 post rack mounting available with optional kit
- 24 Month Limited Warranty - Extended Warranties available for purchase
RF117HDM Modular Options
Video
- DVI & VGA (standard)
- HDMI & DVI
- HDMI, DVI, & USB-C via USB-C to HDMI & USB Adapter
- 3G/HD/SD-SD [SDI]
Mouse
- Glidepoint Touchpad (standard)
- Trackball
Keyboard
- 104-key Mac notepad US keyboard (standard)
- Available in 14 international languages
Audio
- None (standard)

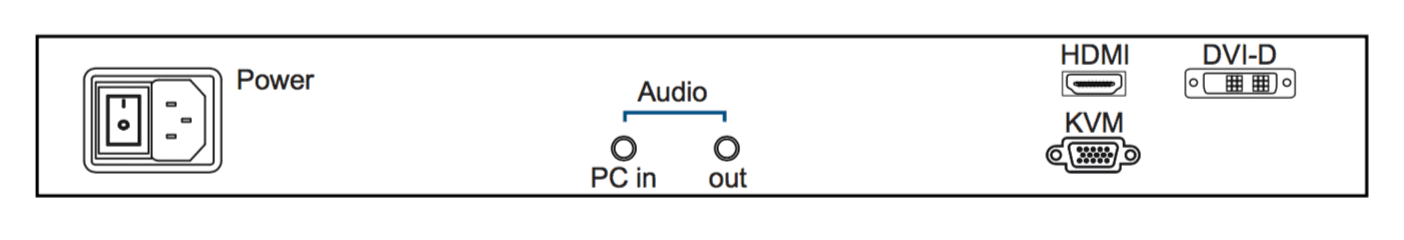

- 2x 2W Speakers + Audio Input & Output
Integrated KVM Switch
- None (standard)
- 8 to 32 Port; 1 to 4 Concurrent Users (local or over-IP)
Power
- 100 to 240V AC (standard)

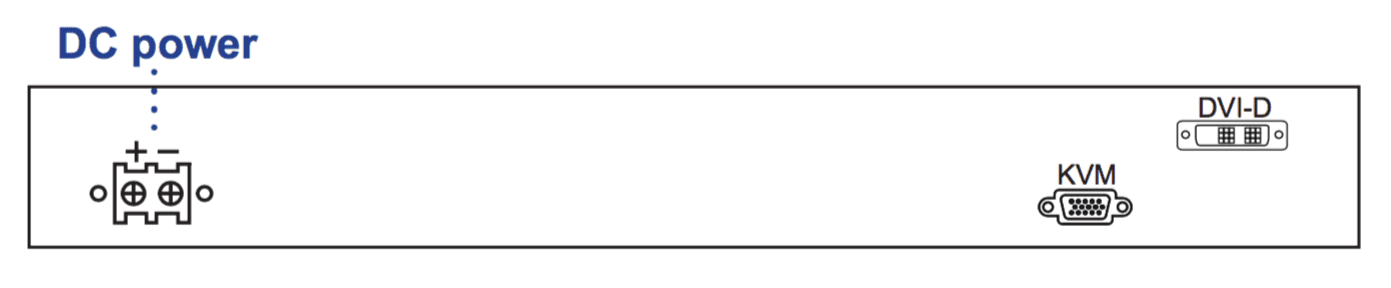

- 12V DC
- 24V DC
- 48V DC
- 110V DC
- 125V DC
For help with your custom configuration, please feel free to Contact Us.

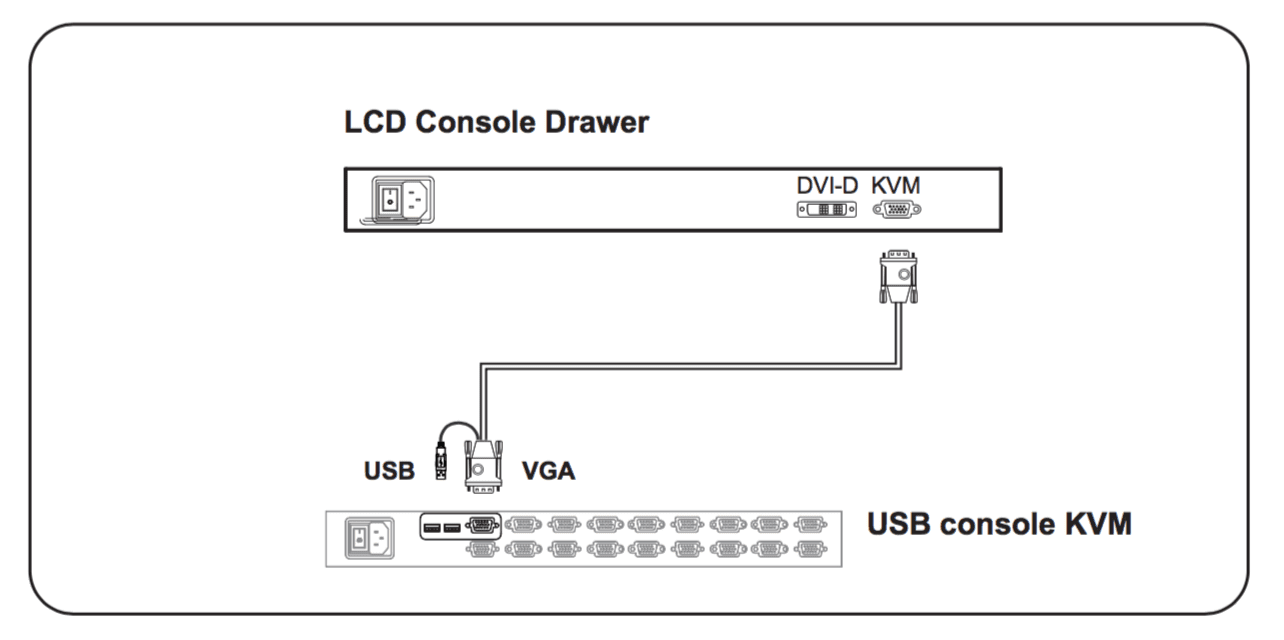

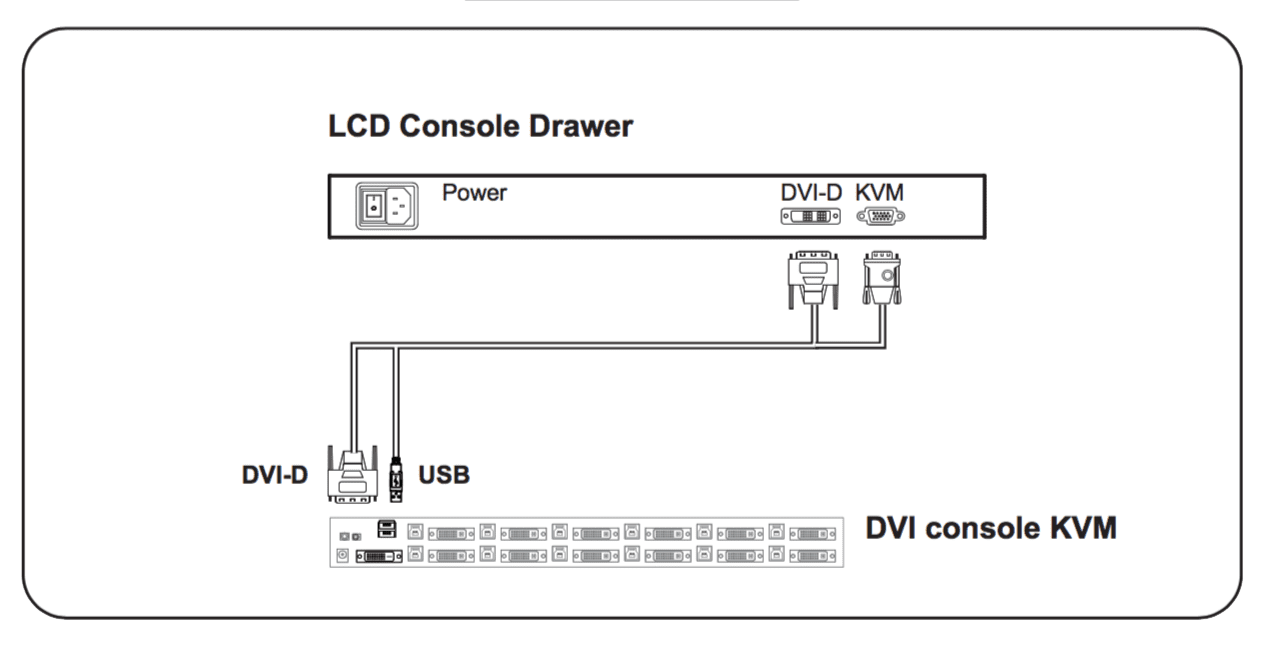

Integrate KVM Switch Into 1RMU
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
KVM Type |  RF117HDM with DVI-D KVM |  RF117HDM with High-Density Cat6 KVM |  RF117HDM with VGA DB-15 KVM |  RF117HDM with VGA DB-15 KVM with USB Hub |
|---|---|---|---|---|
| KVM Port Connection | DVI + USB |  |  | |
| Ports | 12 | 32 / 16 / 8 | 16 / 8 | 16 / 8 |
| KB / MS | USB | USB / PS2 | USB / PS2 | USB |
| Video | DVI-D | VGA / DVI / HDMI / DP / USB-C | VGA | VGA |
| Local User | 1 | 1 | 1 | 1 |
| Network IP Access Users | 0 | 0 to 2 | 0 to 2 | 0 to 1 |
| Extended Remote Users (500 ft) | 0 | 0 to 3 | 0 to 3 | 0 to 1 |
| USB Peripheral Port | 2 x USB 3.0 | -- | -- | 2 x USB 2.0 |
| Audio | Analog | -- | -- | -- |
| Max. Distance (KVM to Server) | 15 Ft / 4.5 M | 130 Ft / 40 M | 15 Ft / 4.5 M | 15 Ft / 4.5 M |
| Cascade Levels | -- | 8 | 8 | -- |
| Integrate | Integrate | Integrate | Integrate |
RF117HDM Package Contents
- (1) RF117HD Rack Console with Mac Keyboard (RF117HDM)

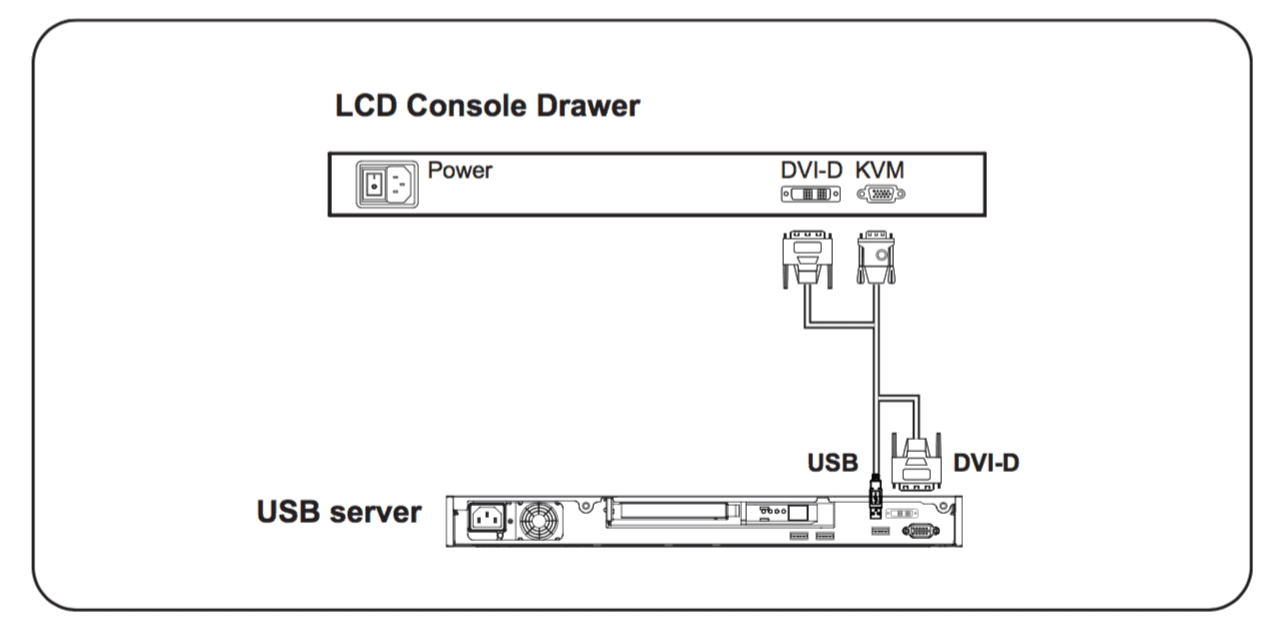

- (1) RCX-6 DVI-D/USB console cable
- (1) US Power Cord
- (8) M6 screw, cage nut & cup washer
- (1) 24 Month Limited Warranty
- Extended Warranties available for purchase - *Additional parts may be included based on options
RF117HDM Resources
Raloy RF117HDM Datasheet (PDF)
Raloy RF117HDM Manual (PDF)
Instructional Media
Raloy RF117HDM Specifications
Product Dimensions* | |

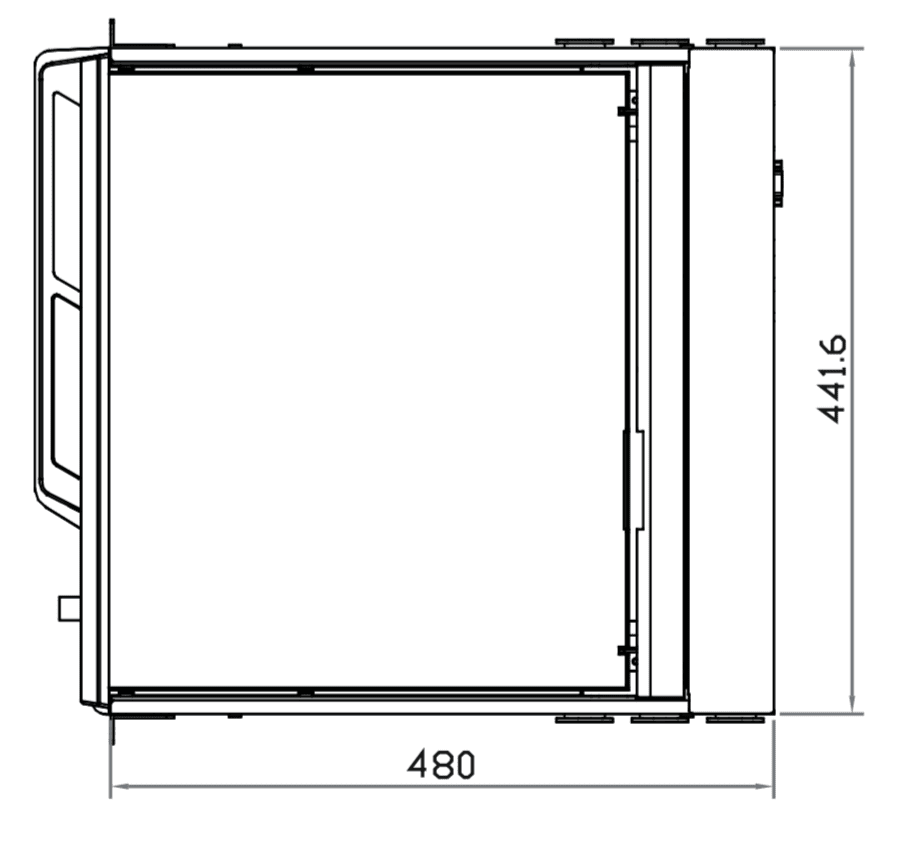

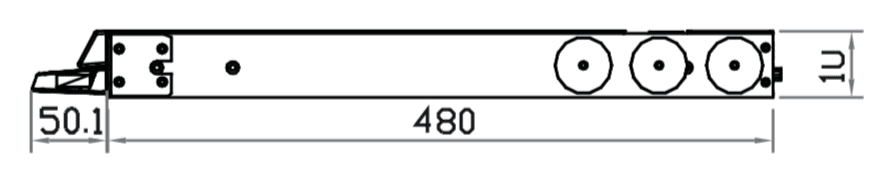

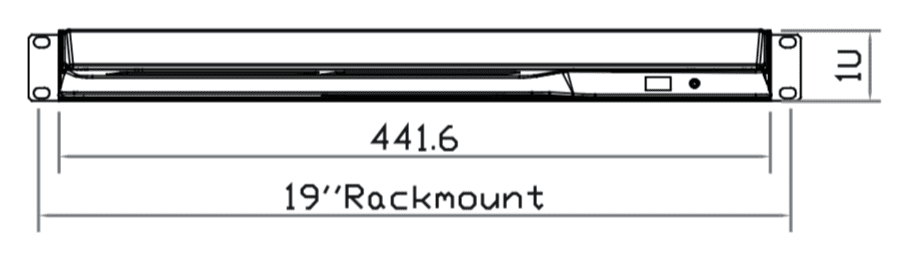

Product (W x D x H) | 17.4 x 18.9 x 1.73 in. / 441.6 x 480 x 44 mm |
Packing (W x D x H) | 23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm |
Net Weight | 23.8 lbs / 10.8 kgs |
Gross Weight | 34.8 lbs / 15.8 kgs |
LCD Monitor | |
Diagonal Size | 17.3-inch Widescreen TFT color LCD |
Max. Resolution | 1920 x 1080 |
Brightness | 300 |
Color Support | 1.07 Billion |
Contrast Ratio (typical) | 600:1 |
Viewing Angle (L/R/U/D) | 89/89/89/89 |
Display Area (mm) | 381.9H x 214.8V |
LCD Panel MTBF (hrs) | 20,000 |
VGA Signal Input | Analog RGB, 0.7Vp-p |
| DVI Signal Input | DVI-D, TMDS single link |
| Optional HDMI Signal Input | HDMI 1.1, CEA-861-D |
Sync. Type | Separate H/V, Composite, SOG |
Plug & Play DDC | EDID 1.3 |
Module Options | |
Keyboard | 104 key Apple keyboard including Command, Option and Apple function keys w/number pad |
Mouse | 2 button touchpad or trackball |
Other Options | Broadcast SDI, DC power, and audio input/output options available. |
Power | |
Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
Optional DC | 12V/24V/48V DC input |
Consumption | Max. 48 Watt, Standby 5 Watt |
Regulatory Approval | FCC, CE |
Environmental | |
Operation | 32° - 122°F (0° - 50°C) |
Storage | 23° - 140°F (-5° - 60°C) |
Relative Humidity | 5-90%, non-condensing |
Shock | 10G peak acceleration (11ms, half-sine wave) |
Vibration | 5~500Hz 1G RMS random vibration |
Package Contains** | 1 x RF117HDM Mac Rack Console; 1 x RCX-6 cable; 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers |
| * KVM and other options may change depth ** Mac rack consoles with integrated KVM options will include additional KVM cables depending on KVM option type and number of ports selected. | |
Question: Are the keyboard and mouse compliant with Apple computers?
Answer: Thank you for your inquiry. Yes, the keyboard is an Apple MAC style keyboard with Option, Command, & Apple function keys, numeric keypad and either an integrated touchpad or trackball.

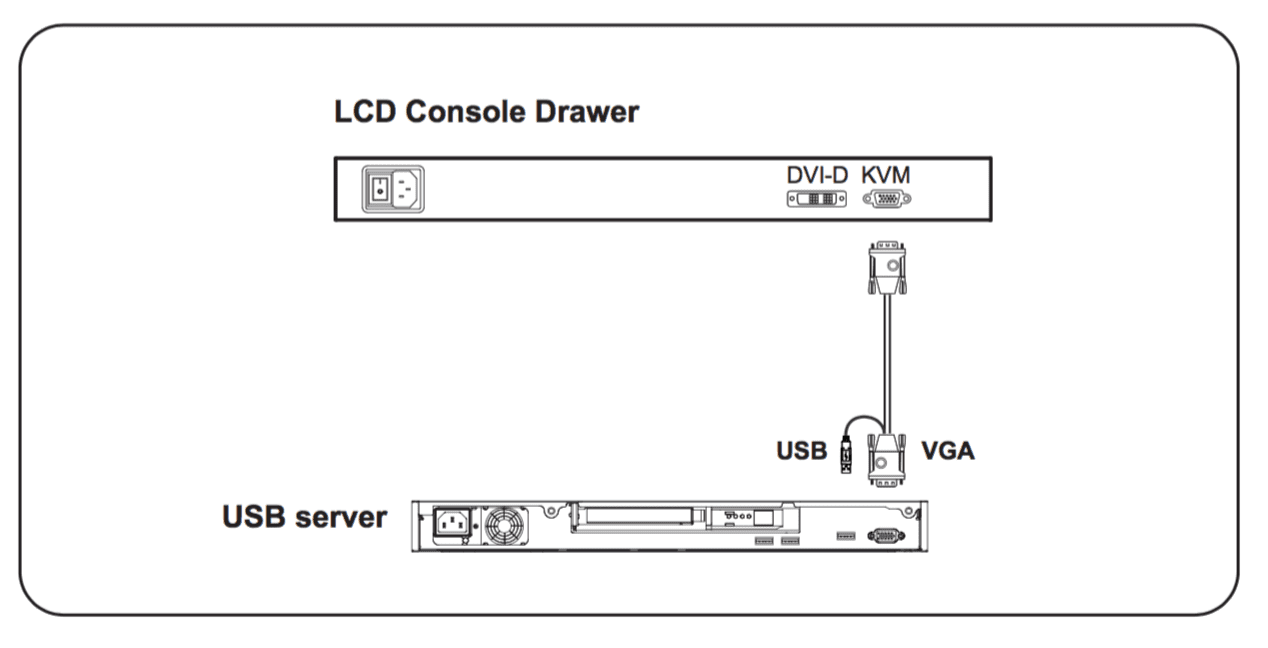

Question: how does it connest to a mac computer directly
Answer: Thank you for your inquiry. This device uses a proprietary cable with either VGA or DVI-D for video and a single USB connection for Keyboard and mouse.
Question: Is there a dual slide version of this unit? either 1 or 2 U
Answer: Thank you for your inquiry,
Raloy does not offer a Dual Slide version with a MAC keyboard, however we do carry an equivalent dual slide console with a MAC kb: DF117. To order the MAC version of that console, please contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Question: Is this an Energy Star eligible product? If so, is this product Energy Star rated?
Answer: Thank you for your inquiry,
The RF117HD-Mac is not an Energy Star product, but its power consumption in standby is only max. 5 Watts and max. 48 Watts in operation.
The RF117HD is also compliant with other environmental standards including RoHS2 & REACH.
Please let us know if there is anything else we can help you with!
Question: If I get the version that is optimized for Mac, does the trackpad allow for multi-touch gestures like the Apple one does?
Answer: Thank you for your inquiry,
With all current Rack Mount KVM Consoles, supporting "Multi-touch Gesturing" in Mac environment requires a separate USB hub connection with driver support. This is because of limitation in the standard USB-HID (Human Interface Device) specification that is used in all KVM devices Keyboard / Mouse connections for greater compatibility in controlling different systems.
That being said, an optional 10-point Multi-touch Touch-screen can be integrated into the RF117HDe or RF117HDe with integrated VGA Hub KVM Switch (i.e. RF117HD-801He) which both support Mac OS. You can add this option using the "Touchscreen Option" dropdown above. The part number for these configurations would be RF117HDe-TPC-10 or i.e. RF117HD-801He-TPC-10.
You can also simply connect a touchpad mouse capable of multi-touch through the optional USB Hub port with the dropdown option "Front USB Port" above. The part number of this configuration would be for example RF117HDe-USB.
Please let us know if there is anything else we can help you with!
Question: What is the HTS code and ECCN number for the Raloy RF117HDM unit?
Answer: Thank you for your inquiry,
See below for Export Classification information for the RF117HDM:
ECCN: 8528.51.0000
HTS: 4A994
Please let us know if there is anything else we can help you with!
