NTI HDMI HDBase-T Extender with IR & SPDIF Audio via One CAT5/6

ST-C6HD-DA-HDBT

$340.00$312.64
Save $27.36
FREE Shipping on orders over $100

The NTI XTENDEX ST-C6HD-DA-HDBT HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, and SPDIF digital audio up to 328 feet over a single CAT5e/6/7 cable using HDBase-T technology. Each XTENDEX HDMI video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

For a 4K HDMI HDBaste-T extender kit, please see the NTI ST-C64K-300.

NTI XTENDEX ST-C6HD-DA-HDBT Features and Benefits:

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6/7 cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200..
    • Extend 1080p up to 500 feet using NTI's CAT6A-BULK23-BLUE-NPC CAT6a 750 MHz solid unshielded bulk cable.
    • Extend 1080p up to 5,328 feet when combined with NTI's ST-FOHD-LC HDMI Extender via Fiber Optic Cable.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Only one power supply is necessary to power both the local and remote units.
  • HDMI features supported: 1920x1200 resolutions
    • 48-bit Deep Color
    • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • 3D
    • Bandwidth up to 154 MHz (3.76Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Available options: bi-directional RS232 + Ethernet, or SPDIF digital audio.
    • Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
  • Integrated mounting brackets for easy surface/wall mounting (ST-C6HDE-HDBT only).
  • High quality, rugged steel construction with durable powder coat finish.

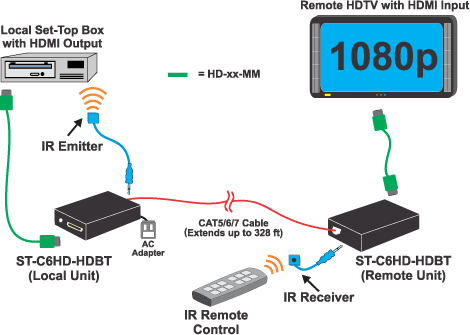

NTI XTENDEX ST-C6HD-DA-HDBT Diagram
NTI XTENDEX HDMI HDBase-T Extender with IR & SPDIF Audio via One CAT5/6 Diagram
(ST-C6HD-HDBT depicted here)

NTI XTENDEX ST-C6HD-DA-HDBT Package Contents:

  • NTI XTENDEX ST-C6HD-DA-HDBT Local Unit
  • NTI XTENDEX ST-C6HD-DA-HDBT Remote Unit
  • 1 HD-3-MM 3 ft. Male-to-Male HDMI Video Cable
  • 1 RCA-3-MM 3ft. Male-to-Male RCA Cable
  • 1 100VAC to 240VAC, 50/60Hz-24VDC/1.0A AC Adapter
  • 1 Power Cord
  • 3 Ft. IR-EMITTER (IR-EMTR-3)
  • 3 Ft. IR-RECEIVER (IR-RCVR-3)
  • User manual

NTI XTENDEX ST-C6HD-DA-HDBT Specifications:

Mechanical
Width6.06 in.
Height1.08 in.
Depth3.05 in.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Operating Humidity17 to 90% non-condensing RH
Power Consumption110V-240VAC @ 50/60Hz via AC adapter
Local Unit
Connectors1 x HDMI; 1 x 3.5mm port for IR emitter;
1 x RCA jack for SPDIF digital audio;
1 x RJ45 for sending/receiving video/audio/IR/DDC
CompatibilityComputer or HDTV source with HDMI output
Remote Unit
Connectors1 x HDMI; 1 x 3.5mm port for IR receiver;
1 x RCA jack for SPDIF digital audio;
1 x RJ45 port for sending/receiving video/audio/IR/DDC
ResolutionHDTV 1080p; Computer 4096 x 2160
Regulatory ApprovalsCE, FCC, RoHS
Question: We need your quote for NTI, ST-C6HD-DA-HDBT.(17 pcs)
Answer: Thank for your inquiry. For the most accurate, up-to-date information regarding pricing, stocking and quotes, please contact your KVM Switches Online representative directly at 1-877-586-6654 or via our online chat feature.

Question: Does this extender pass 4K?
Answer: Thank you for your inquiry,

The NTI ST-C6HD-DA-HDBT extender no longer supports 4K resolutions. For a HDMI HDBaste-T extender kit that supports 4K resolutions, please see the NTI ST-C64K-300.

For a recommendation for your application, please feel free to reach out to your KVM Switches Online sales representative.
