NTI HDMI Audio HDBase-T Extender with IR via 1 CAT5e/6

ST-C6HD-HDBT-LC

$285.00

Discontinued
Recommended replacement: NTI ST-C6HD-394-LC
Alternative options: Contact Us

The NTI XTENDEX ST-C6HD-HDBT-LC (Remote and Local Unit) HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, and Ethernet up to 328 feet over a single CAT5e/6 cable using HDBase-T technology. Each XTENDEX ST-C6HD-HDBT-LC video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

NTI XTENDEX ST-C6HD-HDBT-LC Features and Benefits:

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6 cable.
  • Features two Ethernet ports on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs.
  • Full Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per your installation.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • HDMI features supported:
    • 36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • 3D
    • Bandwidth up to 3.4GHz
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
    • HDCP compliant.
    • Supports the DDC2B protocol.

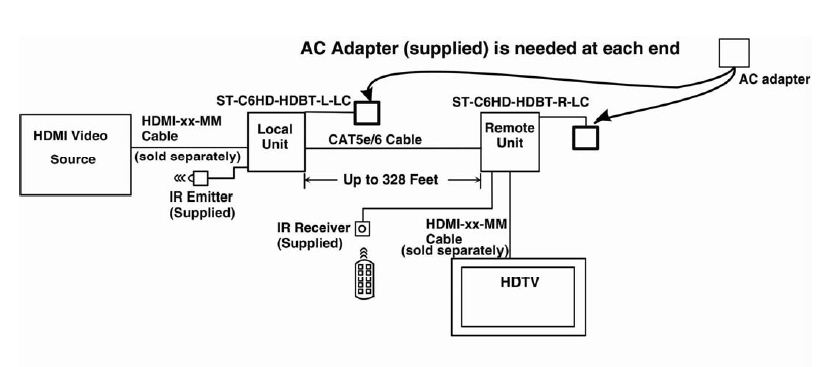

    NTI XTENDEX ST-C6HD-HDBT-LC Diagram
    NTI XTENDEX HDMI Audio HDBase-T Extender with IR via 1 CAT5e/6 Diagram
    (ST-C6HD-HDBT-LC depicted here)

    NTI XTENDEX ST-C6HD-HDBT-LC Package Contents:

    • NTI XTENDEX ST-C6HD-HDBT-LC Local Unit
    • NTI XTENDEX ST-C6HD-HDBT-LC Remote Unit
    • 2 100VAC to 240VAC at 50 or 60Hz-5VDC/0.5A AC Adapter
    • 3 Ft. IR-EMITTER
    • 3 Ft. IR-RECEIVER
    • User manual

    NTI XTENDEX ST-C6HD-HDBT-LC Specifications:

    Mechanical
    Width3.5 in.
    Height1.2 in.
    Depth3.1 in.
    Environmental
    Operating Temperature5 to 131°F (-15 to 55°C)
    Operating Humidity5 to 90% non-condensing RH
    Power Consumption110V-220VAC @ 50/60Hz via adapter
    Local Unit
    Connectors1 x HDMI Female; 1 x 3.5mm port for IR;
    2 x RJ45 100BaseT Ethernet ports;
    1 x RJ45 port for Hi-Def video/audio/IR/DDC/Ethernet
    CompatibilityComputer or HDTV with HDMI output
    Remote Unit
    Connectors1 x HDMI Female; 1 x 3.5mm port;
    2 x RJ45 100BaseT Ethernet ports;
    1 x RJ45 port
    CompatibilityHDTV: 1080p; Computer: 1920 x 1200
    Regulatory ApprovalsCE, FCC, RoHS
Question: What is the warranty on this NTI HDMI Audio HDBase-T Extender with IR via 1 CAT5e/6
Answer: Thank you for your inquiry,

The warranty period on the NTI ST-C6HD-HDBT-LC product (parts and labor) is two (2) years from the date of purchase.
