USB-C Dual-DisplayPort Mini Dock
UH3231
Save $21.57
Discontinued
For upgrade or replacement options: Contact Us
| Model | UH3231 | UH3233 | UH3232 | UH3236 | UH3234 | UH3230 | UH7230 |
|---|---|---|---|---|---|---|---|
| Image |  |  |  |  |  |  |  |
| Upstream | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | Thunderbolt 3 Type-C |
| USB-A | 1 | 1 | 1 | 2 | 3 (1x fast charging) | 3 (1x fast charging) | 2 |
| USB-C | N/A | N/A | N/A | 1 (charging) | N/A | 1 (data only) | 1 (data only) |
| Thunderbolt3 USB-C | N/A | N/A | N/A | N/A | N/A | N/A | 1 |
| HDMI | N/A | 2 | 1 | 1 | 1 | 1 | N/A |
| DisplayPort | 2 | N/A | N/A | N/A | 1 | 1 | 1 |
| VGA | N/A | N/A | 1 | 1 | 1 | N/A | N/A |
| Ethernet | N/A | N/A | check | check | check | check | check |
| SD/TF Card | N/A | N/A | N/A | N/A | check | N/A | N/A |
| Audio | N/A | N/A | N/A | N/A | check | check | check |
| VIDEO OUTPUT | |||||||
| Resolution (Single) | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 5K 60P |
| Resolution (Dual) | FHD 60P | FHD 60P | N/A | N/A | FHD 60P | FHD 60P | 4K 60P |
| POWER | |||||||
| Power Adaptor | N/A | N/A | N/A | Not Included | Not Included | v (90W) | v (170W) |
| Power Delivery (Charging) | N/A | N/A | N/A | 60W (Power adapter required) | 60W (Power adapter required) | 60W | 85W |
| Compatibility | Windows, OS X | Windows, OS X | Windows, OS X | Android, Windows, OS X | Windows, OS X | Windows, OS X | Windows, OS X |

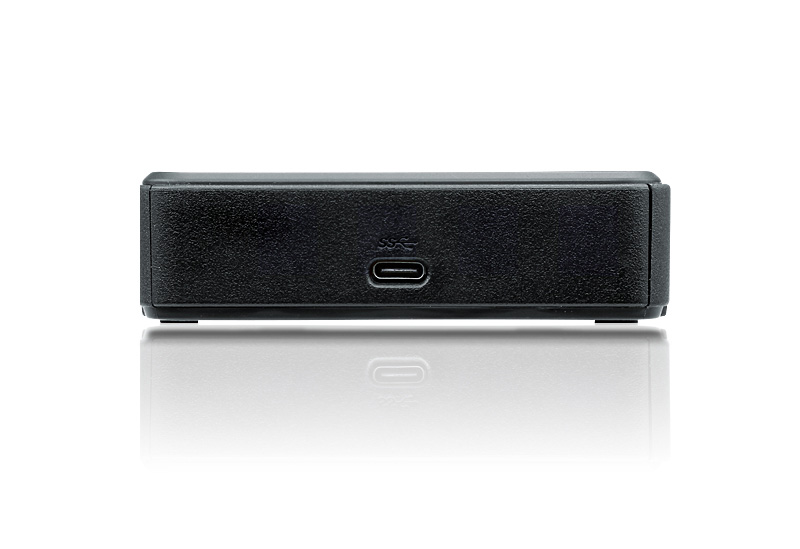

The ATEN UH3231 is a USB-C Dual-DisplayPort Mini Dock which transforms your USB-C device to a dual monitor workstation. It's compliant with the latest USB 3.1 Type-C specifications and supports a variety of video converters that can convert HDMI,DVI or VGA outputs for use in dual display mode. The UH3231 can route video from the source device to two DisplayPort monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.
The UH3231 USB-C Dual-DisplayPort Mini Dock uses USB-C connections to create high-speed and reliable data transfers between a laptop or computer with the ability to connect up to 128 additional peripherals, including Dual DP and USB 3.0 devices. The UH3231's slim and light design makes it ideal to maximize your workspace and travel with for business on the go.
Features & Benefits
- USB 3.1 Gen1 compliant
- Connects a computer to two DisplayPort monitors with Dual-View output
- Supports 4K (UHD) resolutions via single display output
- Supports dual-display video output up to 1920 x 1080 simultaneously*
- USB 3.1 Gen1 port with data transfer rates up to 5 Gbps
- Supports variety of video converters via Dual mode DisplayPort standard
- Plug and Play - no drivers or external power adapter needed
- Works with all major operating systems: Windows, OS X, and iPad Pro
* With Intel 7th- Generation Core Processor (Kaby Lake) and above. Mac computers only support a single-view output.
** Support iPad Pro video output and USB keyboard only.
Aten UH3231 Package Contents
- (1) UH3231 USB-C Dual-View Mini Dock
- (1) USB-C to USB-C Cable - 1m / 3.3ft
- (1) User Instructions
- (1) 2-Year Warranty
Aten UH3231 Resources
Aten UH3231 Datasheet (PDF)
Aten UH3231 Manual (PDF)
Aten UH3231 Quick Start Guide (PDF)
Aten UH3231 CAD Drawing (PDF)
Aten UH3231 Specifications
| Computer Connections | 1 |
| Connectors | |
| Computer | 1 x USB-C Female (Black) |
| Device | 1 x USB 3.1 Gen1 Type A Female (Blue) |
| Video Output | 2 x DisplayPort Female (Black) |
| LEDs | |
| Power | 1 (Blue/Orange) |
| Video Resolution | Single-View: DisplayPort - 3840*2160@30* Dual-View:** DisplayPort - 1920*1080@60* ** With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode. The UH3231 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI. ** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output. |
| Power Consumption | DC5V:0.81W:23BTU |
| Package Contents | 1 x 1m USB-C Cable |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.10 kg ( 0.22 lb ) |
| Dimensions (L x W x H) | 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
UPC 672792007255
EAN 0672792007255
