USB-C Multiport Mini Dock with Power Pass-Through
UH3236
Discontinued
For upgrade or replacement options: Contact Us
| Model | UH3231 | UH3233 | UH3232 | UH3236 | UH3234 | UH3230 | UH7230 |
|---|---|---|---|---|---|---|---|
| Image |  |  |  |  |  |  |  |
| Upstream | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | USB 3.1 Gen 1 Type-C | Thunderbolt 3 Type-C |
| USB-A | 1 | 1 | 1 | 2 | 3 (1x fast charging) | 3 (1x fast charging) | 2 |
| USB-C | N/A | N/A | N/A | 1 (charging) | N/A | 1 (data only) | 1 (data only) |
| Thunderbolt3 USB-C | N/A | N/A | N/A | N/A | N/A | N/A | 1 |
| HDMI | N/A | 2 | 1 | 1 | 1 | 1 | N/A |
| DisplayPort | 2 | N/A | N/A | N/A | 1 | 1 | 1 |
| VGA | N/A | N/A | 1 | 1 | 1 | N/A | N/A |
| Ethernet | N/A | N/A | check | check | check | check | check |
| SD/TF Card | N/A | N/A | N/A | N/A | check | N/A | N/A |
| Audio | N/A | N/A | N/A | N/A | check | check | check |
| VIDEO OUTPUT | |||||||
| Resolution (Single) | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 4K 30P | 5K 60P |
| Resolution (Dual) | FHD 60P | FHD 60P | N/A | N/A | FHD 60P | FHD 60P | 4K 60P |
| POWER | |||||||
| Power Adaptor | N/A | N/A | N/A | Not Included | Not Included | v (90W) | v (170W) |
| Power Delivery (Charging) | N/A | N/A | N/A | 60W (Power adapter required) | 60W (Power adapter required) | 60W | 85W |
| Compatibility | Windows, OS X | Windows, OS X | Windows, OS X | Android, Windows, OS X | Windows, OS X | Windows, OS X | Windows, OS X |

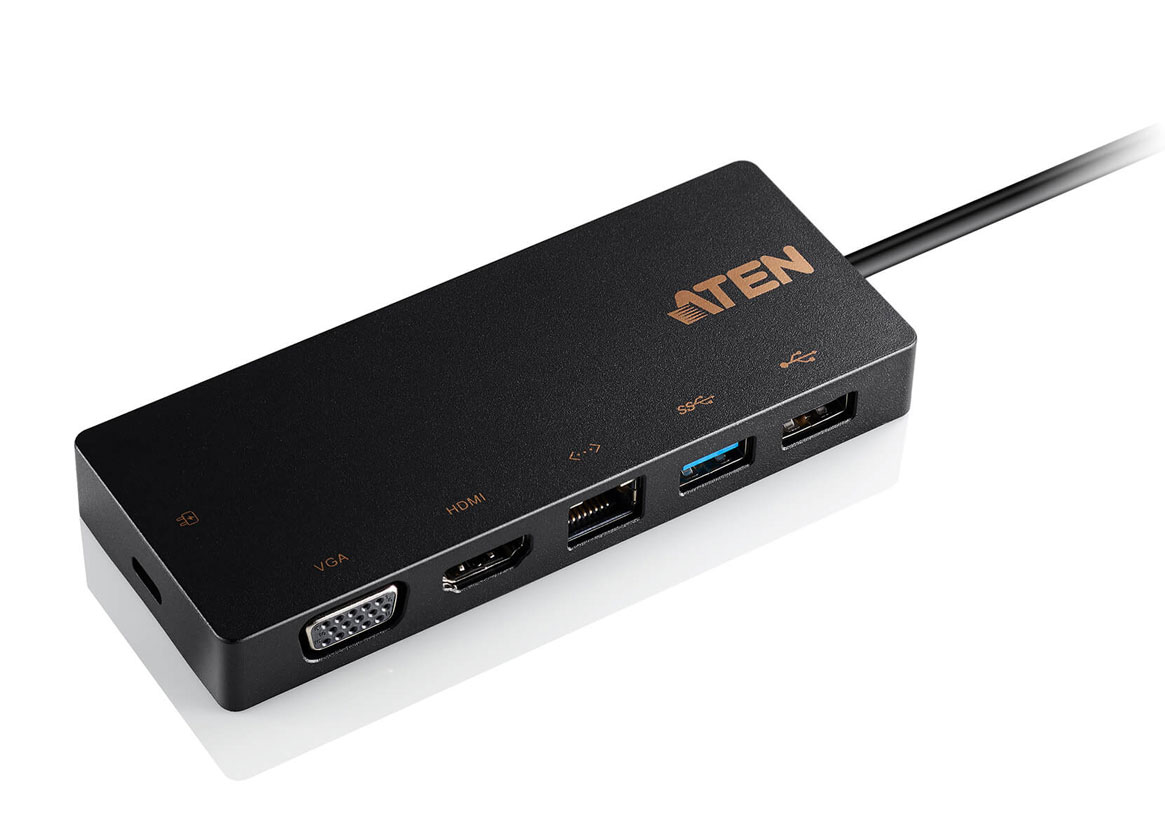

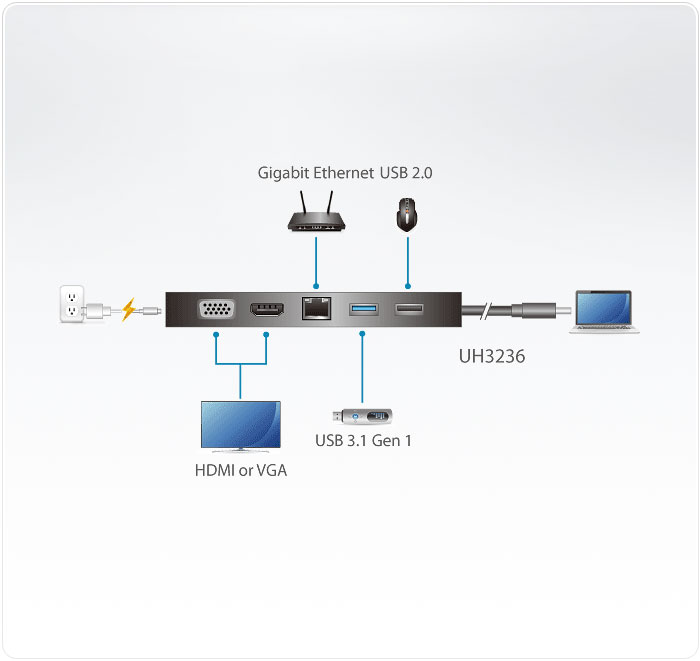

The Aten UH3236 connects a USB-C enabled computer to up to 5 peripheral ports that includes a USB 2.0 Type-A, USB 3.1 Gen 1 Type-A, Gigabit LAN, HDMI, and VGA - through a single USB-C cable. The UH3236 routes video from a source computer to a 4K HDMI (3840 x 2160 @ 30 Hz) or VGA (1920 x 1200 @ 60 Hz) monitor via a single cable. This dock provides one USB 3.1 Gen 1 Type-A port for 5 Gbps high-speed data transfers and one USB 2.0 Type-A port for keyboard and mouse usage. The UH3236 also supports USB-C Power Delivery Pass-Through to up to 60W, which means it can provide power to your laptops via a USB-C power adapter with PD profile specifications of 5V, 9V, 12V, 15V, 20V. With UH3236, users can save desk space, and expand devices connectivity, and creates a personalized desktop environment. This powerful and versatile dock offers a perfect portable solution for connecting multiple sources to a USB-C enabled computer.
Features & Benefits
- Connects up to 5 devices to a laptop through a single USB-C cable
- Supports 4K HDMI (3840 x 2160 @ 30Hz) resolutions or VGA (1920 x 1200 @ 60Hz) resolutions
- Supports USB Power Delivery 3.0 for laptop charging up to 60W via USB-C power adapter - power profiles include 5V, 9V, 12V, 15V, 20V**
- Gigabit Ethernet port
- Plug & Play - no drivers needed
- Works with all major operating systems: Windows, OS X, and Android***
* With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
**The total charging time may vary depending on the spec of USB-C power adapter connected to the UH3236.
*** Support iPad Pro video output, USB keyboard, and Android mirror mode (Compatible with smart phones launched in 2018 or later that feature video output over USB-C with DP Alt Mode) only
Build a PC-like Gaming Environment with your Smartphone
With Android compatibility, you can connect your smartphone to an external display with a big screen, a full-sized keyboard and a mouse while charging and accessing a speedy Ethernet network all at the same time.* Your Android phone can transform into a complete PC-like environment for a greater gaming experience through a single USB-C cable with a responsive connection.
*Compatible with smartphones launched in 2018 or later that feature video output (DP ALT mode) over USB-C.

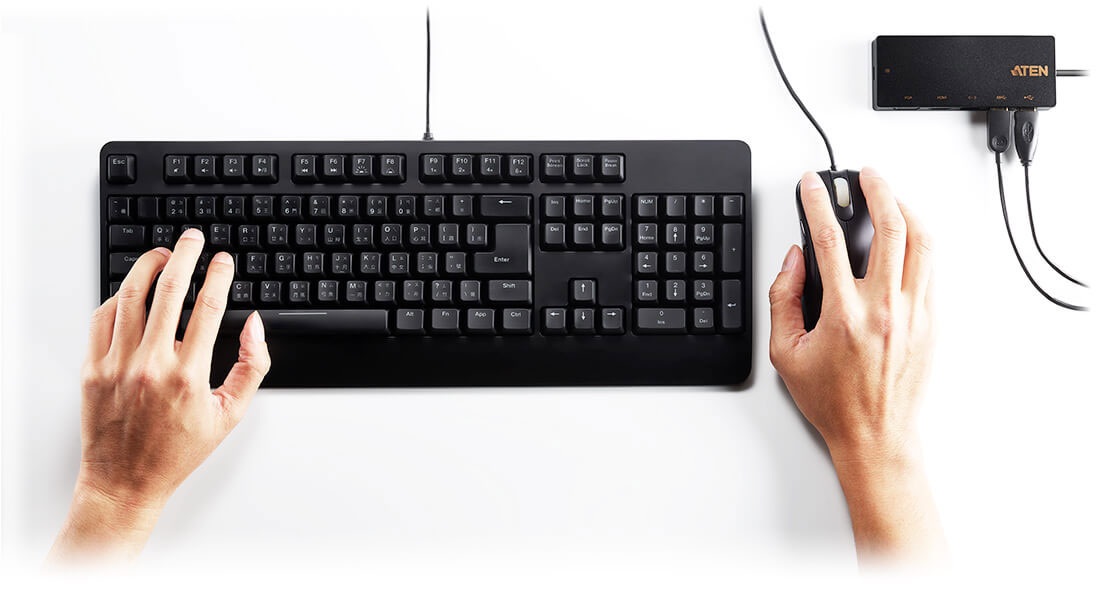

Expansion for a Mouse and Keyboard
The two USB-A ports provide the expansion for a mouse, keyboard, or other USB-compatible devices.* Make sure everything goes wired to reduce latency and secure your reaction time.
*A third-party key mapping Android app, such as Octopus, is required to use a keyboard and mouse while playing.

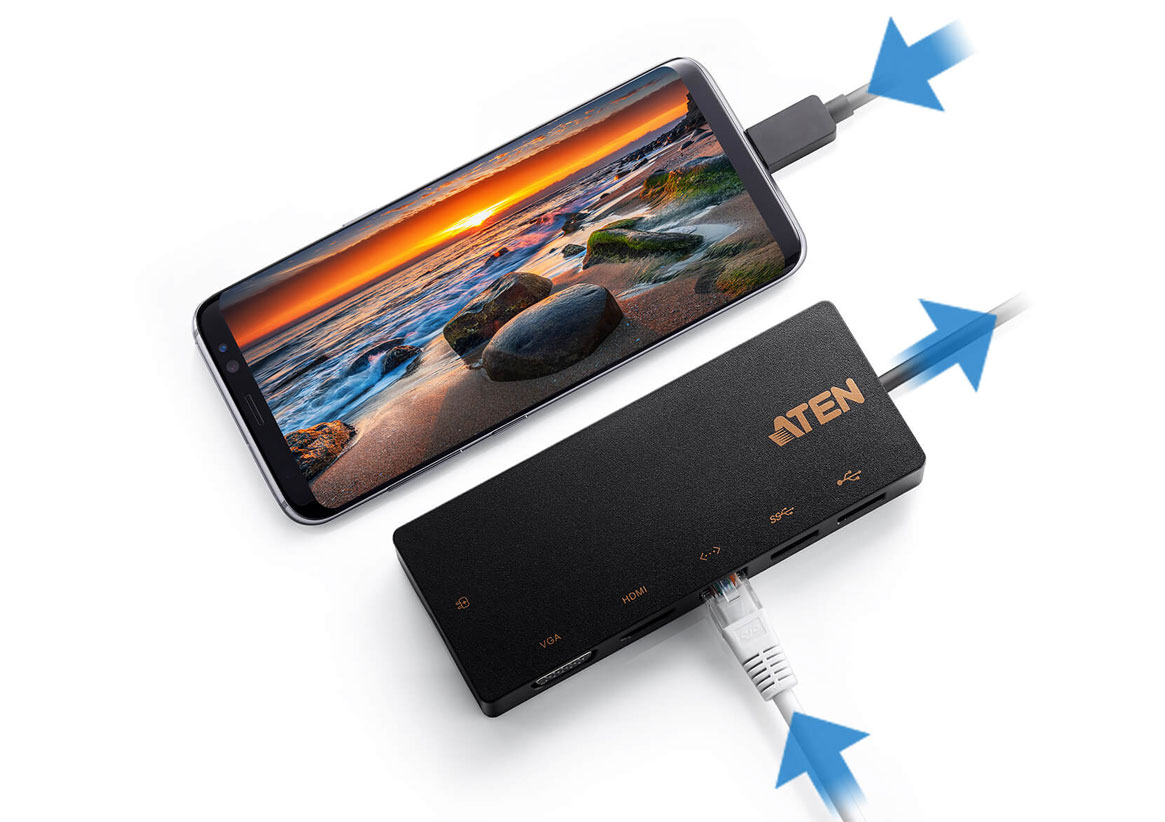

Get the Better Ping for Winning
For gaming, timing is everything. Now your phone can also connect to a speedy wired Ethernet connection to get a good ping rate and one step ahead of your opponent.

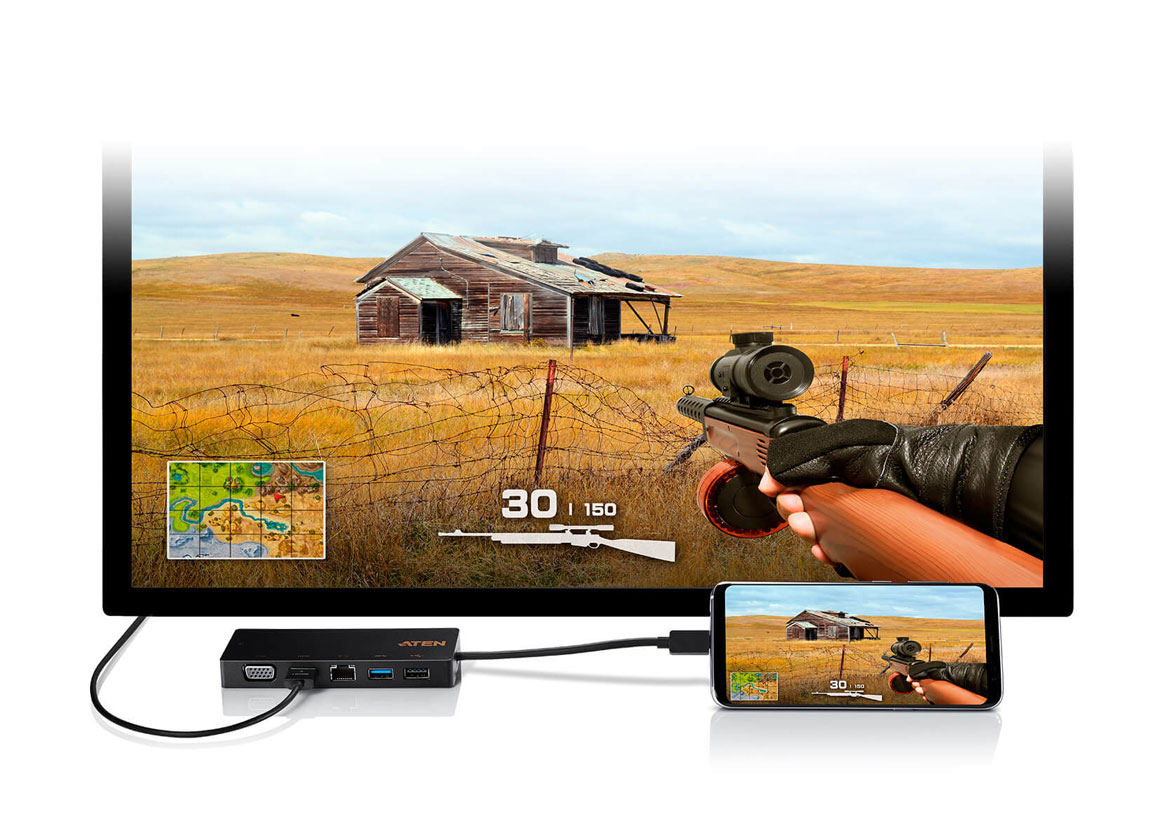

Enjoy your Game on a Big Screen
Use either the HDMI or VGA port that displays in FHD to connect to a TV or projector.* Be more responsive and more precise with a big screen for a better aiming and gaming experience.
*Only supports Android screen mirroring. Does not support Samsung DeX mode.

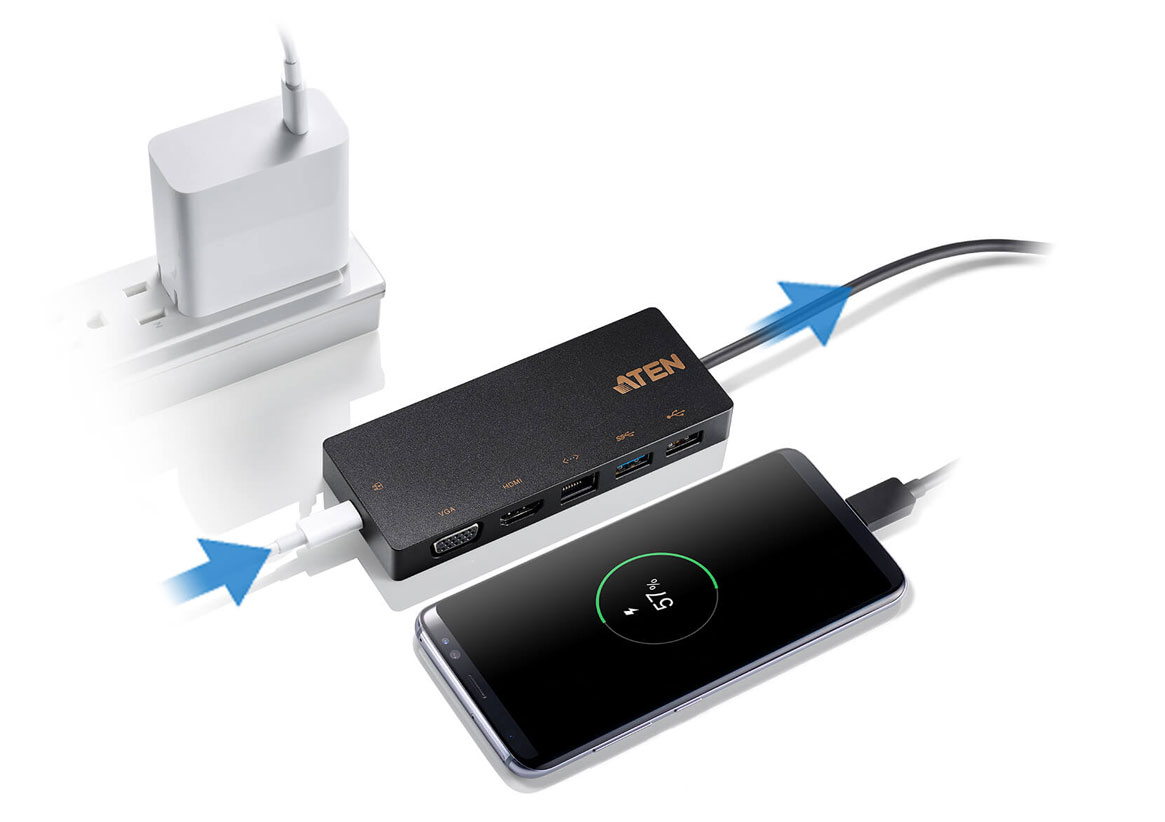

Charge your Phone while Playing
The 60W USB-C power delivery pass-through can keep charging your phone while you are playing in an intense battle with opponents. No need to worry about the battery situation and instead focus on winning.*
*To charge a phone at full speed while playing, it's suggested to use a USB-C charger with over 35W power output.
Aten UH3236 Package Contents
- (1) USB-C Multiport Mini Dock with Power Pass-Through
- (1) User Instructions
- (1) 2-Year Warranty
Aten UH3236 Resources
Aten UH3236 Datasheet (PDF)
Aten UH3236 Manual (PDF)
Aten UH3236 Quick Start Guide (PDF)
Aten UH3236 Specifications
| Computer Connections | 1 |
| Connectors | |
| Computer | 1 x USB-C Male (Black) |
| Device | 1 x USB 2.0 Type A Female (Black) 1 x USB 3.1 Gen1 Type A Female (Blue) |
| Video Output | 1 x HDMI Female (Black) 1 x VGA Female (Black) |
| LAN Ports | 1 x Gigabit Ethernet Female (Black) |
| Power | 1 x USB-C Female Support Power Delivery 3.0 for laptop charging up to 60W* *Supported Power Profiles include : 5V, 9V, 12V, 15V, 20V. *USB-C Power Adapter from laptop is needed for Power Delivery Pass-Through function. |
| Video Resolution | Single View: * HDMI - 3840*2160@30 or VGA - 1920*1200@60 *With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode. |
| Power Consumption | 5V#12.5WBTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.08 kg ( 0.18 lb ) |
| Dimensions (L x W x H) | 14.00 x 5.50 x 1.60 cm (5.51 x 2.17 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
UPC 672792009440
EAN 0672792009440
