Icron Ranger 2344 - 4-Port USB 2.0 Fiber Optic Extender - Singlemode (6.2 mi)
00-00416
Save $124.05
The Icron USB 2.0 Ranger 2344 (00-00416 or RG2344) extends high-speed USB 2.0 connections at up to 480 Mbps over 10km (6.2 miles) of singlemode fiber optic cable and is plug and play - no software drivers required - for all major operating systems: Windows, macOS, and Linux. This FCC/CE Class B certified, 4-port, USB 2.0, singlemode fiber extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

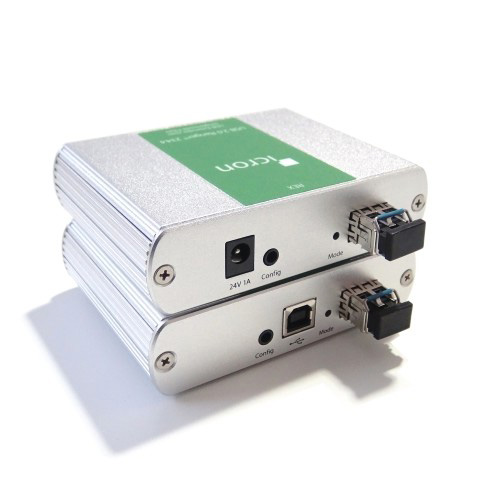

The Ranger 2344 incorporates ExtremeUSB technology, enabling users to extend USB beyond the standard 5m cable limit for USB 2.0 peripheral devices. This extender system is composed of two individual units, the LEX and the REX, and has the following key features:
Icron USB 2.0 Ranger 2344 Application Diagram
Icron USB 2.0 Ranger 2344 Features
- Supports USB 2.0 throughputs of up to 480 Mbps and distances up to 10 km (6.2 miles) of extension when directly connected over sinlgemode fiber
- Supplies up to 1 Amp per USB port; 2.5 Amps total shared for 600mA when all four ports are used concurrently
- Integrated hub provides ports for four USB devices, use hubs to add more
- Electrical isolation
- Reliable operation with USB 2.0 and 1.1 devices and hubs
- Support for new USB 3.0 host controllers and devices (up to 480 Mbps)*
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Includes the ExtremeUSB suite of features:
- Transparent USB extension
- Plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS and Linux
- Metal enclosures with FCC/CE Class B certification for resedntial/home use
*USB 3.0 devices will perform at USB 2.0 speeds if extended through the Ranger 2344 extender.
Applications
- Interactive white board
- Sensor/data acquisition
- Keyboard and mouse extension
- Industrial control
- Digital Signage
- Medical Device Connectivity
- Security: web camera, access control

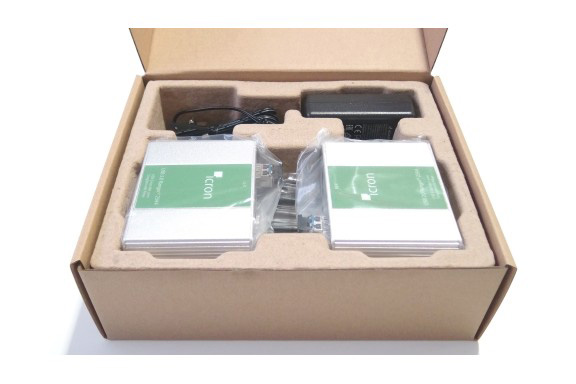

Ranger 2344 (00-00416) Package Contents
- (1) Icron USB 2.0 Ranger 2344 Transmitter (LEX)
- (1) Icron USB 2.0 Ranger 2344 Receiver (REX)
- (1) 6ft / 2m USB 2.0 Type A to Type B cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
Ranger 2344 Resources
Icron Ranger 2344 Datasheet (PDF)
Icron Ranger 2344 Manual (PDF)
Icron Ranger 2344 Quick Start Guide (PDF)
Icron Ranger 2344 (00-00416) Specifications
| RANGE | |
| Direct Connect | up to 10km (6.2 miles) over singlemode fiber optic cable |
| SPEEDS | |
| USB 2.0 | Up to 480 Mbps |
| USB 1.1 | Up to 12 Mbps |
| Mechanical | |
| LEX (Local Extender) | 3.9" x 3.0" x 1.0" (100mm x 76mm x 26.0mm) |
| REX (Remote Extender) | 3.9" x 3.0" x 1.0" (100mm x 76mm x 26mm) |
| Environmental | |
| Operating Temperature | 32°F to 122°F (07°C to 50°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Local Extender | |
| LEX unit USB Connector | 1 x USB Type B Receptacle |
| LEX unit Link Connector | 1 x SFP Duplex LC |
| Mounting | 4 surface mounting holes or optional mounting kit available |
| Enclosure Material | Silver anodized aluminium |
| Remote Extender | |
| REX unit USB Connector | 4 x USB Type A Receptacle |
| REX unit Link Connector | 1 x SFP Duplex LC |
| Available Current at REX | up to 1 Amp to USB port; 2.5 Amps total shared |
| Power Supply | 100-240V AC Input, 24V 1A DC Output. |
| Mounting | 4 surface mounting holes or optional mounting kit available |
| Enclosure Material | Silver anodized aluminium |
| Certifications | |
| EMC | FCC (Class B), CE (Class B) |
| Environmental | RoHS2, REACH, Conflict Minerals |
| Warranty | 2 year |
This is the replacement for the Icron USB 2.0 Ranger 2244 (P/N: 00-00264).
