ADDERView PRO Multi Screen DVI-I USB KVM (Four Monitor)
AV4PRO-DVI-QUAD-US
Save $197.50
Video Input: Dual Link DVI-I (DVI or VGA w/ adapter)
Video Output: Quad Monitor
The AdderView Pro AV4PRO-DVI-QUAD-US is a professional grade triple screen KVM switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers.
The AdderView Multiscreen AV4PRO-DVI-QUAD is designed to enable four triple-head computers to be controlled from a single high resolution KVM console three either dual link DVI or high definition analogue video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the AdderView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. Models are available supporting single, dual, triple or quad head DVI or VGA computers.

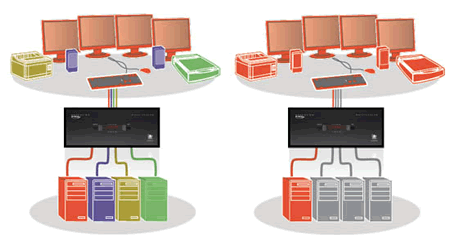

Adder AV4PRO-DVI-QUAD Layout
Adder AV4PRO-DVI-QUAD Features
True USB 2.0 emulation
Unlike most KVM switches, which only support the most basic keyboard and mouse features, Adder's revolutionary 'True Emulation' allows you to use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. You can also use any other USB interface device including graphics tablets, jog shuttles, joysticks, 3D explorers, and wireless bluetooth keyboard & mouse*.
Independent USB & Audio device switching
The AdderView Pro AV4PRO-DVI-QUAD includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. For example, use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another.
Broad High Speed device support - Transparent USB 2.0 Hub
An integrated transparent 2-port USB 2.0 hub allows a vast range of USB devices can be connected to the AV4PRO-DVI-QUAD from non standard keyboard / mouse devices to flash drives, printers and scanners.
Fast & Reliable Switching
Country code reporting, extended DDC EDID profile and continuous keyboard and mouse emulation ensure faultless operation. The USB 2.0 switching action has also been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.
Channel selection options
The AdderView Pro AV4PRO-DVI-QUAD can be switched using the front panel buttons, selectable keyboard hotkeys, 3 button mice, an On-Screen-Display (OSD), or using simple ASCII codes via serial RS232. Optionally, you can also use the RC4 remote switch to make your selection. These switching options allow you to rapidly reassign connected devices to any of the connected computers.
Multi-platform support
The AV4PRO-DVI-QUAD works with all known software and computer platforms, with PS/2, USB and Sun, including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
Plug and Play
AdderView Pro KVM devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Serial RS232 port for control, synchronization and upgrade
- Remotely switch AV4PRO-DVI-QUAD using simple ASCII codes
- Integration with RS232 controlled power switches to provide a complete hard reboot function
- Flash upgrade
Expand up to a 8-monitor KVM Switch
AV4PRO-DVI-QUAD can be linked with another Adder AV4PRO unit to create up to a 4-port 5-monitor, 6-monitor, 7-monitor, or 8-monitor KVM Switching system, by using a VSC41 synchronisation cable.
AV4PRO-DVI-QUAD-US Package Contents
- (1) AV4PRO-DVI-QUAD KVM Switch
- (1) Power adapter (20W) and US-specific power lead
- (1) Quick start guide and Safety document
- (4) Self-adhesive rubber feet
- (1) 2-Year Limited Warranty & Lifetime World Class Support
AV4PRO-DVI-QUAD Resources
Adder AV4PRO-DVI-QUAD Datasheet (PDF)
Adder AV4PRO-DVI-QUAD Manual (PDF)
Adder AV4PRO-DVI-QUAD-US Specifications
| Mechanical | |
| Physical | 2.5U High metal case |
| Width | 10.24 in. (26 cm.) |
| Height | 3.94 in. (10 cm.) |
| Depth | 5.91 in. (15 cm.) |
| Compatibility | |
| Hardware Compatibility | All computers with USB interfaces |
| Software Compatibility | Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc. Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack |
| Computer Connections at Switch | USB 2.0 type B, Dual link DVI-I, 3.5mm stereo jack |
| Local KVM Console Connection Video | 4x Dual-link DVI-D (Quad Monitor) |
| Keyboard/Mouse | 2 x USB Type A |
| Switched USB | 2 x USB2.0 Type A |
| Audio | 3.5mm stereo jack |
| Other connections | Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C |
| Power | 2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Approvals | CE, FCC |
This part is also known as the AV4PRO-DVI-QUAD-US.
Question: We use dual Barco medical monitors each with 1640x2048 resolution. Does the AV4PRO-DVI-QUAD-US support this resolution?
Answer: The native resolution of the Coronis monitors is 3280 x 2048. If the monitors have two DVI connections per monitor, which I believe they do, than the resolution 1640 (half of 3280) x 2048 should work. If the monitors have a single DVI connection there is the possibility that the switch will only work in grey scale mode.
Other considerations include:
Our switches work with most, but not all, Barco calibration software versions. You may also need to enable hybrid DDC to turn on two-way DDC.
This is a very specific application, to ensure a compatible solution it may be best to discuss your specific requirements over the phone. We can calculate the required bandwidth needed and find the appropriate switch for your application. Give us a call at 1-877-586-6654 to discuss your project in more detail.
Question: Does this switch Support wireless mice/keyboards - Specifically Logitech Unifying recivers
Answer: Thank you for your inquiry.
We have not tried this switch with wireless keyboards or mice. In general, however, using wireless keyboards and mice is very hit or miss when it comes to KVMs. This is related to the very different way in which wireless peripherals communicate and a KVM's internal mouse/keyboard emulation. We cannot guarantee a particular wireless setup will work with a particular KVM.
That being said, customers who attempt to use wireless keyboards and mice find Avocent switches, like this model: https://www.kvm-switches-online.com/4sv120bnd1.html, to work best. Alternatively, we have heard of some success when using a KVM equipped with a USB hub in addition to the USB console connectors. However, this typically results in some loss of functionality in regards to Hotkey switching and other keyboard supported functions.
Again, it is a hit or miss proposition and we cannot guarantee any switch will work. For best performance and compatibility, we always suggest wired keyboards and mice.
Question: We would like to switch all four monitors between two computers as a minimum design. Even better would be if we could switch from all four monitors on one computer to the second computer being able to use 1, 2, 3, or all monitors. Will your switches allow either of these configurations?
Answer: Thank you for your inquiry,
This Adder AV4PRO-DVI-QUAD would be the ideal solution for conveniently and reliably switching all four monitors between two computers. AV4PRO-DVI-QUAD features a variety of features that assure video quality, device connections, sync, and easy switching via a push button, serial, hot-key combo, or via an optional remote. This unit does however switch all 4 monitors at once (note, not all monitors need to be plugged).
If you want to be able to choose the monitors dynamically (i.e. display 1 and 2 from PC1 and display 3 and 4 from PC2), you could use a 8 port KVM-Over-Ip Switch instead (or as complementary) like the Raritan DKX3-108. Essentially, you would connect each of your computer DVI outputs to the ports, and the keyboard and mouse on i.e. ports 1 and 5. With this configuration, you could connect and pull up any of the monitor sessions as individual windows using a standard web browser. Switching would not be quite as fluid as with the AV4PRO-DVI-QUAD, but we do have a lot of customers using this method.
For further assistance, please feel free to contact your KVM Switches Online sales representative directly.
