1U Dual Slide 17" LCD & Keyboard Drawer w/ 3-Console 16-Port Cat6 KVM Switch

D117-MU1603e

$3,708.00$3,250.00
Save $458.00
FREE Shipping on orders over $100

The D117-MU1603e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 3-console (1 x local; 2 x remote), 16 port Matrix Multi-User Cat6 KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

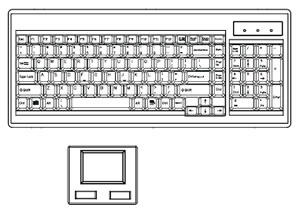

"Ne" style keyboard included with D117-MU1603e
"Ne" style keyboard included with D117-MU1603e

D117-MU1603e Features & Benefits:

  • 1U dual slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Combo interface either PS/2 or USB  for single console drawer
  • Enhanced aesthetics with new molded front panel and two point lock

Matrix Multi-User Cat6 KVM Switch Features & Benefits:

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Increased distance of 40m between your server & KVM switch
  • Provide a diversity of consoles to access servers independently and simultaneously
  • Multi lingual on screen display menu
D117-MU1603e Rackmount LCD Diagram
D117-MU1603e Rackmount LCD Diagram

D117-MU1603e Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Weight27.7 lbs. (12.6 kg.)
LCD Monitor
4:3 Screen Size17" TFT
Native Resolution1280 x 1024
Brightness (cd/m2)250
Contrast Ratio1000 : 1
Viewing Angle (H x V)160° x 160°
Display Color16.7M
aCTIVE AREA (MM)338x270
Signal InputVGA
KVM Switch
KVM Port16 x RJ45 connector
KVM ConnectivityDVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local ConsoleNil for LCD console drawer version
Cat6 Remote Console1 for MU-1602
Remote I/O RJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
PowerAC power adapter
 Max. 48 Watt, Standby 5 Watt
Environmental

 		Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
