2K DVI-D Dual Link KVM over IP Receiver with PoE

KE6912R

$1,858.86
Series: KE6912
  • KE6912
  • + Compare Family
Version: Receiver
Video Input: DVI-D up to 2K (2560 x 1600 @60Hz)
Power Method: Power-Over-Ethernet
FREE Shipping on orders over $100

The Aten KE6912 2K DVI-D Dual Link KVM over IP Extender solution consists of a high performance IP-based transmitter (KE6912T) that connects to the computer and receiver (KE6912R) that provides console access from a separate location. The KE6912 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation. The KE6912 supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with minimal latency. The extender also supports 2K x 2K video resolution (2048 x 2048 @ 60Hz), which is used widely in the Air Traffic Control (ATC) industry.

The KE6912 supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN, ensuring 24/7 availability of remote access to servers. To connect via the SFP slot, the extender supports 1Gbps SFP fiber module* expansions, enabling connections via fiber optic network to extend transmission distances up to 10km.

The KE6912 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.

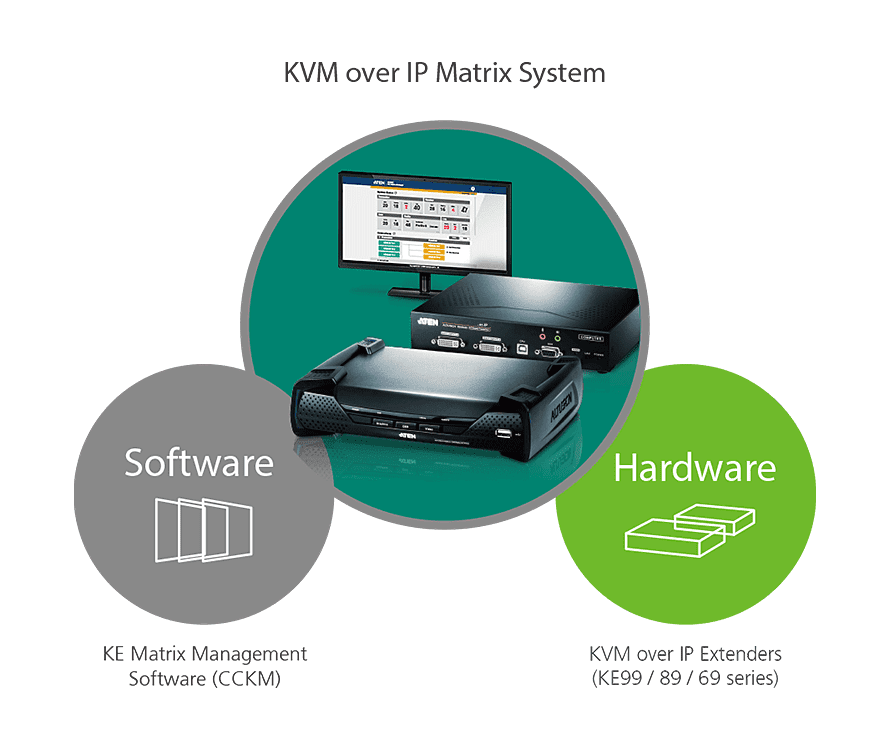

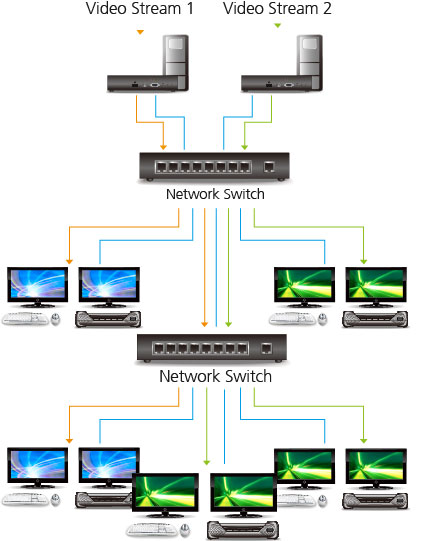

The KE6912 can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack-mount design. As an IP-based matrix extender, the KE6912 can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in traffic management centers, retail surveillance centers, facility situation rooms, command control centers, utilities process control centers, broadcasting distribution monitoring systems, network operations centers (NOC), and many other industries where matrix extending is required.

*The SFP module (2A-136G / 2A-137G) is sold separately.
**Refer to Aten KE Series page for more about the KE Series extenders.

KE6912R Application Diagram

Aten KE6912R Features

  • Exclusive Features for ATC Industry*
    • Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
    • Adaptive Fast Switching - automatically fast switches between different Tx video resolutions on a Rx display within 0.3 second
    • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
    • "Push" and "Pull" - share content instantly to/from a single Rx or video wall by just one click
    • Authentication Lock - automatically logs in when the power of the system is resumed after power off
    • Connection Redundancy - automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
    • Disconnection Alert - Pop-up warning message and looping alarm beeping notify users the disconnection status
  • Advanced Features*

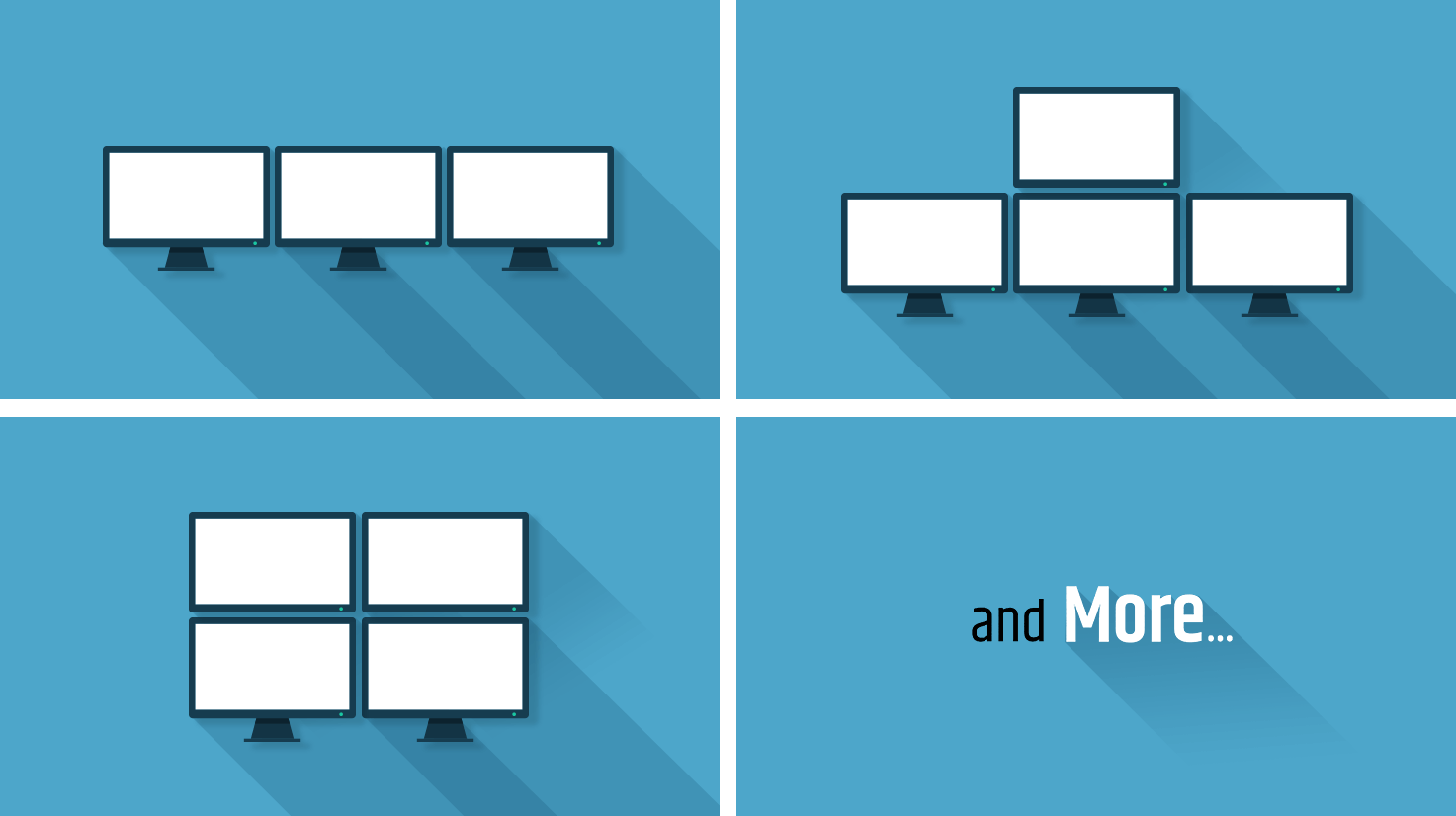

    • Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
    • Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date
    • Virtual Transmitter - independently streams video, audio, USB, and serial sources from different Tx
    • Supports both internal and external authentication - external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings - administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
    • Configurable user and group permissions for access and control of KE devices
    • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
    • Rx access control - users at the Tx local console can enable / disable Rx access by simply pressing a control button**

      *These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)
      **The KVM over IP Access Control Box (2XRT-0015G) is sold separately.
  • Hardware
    • Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
    • Supports stereo speakers and stereo microphone
    • Supports Virtual Media or vUSB
    • Auto-MDIX - automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 2KV surge protection
    • Fanless design for silent operations that are energy efficient
    • Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failover
    • Support 1Gbps SFP fiber module expansions*** up to 10 km
    • 1 DC Jack + PoE
    • Support Power over Ethernet (PoE) function - compliant with the IEEE 802.3at standard
    • Rack Mountable - Mounting options:
      •2X-021G Dual Rack Mount Kit
      •2X-031G Single Rack Mount Kit
      ***The SFP module (2A-136G / 2A-137G) is sold separately.
  • Management
    • Centralized KE Series management software - KE Matrix Management Software (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
    • Dual console operation - controls your system from both the transmitter's and receiver's keyboard, monitor, and mouse consoles
    • Local console for emergency operation
    • OSD (On Screen Display) on the receiver configures both Tx / Rx devices
    • EDID Expertª - selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview - allows users to view the video of up to 36 displays on one screen
    • Video Compression Level - allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
    • CLI - administrators can control all KE devices via RS-232 or Telnet by issuing commands
    • RS-232 serial ports - allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
    • Compatible with all KE devices
  • Security
    • Dedicated LAN port for KE direct connections - can be isolated from the corporate network
    • Secure data transmission - AES encryption to secure Video / Keyboard / Mouse / Data transmission
    • Supports industry standard Transport Layer Security (TLS) protocol
  • Virtual Media
    • Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Supports Smart Card/CAC Reader

Aten KE6912R Use Cases

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx & KE99xx models can also be optionally connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

Aten KE6912R Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE6912R Package Contents

Aten KE6912R Back Rear
  • (1) KE6912R 2K DVI DL KVM over IP Receiver with PoE
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE6912R Resources

Aten KE6912R Downloads & Resources Aten KE6912R Datasheet (PDF)
Aten KE6912R Manual (PDF)
Aten KE Matrix Implementation Guide (PDF)
Aten KE6912R Quick Start Guide (PDF)
Aten KE6912R CAD Technical Drawing (PDF)

Aten KE6912R Specifications

Connectors
Virtual Media2 x USB Type A Female (White)
Console Ports2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM PortsN/A
Power1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black, PoE)
1 x SFP Slot
Switches
OSD1 x Pushbutton
Video1 x Pushbutton
Graphics1 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Mode Selection1 x Slide Switch (Extension, RS-232 Config)
LEDs
Link 10 / 100 / 1000 Mbps1 (10: Orange / 100: Orange & Green / 1000: Green)
Power1 (Blue)
Local1 (Green)
Remote1 (Green)
Emulation
Keyboard / MouseUSB
Power ConsumptionDC48V:11.27W:78BTU
Video ResolutionUp to 2560 x 2048 @ 50Hz/2560 x 1600 @ 60Hz
Environmental
Operating Temperature0-50¡C
Storage Temperature-20-60¡C
Humidity0-95% RH, Non-condensing
Physical Properties
HousingMetal
Weight1.28 kg ( 2.82 lb )
Dimensions (L x W x H)22.75 x 17.16 x 5.48 cm
(8.96 x 6.76 x 2.16 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
