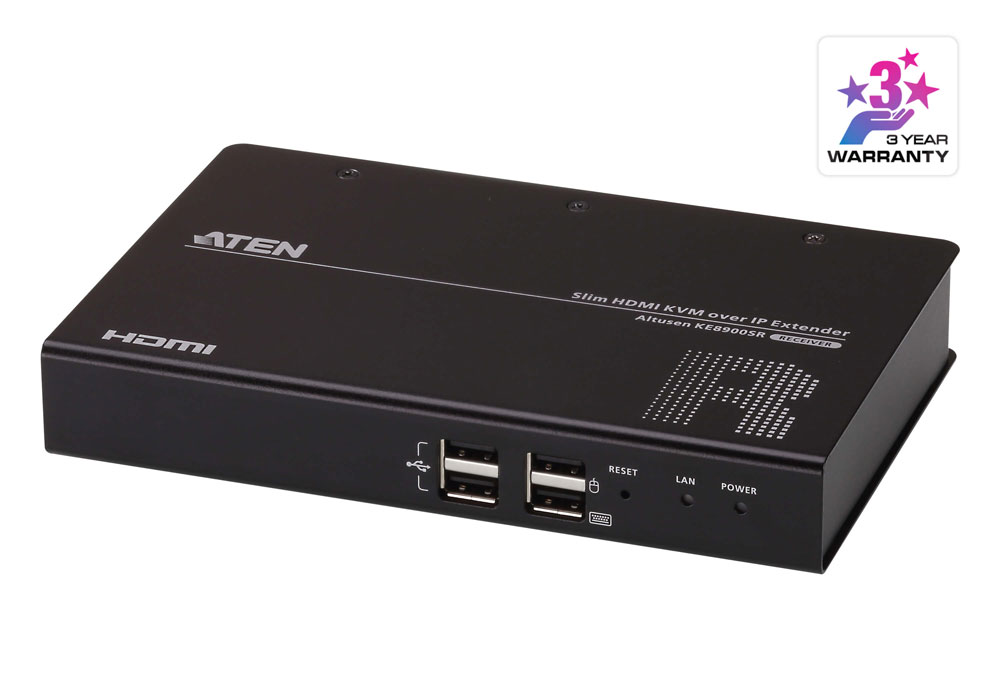

Slim 1080p HDMI Single Display KVM over IP Receiver

KE8900SR

$842.00$838.72
Save $3.28
Series: KE8900S
  • KE8900S
  • + Compare Family
Version: Receiver
Video Input: HDMI up to 1920 x 1200 (@60Hz)
Power Method: Standard AC
FREE Shipping on orders over $100

The Aten KE8900S Slim HDMI KVM over IP Extender solution is a pair of compact and affordable high performance IP-based transmitter (KE8900ST) / receiver (KE8900SR) that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, HDMI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation. The KE8900ST or KE8900SR can be paired with any KE Series* receiver or transmitter for a savings solution that stays within budget.

The KE8900ST supports HDMI video input from the computer while the KE8900SR supports one HDMI monitor output, providing video resolutions up to 1920 x 1200 and flawless and lossless video compression quality with minimal latency. The extender also supports Virtual Media function and RS-232 serial commands. In addition to a DC power jack, the KE8900ST transmitter includes an extra DC terminal block for convenient installation.

The KE8900ST can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack mount design. Moreover, the KE8900S can be used as a point-to-point/point-to-multipoint/multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

KE8900SR Application Diagram

Aten KE8900SR Features

  • Hardware
    • Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
    • Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
    • USB Virtual Media Support
    • Compliant with HDMI 1.4a and HDCP 1.4
    • Auto-MDIX - automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 1KV surge protection
    • Slim, light and fanless design for silent operations that are energy efficient
    • Support connection via Gigabit Ethernet port
    • Rack Mountable* and Wall Mountable
    • Mounting options:
      •  VE-RMK 1U Extender Rack Mount Kit*
  • Management
    • Remotely access computers on your KVM installation via intranet
    • OSD (On Screen Display) on the Receiver configures both Tx/Rx units
    • EDID Expertª - selects optimum EDID settings for smooth power-up and highest quality display
    • On-screen Preview - allows users to view the video of up to 36 displays on one screen
    • Video Compression Level - allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
    • CLI - administrators can control all KE devices via RS-232 or Telnet by issuing commands
    • RS-232 serial ports - allow you to connect to a serial terminal for text menu, CLI, or serial devices such as touch screens and barcode scanners
    • Compatible with all KE devices
  • Security
    • Dedicated LAN port for KE direct connections - can be isolated from the corporate network
    • Secure data transmission - AES encryption to secure Video/Keyboard/Mouse/Data transmission
    • Supports industry standard Transport Layer Security (TLS) protocol
  • Virtual Media
    • Virtual Media enables file transfers, OS patching, software installations and diagnostic testing
    • Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Support Smart Card/CAC Reader
  • Advanced Features**
    • Flexible connections - allows multiple extender and matrix connections for multi-display installations and video wall applications
    • "Push" and "Pull" - share content instantly by just one click
    • Fast Switching - switch between different remote video resolutions on a local display within 0.3 second
    • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers
    • Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
    • Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date
    • Virtual Transmitter - to stream video, audio, USB, and serial sources independently
    • Support both internal and external authentication - external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings - administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
    • Configurable user and group permissions for access and control of KE devices
    • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications

      Note: **These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)
  • Recommended Network Switches
    • Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
      •Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
      •HP Procurve 2920
      •H3C S5120
      •Huawei S5700
      •DLink DGS-1510

      Please refer to this Aten FAQ on more information on network switches and how to select network switches for Aten KE-Series products.

Aten KE8900SR Use Cases

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx & KE99xx models can also be optionally connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

Aten KE8900SR Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE8900SR Package Contents

Aten KE8900SR Back Rear
  • (1) KE8900SR Slim HDMI Receiver
  • (1) Power Adapter
  • (1) HDMI Lockpro
  • (1) Mounting Kit
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE8900SR Resources

Aten KE8900SR Downloads & Resources Aten KE8900SR Datasheet (PDF)
Aten KE8900SR Manual (PDF)
Aten KE Matrix Implementation Guide (PDF)
Aten KE8900SR Quick Start Guide (PDF)
Aten KE8900SR CAD Technical Drawing (PDF)

Aten KE8900SR Specifications

Connectors
Virtual Media2 x USB Type A Female (Black)
Console Ports2 x USB Type A Female (Black)
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
Power1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black)
Switches
Reset1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps1 (10: Orange / 100: Orange & Green / 1000: Green)
Power1 (Blue)
Emulation
Keyboard / MouseUSB
Power ConsumptionDC5V:4.35W:46BTU
Video ResolutionUp to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature0-50¡C
Storage Temperature-20-60¡C
Humidity0-95% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.64 kg ( 1.41 lb )
Dimensions (L x W x H)18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
UPC / EAN Barcode icon
UPC 672792009525
EAN 0672792009525
