1U 17" Rack Mount Monitor Keyboard Drawer w/ 2-Console 16-Port CAT5 IP KVM

N117-UIP1602

$2,726.00$2,390.00
Save $336.00
FREE Shipping on orders over $100
The N117-UIP1602 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and integrated 2-console 16 port IP Cat5 KVM Switch.

This model comes with either of the following keyboard options:

Keyboard Options

N117-UIP1602 Rackmount LCD Features:

  • 104-key keyboard with either touchpad or trackball
  • 1U 17" LCD console drawer
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Short depth design of 500mm (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock

IP Cat5 KVM Switch Features & Benefits:

  • High density Cat5 KVM with either 16 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Secure remote user access across the world wide web
  • Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
  • Multi lingual on screen display menu

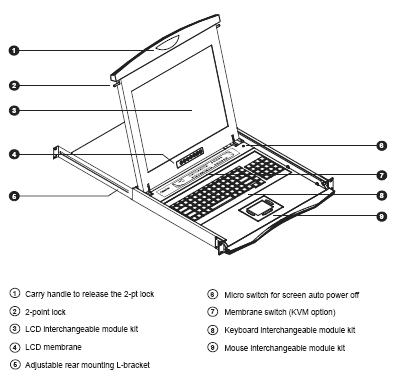

Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 589 x 768mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.1 lbs. (12.3 kg.)
Gross Weight36 lbs. (16.5 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.2 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)338 x 270
Signal InputVGA
KVM Switch
KVM Port16 x RJ-45 connector
KVM ConnectivityDVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
 Local ConsoleNil for LCD console drawer version
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
PowerAuto sensing 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
Question: Does this unit include any dongles?
Answer: Thank you for your inquiry. The N117-UIP1602 comes with 8 USB-VGA dongles: part number DG-100s.
