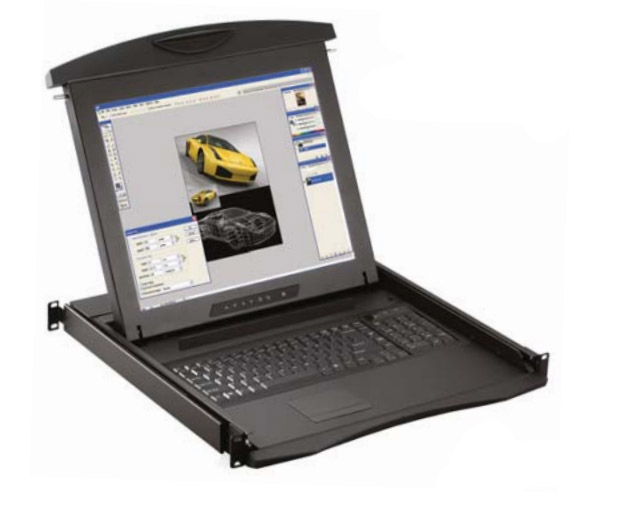

1U 19" Rack Mount Monitor Keyboard Drawer w/ 2-Console 16-Port Cat5 KVM Switch

N119-U1602

$2,644.00$2,318.00
Save $326.00
FREE Shipping on orders over $100
The N119-U1602 is a 1U Rackmount Monitor Drawer with 19" LCD,  keyboard with trackball or touch-pad mouse and integrated 2-console 16 port Cat5 KVM switch.

This model comes with either of the following keyboard options:

Keyboard Options

N119-U1602 Rackmount LCD Features:

  • 1U 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500m (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock

Two Console Cat5 KVM Switch Features & Benefits:

  • High density Cat5 KVM with 16 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Mix legacy PS/2 servers with newer USB and Sun solutions
  • Multi lingual on screen display menu


Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 589 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.5 lbs. (12.5 kg.)
Gross Weight37.4 lbs. (17 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.7 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Signal InputVGA
KVM Port
Number of ports16
ConnectorRJ-45
ConnectivityDVI-D/VGA connector dongle up to 40 meters (132 ft) via Cat6/Cat5 cable
Local ConsoleNil for LCD console drawer version
Management
Multilingual OSDEnglish, France, German, Spanish, Italian, Russian, Chinese, Japanese
SecurityPassword enable & disable, up to 8 users profile for port access
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
