1U 17" Rack Mount LCD Sun Keyboard Drawer w/ 2-Console 16-Port Cat5 KVM Switch
NS117-U1602
$1,576.00

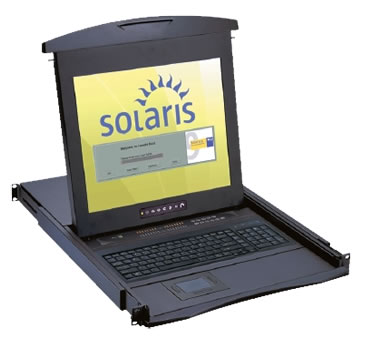

The NS117-U1602 is a 1U Rackmount Monitor Drawer with 17" LCD and SUN keyboard with trackball or touch-pad mouse, and integrated 2-console, 16 port Cat5 KVM Switch.
This model comes with either of the following keyboard options:
NS117-U1602 Rackmount LCD Features:
- 1U 17" LCD console drawer
- Direct support for SUN Micro 1152 x 900 native resolution
- 104-key keyboard with SUN hotkeys
- Mix USB & SUN with Multi- Platform switch capability
- Secure remote user access across the world wide web
- Cost efficient DB-15 USB KVM integration
- Short depth design of 500mm (19.7") only
- Slide rails with fixed positions to prevent drawer movement when typing
- Multi lingual on screen display menu
- Enhanced aesthetics with molded front handle and two point lock
Two Console Cat5 KVM Switch Features & Benefits:
- High density Cat5 KVM with either 16 ports in 1U
- Increased distance of 40m between your server & KVM switch
- Mix PS/2, USB & SUN with Multi- Platform switch capability
- Secure remote access over 500 ft of Cat5
- Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
- Mix legacy PS/2 servers with newer USB and Sun solutions
- Multi lingual on screen display menu
Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 589 x 768 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.1 lbs. (12.3 kg.) |
| Gross Weight | 36 lbs. (16.5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 17" TFT |
| Resolution | 1152 x 900 (Direct) |
| Brightness (cd/m_) | 250 |
| Color Support | 16.2 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 160° |
| Display Area (mm) | 338 x 270 |
| Signal Input | VGA or DVI-D |
| Plug & Play DDC | EDID 1.3 |
| Console Connectii\vity | DVI-D/VGA connector dongle up to 40 meters (132 ft) via Cat6/Cat5 cable |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| KVM Port | |
| Number of ports | 16 |
| Connector | RJ-45 |
| Local Console | Nil for LCd console drawer version |
| Remote Console | |
| Connector | 1 x DB 15-pin, VGA |
| Resolution | Up to 1600x1200 (500ft) |
| Input device | 2 x USB type A for keyboard & mouse |
| Remote I/O | RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet |
| Compensation | Auto adjust for cable length |
| Expansion | Up to 256 servers by 8-level cascade |
| KVM Power | |
| Input | Auto sensing 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional) |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| Regulatory Approvals | FCC, CE |
