1U 17" Rack Mount Monitor Sun Keyboard Drawer w/ 32-Port Cat5 KVM Switch
NS117-U3201
$1,554.00
The NS117-U3201 is a 1U Rackmount Monitor Drawer with 17" LCD and SUN keyboard with trackball or touch-pad mouse, and integrated 32 port Cat5 KVM Switch.

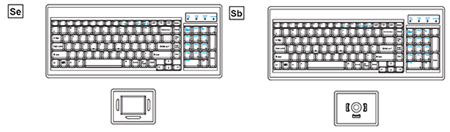

This model comes with either of the following keyboard options:
NS117-U3201 Rackmount LCD Features:
- 1U 17" LCD console drawer
- Direct support for SUN Micro 1152 x 900 native resolution
- 104-key keyboard with SUN hotkeys
- Mix USB & SUN with Multi- Platform switch capability
- Secure remote user access across the world wide web
- Short depth design of 500mm (19.7") only
- Cost efficient DB-15 USB KVM integration
- Slide rails with fixed positions to prevent drawer movement when typing
- Multi lingual on screen display menu
- Enhanced aesthetics with molded front handle and two point lock
Cat5 KVM Switch Features & Benefits:
- High density Cat5 KVM with either 32 ports in 1U
- Increased distance of 40m between your server & KVM switch
- Enhanced rear cable management using Cat5 cords
- Mix PS/2, USB & SUN with Multi- Platform switch capability
- Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
- Traditional Cat5 cords, when compared to Coaxial cables, provide simple cable management
- Mix legacy PS/2 servers with newer USB and Sun solutions
- Multi lingual on screen display menu

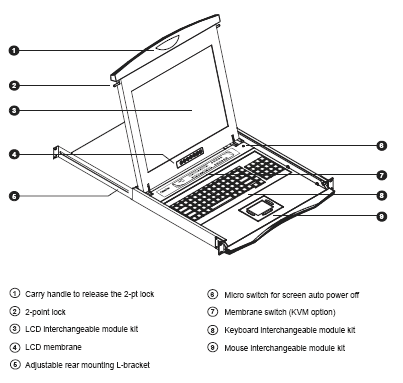

Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 589 x 768 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.1 lbs. (12.3 kg.) |
| Gross Weight | 36 lbs. (16.5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 40 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 17" TFT |
| Resolution | 1152 x 900 (Direct) |
| Brightness (cd/m_) | 250 |
| Color Support | 16.2 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 160° |
| Display Area (mm) | 338 x 270 |
| Signal Input | VGA or DVI-D |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| KVM Ports | |
| Number of ports | 32 |
| Connector | RJ-45 |
| Connectivity | DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable |
| Local Console | Nil for LCD console drawer version |
| Remote Console | |
| Connector | 1 x DB 15-pin, VGA |
| Resolution | Up to 1600 x 1200 (500 ft) |
| Input device | 2 x USB type A for keyboard & mouse |
| Remote I/O: | RJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft |
| Expansion | Up to 256 servers by 8-level cascade |
| Regulatory Approvals | FCC, CE |
