1U 19" Sun Keyboard & Monitor Drawer w/ 2-Console 32-Port CAT5 IP KVM
NS119-UIP3202
$2,032.00

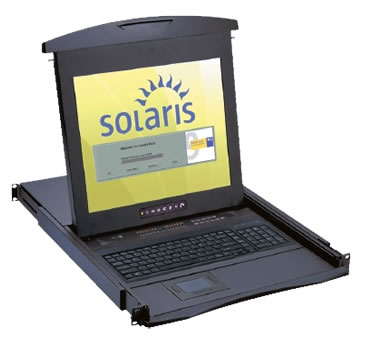

The NS119-UIP3202 is a 1U Rackmount Monitor Drawer with 19" LCD, SUN Keyboard with trackball or touch-pad mouse and integrated 2 console, 32 port IP Cat5 KVM switch.
This model comes with either of the following keyboard options:
NS119-UIP3202 Rackmount LCD Features:
- 1U 19" LCD console drawer
- Direct Support for SUN Micro 1152x900 native resolution
- Secure remote user access across the world wide web
- 104-key keyboard with SUN hotkeys
- Short depth design of 500mm (19.7") only
- Enhanced aesthetics with molded front handle and two point lock
IP Cat5 KVM Switch Features & Benefits:
- High density Cat5 KVM with 32 ports in 1U
- Increased distance of 40m between your server & KVM switch
- Mix PS/2, USB & SUN with Multi- Platform switch capability
- Mix legacy PS/2 servers with newer USB and Sun solutions
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations

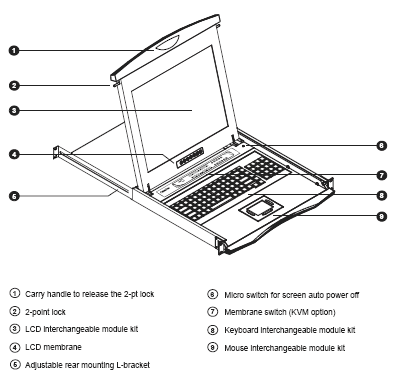

Structural Diagram
Specifications:
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 19.7 in. (500 mm.) |
| Package Dimensions | 5.5 x 23.2 x 30.2 in. (140 x 589 x 768 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.5 lbs. (12.5 kg.) |
| Gross Weight | 37.4 lbs. (17 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 19" TFT |
| Resolution | 1280 x 1024 (Native) |
| Brightness (cd/m2) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Display Area (mm) | 376 x 301 |
| Signal Input | VGA or DVI-D |
| Regulation Approval | cUL, FCC, & CE certified |
| KVM Switch | |
| Ports | 32 |
| Connector | RJ-45 |
| Connectivity | DVI-D/VGA connector dongle up to 40 meters (132 feet) via Cat6/Cat5 cable |
Local Console | Nil for LCD console drawer version |
| IP Remote Console | |
| Connector | RJ45 Ethernet |
| Resolution | Up to 1600x1200 |
| User management | 15-user login, 1 x active user |
| Expansion | Up to 256 servers by 8-level cascade |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
