2U 19" Rack Mount Monitor Sun Keyboard Drawer w/ 2-Console 16-Port CAT5 IP KVM
S219-UIP1602

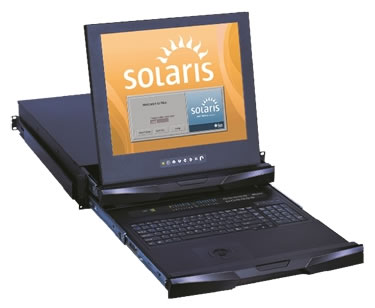

The Cyberview S219-UIP1602 is a 2U 19" Rackmount LCD with 16-port CAT5 IP KVM, 2 console (1xLocal + 1xRemote), "S" keyboard w/ SUN hot keys. This rack mount monitor features a 2U design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.
Cyberview S219-UIP1602 Features:
- 2U 19" TFT LCD screen
- Allow viewing through closed glass cabinet door
- The screen will sync with most SUN resolution, including 1152 x900 @ 66 or 76Hz
- 1280 x 1024 native graphic resolution
- Compatible with SUN, Apple, IBM, DELL, HP and USB server
- 104-key SUN-compatible keyboard w/ 3 button trackball supports SUN keys, including Stop, Cut, Paste, Compose, etc.
- Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
- All mounting hardware included
- Support VGA resolution up to 1920 x 1440
Cyberview S219-UIP1602 Specifications:
| Mechanical | |
| Height | 3.5 in. (8.8 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 23.6 in. (60 cm.) |
| Weight | 42 lbs. (19 kg.) |
| Package Dimensions | |
| Height | 8.7 in. (22 cm.) |
| Width | 23.6 in. (60 cm.) |
| Depth | 29.9 in. (76 cm.) |
| Weight | 55 lbs. (25 kg.) |
| Environmental | |
| Operation Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -5 to 65 Degree Celsius |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| LCD Screen | |
| Manufacturer/Type | Samsung/ grade A industrial TFT LCD Panel |
| Origin | South Korea |
| Display Size | 19" inch diagonal |
| Resolution | 1152x900 with 66 / 76Hz 1,280 x 1,024 with 60 / 70 / 75Hz |
| Display color | 16.2 M |
| Brightness | 300cd/m2 |
| Contrast Ratio | 700:1 |
| Response Time | TR=1.7/ Tf=6.3 ms |
| Pixel Pitch | 0.294 (H) x 0.964 (V) mm |
| Viewing Angle | 75/ 75/ 75/ 60 (L/R/U/D) |
| Signal Input | VGA, Analog RGB |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| LCD MTBF | 50,000 hrs |
| General | |
| Form Factor | 2U rack mounting, separate slide-out screen & keyboard |
| Color | Purple on LCD panel, light gray on keyboard drawer |
| Compatibility | Compatible with SUNs, IBMs, HPs, DELLs and Mix PCs with USB-enable |
| Support Platform | Solaris, MS Windows 2000/XP, Linux and SCO Unix |
| Server-side Interface | HD15 VGA, USB Type A for KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 33.2" (390 to 845mm) |
| Input Device | |
| Keyboard | 104-key USB keyboard with built-in SUN keys [Including stop, cut, paste, compose, copy and help] |
| Mouse | 3-button trackball mouse |
| Standards | |
| EMC Approved | FCC, CE and VCCI |
