Cyberview PS/2 8-port KVM Switch
CV-801
$279.00
Discontinued
Replaced by: Cyberview CV-S801
Alternative options: Contact Us
Model: CV-801
| 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|
| CV-S1601 | CV-S801 | 1 | 0 | 0 |
| IP-1602 | IP-802 | 1 | 1 | 0 |
| M-IP1613 | M-IP813 | 1 | 1 | 1 |
| M-IP1624 | M-IP824 | 1 | 2 | 1 |
| M-IP1614 | M-IP814 | 1 | 1 | 2 |
| CV-1602 | CV-802 | 1 | 0 | 1 |
| M-1602 | M-802 | 1 | 0 | 1 |
| M-1603 | M-803 | 1 | 0 | 2 |
| M-1604 | M-804 | 1 | 0 | 3 |
*Part numbers starting with 'M-' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The Cyberview CV-801 is KVM switch with features such as adjustable brackets , On screen display control and hotkey command to provide effective assistant for an administrator to control multiple PCs. The Cyberview CV Series provides cost effective for your limited IT budget over using sets of keyboard, monitor and mouse. Also, it will be space saving for your compact environment rack.
NOTE: Qty 8 CD-6 cables are included
CV-801 Features
- Support multiple keyboard languages.
- LED Display for easy status monitoring.
- Buzzer sound for switching port confirmation.
- Keyboard status restored when switching PCs.
- Provide Console PS/2 to PC serial mouse conversion
- Using Standard PS/2 Keyboard, VGA, PS/2 Mouse cable.
- No Dipswitch setting needed and auto detect cascade bank
- Built-in one extra daisy chain port and no waste any PC port.
- Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
- Support eight characters password protection and search PC server name.
- Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the other fully compatible MS mouse.
- Support DOS, Win3.X, Win95/98/98SE/2000/ME, WinNT, Netware, Unix, Linux
- Hot Plug - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
- No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
- Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds.

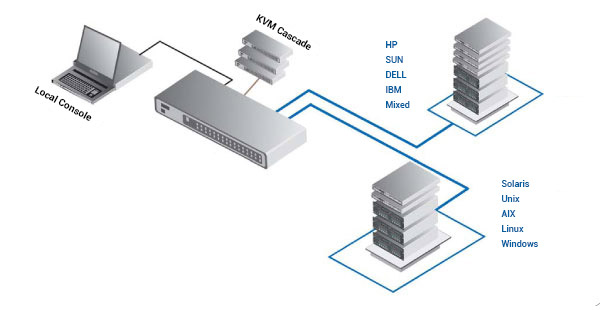

CV-801 Layout

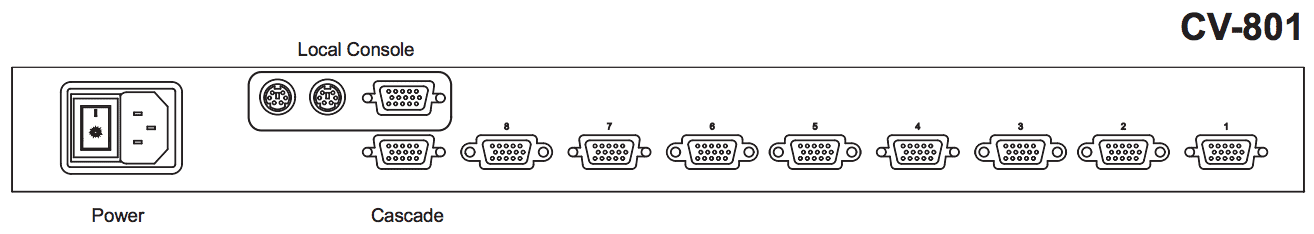

CV-801 Rear Diagram

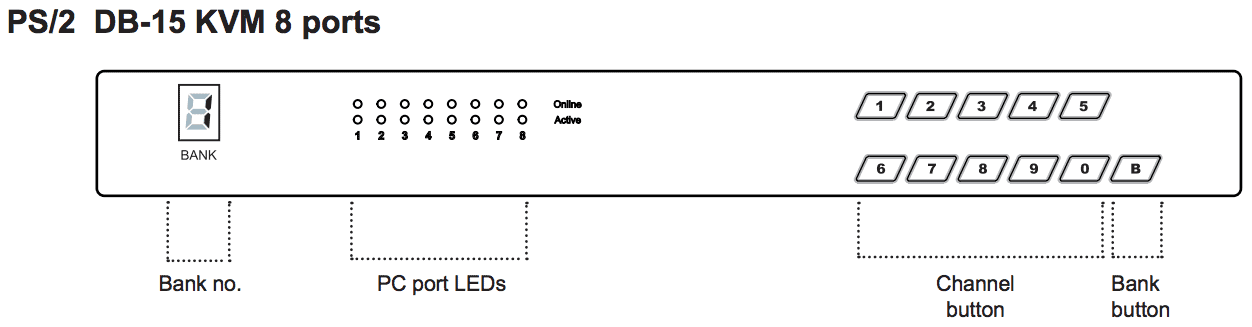

CV-801 Front DiagramCV-801 Package Contents
- (1) CV-801 KVM Switch
- (8) CD-6 6ft VGA PS/2 KVM cable - for KVM
- (1) 1U, 19" Rack mount kit w/ brackets & screws
- (1) Power adapter w/ US power cord - for KVM
Note, DC power excludes AC power cord. - (1) 2-Year manufacturer warranty
- *Please note, package contents may change with unit 'options'.
CV-801 Resources
CV-801 Datasheet (PDF)
CV-801 User Manual (PDF)
CV-801 Specifications
| Local console | |
| PC port | 8/16 |
| Console Port | - |
| PC Selection | OSD menue, hot key, push button |
| LED | 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) |
| On screen display control | Yes |
| Scan Intervals | 5~99sec |
| Keyboard and mouse emulation | PS/2 |
| VGA Resolution (Max.) | 1920x1440 |
| Cat5 Length | N/A |
| Bandwidth | 200Mhz |
| Cascade Level | 8 levels |
| PC Connection | 120/128 |
| Housing | Metal |
| KVM Switch Power Adapter | DC 12V |
CV-801 is also known as:
- 801
Question: After receipt of order, what is the expected delivery lead time for one of these CV-801 switches?
Answer: Thank you for your inquiry,
I have forwarded your contact info to sales support - they should get back to you soon with the estimated delivery date for your order.
Please let us know if there is anything else we can help you with.
Question: I wanted to ask you if this type of KVM is compatible with Gen10 Servers?
Answer: Thank you for your inquiry,
We do have some customers report there might be an issue on HD-15 KVM when changing channels (but not all customers, we guess it might be issue of the patch on update); however, the symptom should be resolved when using a CyberView Cat6 KVM switch. Moreover, the Cat6 KVMs has more variety on video & keyboard mouse input for selection - such as VGA (PS/2 or USB), DVI-D, HDMI & DP.
Answer: Thank you for your inquiry,
I have forwarded your contact info to sales support - they should get back to you soon with the estimated delivery date for your order.
Please let us know if there is anything else we can help you with.
Question: I wanted to ask you if this type of KVM is compatible with Gen10 Servers?
Answer: Thank you for your inquiry,
We do have some customers report there might be an issue on HD-15 KVM when changing channels (but not all customers, we guess it might be issue of the patch on update); however, the symptom should be resolved when using a CyberView Cat6 KVM switch. Moreover, the Cat6 KVMs has more variety on video & keyboard mouse input for selection - such as VGA (PS/2 or USB), DVI-D, HDMI & DP.
