| 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|
| CV-S1601 | CV-S801 | 1 | 0 | 0 |
| IP-1602 | IP-802 | 1 | 1 | 0 |
| M-IP1613 | M-IP813 | 1 | 1 | 1 |
| M-IP1624 | M-IP824 | 1 | 2 | 1 |
| M-IP1614 | M-IP814 | 1 | 1 | 2 |
| CV-1602 | CV-802 | 1 | 0 | 1 |
| M-1602 | M-802 | 1 | 0 | 1 |
| M-1603 | M-803 | 1 | 0 | 2 |
| M-1604 | M-804 | 1 | 0 | 3 |
*Part numbers starting with 'M-' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The M-IP1614 is an 16-port multi-user IP KVM Switch. This matrix IP KVM features 4 consoles, 1 x local, 2 x remote via CAT6 and 1 x IP. The M-IP1614 supports multiple input styles and multiple platforms. Mix and match Mix legacy PS/2 servers with newer USB and SUN solutions across Windows, Linux and other platforms.
The CyberView M-IP1614 is a cost effective solution for anywhere, anytime KVM over IP access for BIOS level remote server management.

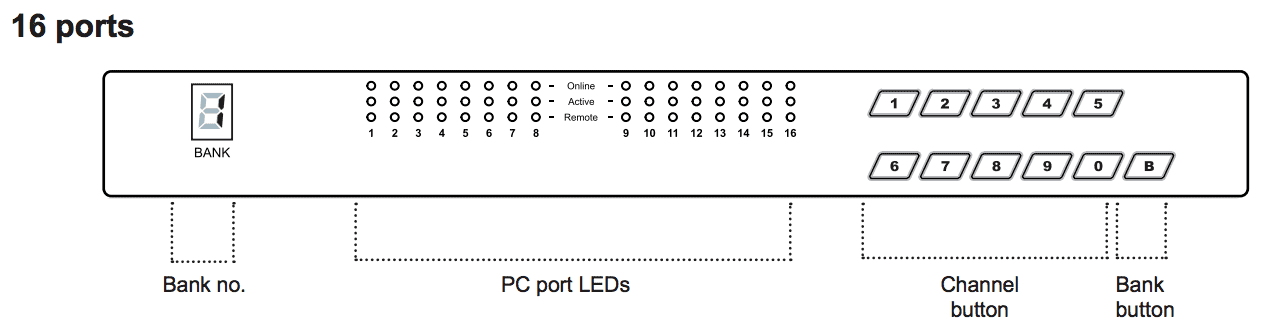

M-IP1614 Front Diagram
Use a VNC Viewer or Java Web Browser to connect to M-IP1614 servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

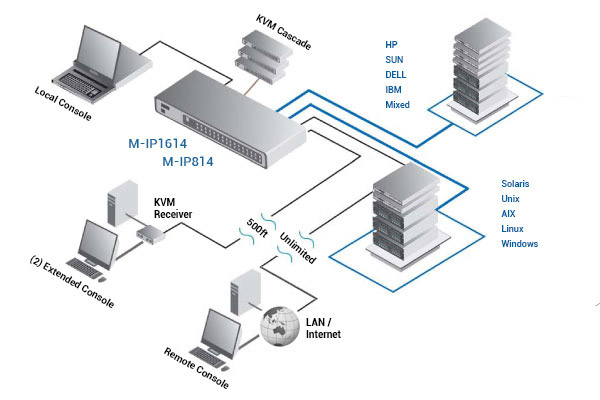

The M-IP1614 VGA DB-15 Matrix KVM can be controlled by two users from up to 500ft (150m) away over CATx cable using the integrated CATx extenders with the included KVM receivers.
The CyberView VGA DB-15 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
One local user, two extended users, and one remote IP user can control 16 multi-platform servers simultaneously. Up to 15 different IP user profiles can be stored with personal settings for each user defined.
The CyberView M-IP1614 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVM units using CMC-8 cables. The M-IP1614 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of M-802 / M-1602 or MU-1602 / MU-3202 KVM switches.
CyberView M-IP1614 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView M-IP1614 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
M-IP1614 Datasheet (PDF)
M-IP1614 Manual (PDF)
M-IP1614 KVM-Over-IP Manual (PDF)
| Mechanical | |
| Height | 1.72 in. (43.6 mm.) |
| Width | 17.4 in. (443 mm.) |
| Depth | 6.7 in. (171 mm.) |
| Weight | 6.5 lbs. (3 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C |
| Storage: | -5 to 60°C |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11 ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11 ms/cycle) |
| Power | |
| Input | AC power adapter |
| Consumption | Max. 48 Watts, Standby 5 Watts |
| KVM Port | 16 x DB-15 Combo Connector |
| KVM Connectivity | Combo 4-in-1 KVM cable 6, 10 & 15 feet (CE-6, CE-10, CE-15) |
| Simultaneous Console Access | |
| Local | 1 x DB-15 VGA (up to 1920 x 1080/1920 x 1200), 2 x USB for KB & MS |
| Remote x 2 | 2 x RJ45, up to 500ft (150 meters) via CAT5/CAT5e/CAT6 cable |
| IP Access | 1 x RJ45 Ethernet Ports |
| IP Security | SSL v3, RSA, AES, HTTP / HTTPs, CSR 15-user logins (1 x active user) |
| Remote Receiver x 2 | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting local PC |
| Expansion | Support for up to 240 servers - requires M-802/M-1602 or MU-1602/MU-3202 |
| Compatibility | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix |
| Regulatory Approval | cUL, FCC, CE |
