The M-1602 is a 16-Port Matrix Multi-user DB-15 KVM Switch. This matrix KVM switch features 2 consoles, 1 x local and 1 x remote.

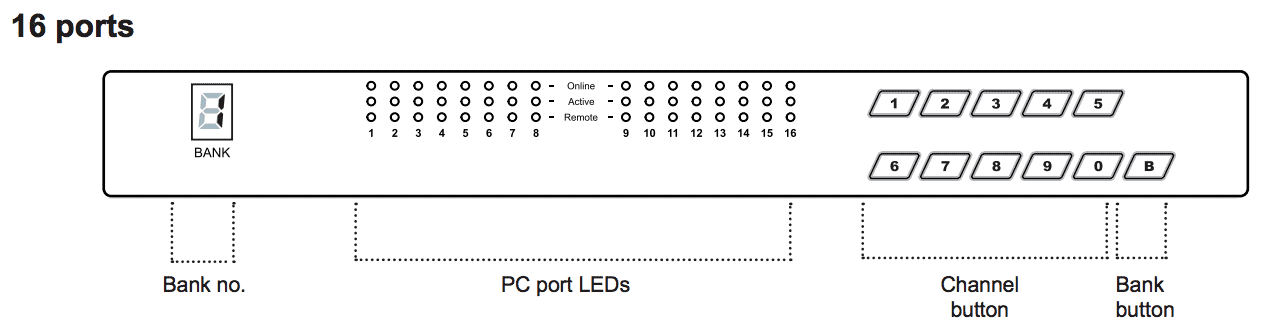

M-1602 Front Diagram

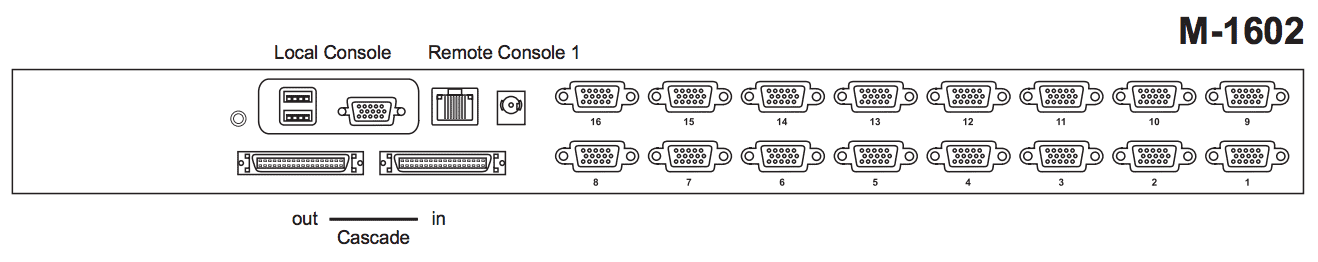

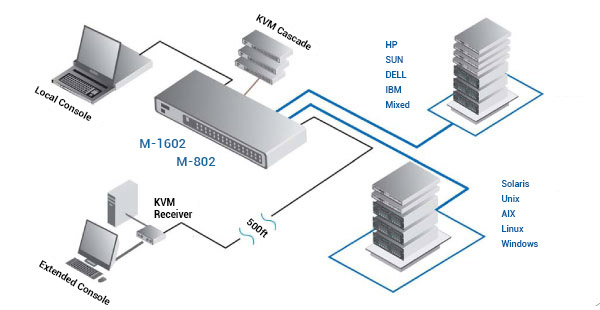

The M-1602 VGA DB-15 Matrix KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
The CyberView VGA DB-15 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
One local user and one extended user can control 16 multi-platform servers simultaneously. Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVMs.
The CyberView M-1602 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVM units using CMC-8 cables. The M-1602 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of M-802 / M-1602 or MU-1602 / MU-3202 KVM switches.
CyberView M-1602 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView M-1602 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
M-1602 Datasheet (PDF)
M-1602 Manual (PDF)
| KVM Port | |
| Number of ports | 16 |
| Connector | DB-15 combo connector |
| Connectivity | Combo 4-in-1 KVM cable (up to 6, 10 and 15ft) |
| Local Console | |
| Monitor Port | 1 x DB-15 VGA ( Up to 1920 x 1080 / 1920 x 1200 ) |
| Keyboard/Mouse | 2 x USB type connector for keyboard & mouse |
| Cat6 Remote Console | |
| Number Of Remote Ports | 1 |
| Monitor Port | B15-pin VGA ( Up to 1600 x 1200 ) |
| Keyboard/Mouse Port | 2 x USB type connector for keyboard & mouse |
| Remote I/O | RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet |
| Expansion | Up to 240 servers by 8-level cascade |
| Compatibility | |
| Multi-platform | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Support | Windows 7 / Vista / 2003 / XP, Linux, Unix |
| Power | |
| Input | AC Power Adapter |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| Regulatory | |
| Safety | UL, FCC & CE certified |
| Enviroment | RoHS2 & REACH compliant |
| Mechanical | |
| Height | 1.73 in. (4.4 cm.) |
| Width | 17.4 in. (44.3 cm.) |
| Depth | 6.7 in. (17.1 cm.) |
| Weight | 6.5 lbs. (3.0 kg.) |
| Package Dimensions (HxWxD) | 19.7 x 15.7 x 3.5 inch (500 x 400 x 90 mm) |
| Package Weight | 11.0 lbs. (5.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G acceleration (11ms, half sine wave) |
| Vibration | 8~100Hz / 0.98G (11ms / cycle) |
| Function | Hot Key Sequence |
| Calling OSD Menu | [Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc] |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Previous/Next Bank | [Scr Lock] [Scr Lock] + [PgUp/PgDn] |
| Switch to Specific Port | [Scr Lock] [Scr Lock] + Bank # + Port # |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [B] |
| Logout (Password Security Must Be On) | [Scr Lock] [Scr Lock] [P] |
| Advanced HotKeys (For Supervisor Login Only) | |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Reset Factory Defualts | [Scr Lock] [Scr Lock] [R] |
| Disable/Enable Password Security | [Scr Lock] [Scr Lock] [U] |
| Enable/Disable Screen Saving | [Scr Lock] [Scr Lock] [L] |
| Remote Console HotKeys | |
| Toggle Remote/Local Port | [Scr Lock] [Scr Lock] [C] |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [Q] |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Auto Adjust Video Signal | [Scr Lock] [Scr Lock] [A] |
