| 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|
| CV-S1601 | CV-S801 | 1 | 0 | 0 |
| IP-1602 | IP-802 | 1 | 1 | 0 |
| M-IP1613 | M-IP813 | 1 | 1 | 1 |
| M-IP1624 | M-IP824 | 1 | 2 | 1 |
| M-IP1614 | M-IP814 | 1 | 1 | 2 |
| CV-1602 | CV-802 | 1 | 0 | 1 |
| M-1602 | M-802 | 1 | 0 | 1 |
| M-1603 | M-803 | 1 | 0 | 2 |
| M-1604 | M-804 | 1 | 0 | 3 |
*Part numbers starting with 'M-' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The CV-801H is an 8-port DB-15 VGA-USB KVM Switch with USB Hubs.

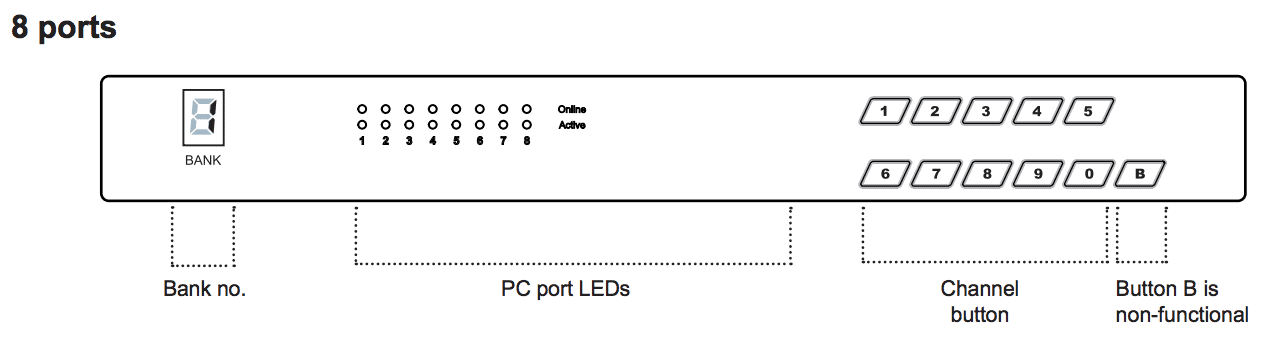

CV-801H Front Diagram
CyberView DB-15 Hub KVMs feature two USB Peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.
The CyberView VGA DB-15 Hub KVM switches support any computer platform with USB or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

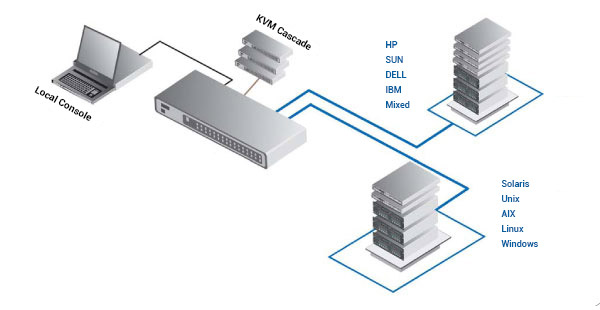

One local user can control 8 multi-platform servers. Advanced user profiles and configurable OSD hot key combinations allows for flexible BIOS-level remote server management.
The CyberView CV-801H can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
CyberView CV-801H ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView CV-801H KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
CV-801H Datasheet (PDF)
CV-801H User Manual (PDF)
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (443 mm.) |
| Depth | 6.7 in. (171 mm.) |
| Weight | 6.5 lbs. (3 kg.) |
| Environmental | |
| Operating / Storage Temperature | 0 to 55°C / -20 to 60°C |
| Relative Humidity | 20-90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz / 1G random vibration |
| Power | 100~240VAC, 50/60Hz 0.5A via IEC type cord (12V / 24V / 48V DC input option) |
| KVM Port | 8 x DB-15 combo connector |
| Local Console | |
| DB-15 VGA | 1 (up to 1920 x 1200) |
| USB for KB & MS | 2 |
| Expansion | None |
| Compatibility | |
| Hardware | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server. |
| Operating Systems | Windows, Linux, Unix, Mac OS |
| Regulatory Approval | FCC, CE, RoHS2, REACH |
