| 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|
| CV-S1601 | CV-S801 | 1 | 0 | 0 |
| IP-1602 | IP-802 | 1 | 1 | 0 |
| M-IP1613 | M-IP813 | 1 | 1 | 1 |
| M-IP1624 | M-IP824 | 1 | 2 | 1 |
| M-IP1614 | M-IP814 | 1 | 1 | 2 |
| CV-1602 | CV-802 | 1 | 0 | 1 |
| M-1602 | M-802 | 1 | 0 | 1 |
| M-1603 | M-803 | 1 | 0 | 2 |
| M-1604 | M-804 | 1 | 0 | 3 |
*Part numbers starting with 'M-' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.

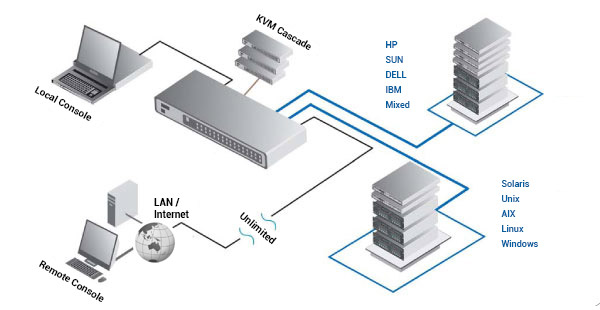

Securely control your servers from anywhere in the world via TCP/IP. The CyberView IP-802H is an affordable, single-user, 8-port, IP enabled KVM with integrated USB hub for sharing USB devices across target computers. The IP-802H supports multiple input styles and multiple platforms. Mix and match USB servers with the included 2-1 KVM cables (unit comes with 8 x CB-6 2-1 KVM cables) across Windows, Linux and other platforms.
With the included KVM cables, the CyberView IP-802H is a cost effective solution for anywhere, anytime KVM over IP access for BIOS level remote server management.

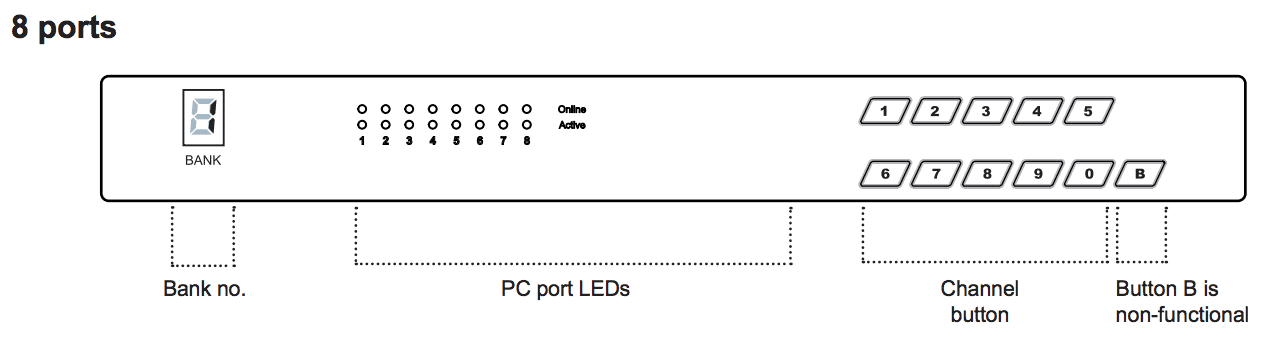

IP-802H Front Diagram
Use a VNC Viewer or Java Web Browser to connect to IP-802H servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.
CyberView DB-15 Hub KVMs feature two USB Peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.
The CyberView VGA DB-15 Hub KVM switches support any computer platform with USB or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
One local user or one remote IP user can control 8 multi-platform servers. Up to 15 different IP user profiles can be stored with personal settings for each user defined.
The CyberView IP-802H can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
CyberView IP-802H ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView IP-802H KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
IP-802H Datasheet (PDF)
IP-802H User Manual (PDF)
IP-802H KVM-Over-IP Manual (PDF)
| Mechanical | |
| Height | 1.72 in. (43.6 mm.) |
| Width | 17.4 in. (443 mm.) |
| Depth | 6.7 in. (171 mm.) |
| Package Dimensions | 3.5 x 19.7 x 15.7 in. (90 x 500 x 400 mm.) |
| Form Factor | 1U rackmountable w/ Included Mounting Kit |
| Net Weight | 6.5 lbs. (3 kg.) |
| Gross Weight | 11 lbs. (5 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11ms, half-sine wave) |
| Vibration | 58~100Hz / 0.98G (11ms / cycle) |
| Power | |
| Input | 100 or 240V AC at 50 or 60 Hz via IEC type cord |
| Consumption | Max. 12 Watt, Standby 5 Watt |
| IP Remote Console | |
| Connector | RJ45 Ethernet |
| User Management | 15-user login, 1 x active user |
| Network Protocol | DHCP / BOOTP / DNS |
| Security | SSL v3, RSA, AES, HTTP / HTTPS, CSR |
| Resolution | Up to 1600 x 1200 |
| Browser | IE, Firefox, Safari, Netscape |
| Local Console | |
| Graphic Connector | 1 x DB-15 VGA |
| Resolution | Up to 1920 x 1200 |
| Input device | 2 x USB type A for keyboard & mouse |
| USB Hub | 2 x USB type A for sharing other peripheral devices among the computers |
| KVM Port | |
| Number of Ports | 8 |
| Connector | DB-15 Combo Connector |
| Connectivity | Combo 2-1 VGA + USB KVM Cable 6, 10, or 15 feet |
| Compatibility | Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs. Windows 7 / Vista / 2003 / XP, Linux, Unix, Mac G3 / G4 / iMac |
| Regulation Approval | FCC, CE |
| Warranty | 24 months Parts & Labor |
| Function | Hot Key Sequence |
| Calling OSD Menu | [Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc] |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Previous/Next Bank | [Scr Lock] [Scr Lock] + [PgUp/PgDn] |
| Switch to Specific Port | [Scr Lock] [Scr Lock] + Bank # + Port # |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [B] |
| Logout (Password Security Must Be On) | [Scr Lock] [Scr Lock] [P] |
| Advanced HotKeys (For Supervisor Login Only) | |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Reset Factory Defualts | [Scr Lock] [Scr Lock] [R] |
| Disable/Enable Password Security | [Scr Lock] [Scr Lock] [U] |
| Enable/Disable Screen Saving | [Scr Lock] [Scr Lock] [L] |
| Remote Console HotKeys | |
| Toggle Remote/Local Port | [Scr Lock] [Scr Lock] [C] |
| Buzzer On/Off | [Scr Lock] [Scr Lock] [Q] |
| AutoScan Mode | [Scr Lock] [Scr Lock] [S] |
| Auto Adjust Video Signal | [Scr Lock] [Scr Lock] [A] |
