| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|
| U-3201 | U-1601 | U-801 | 1 | 0 | 0 |
| U-IP3202 | U-IP1602 | U-IP802 | 1 | 1 | 0 |
| MU-IP3213 | MU-IP1613 | -- | 1 | 1 | 1 |
| MU-IP3214 | MU-IP1614 | -- | 1 | 1 | 2 |
| MU-IP3224 | MU-IP1624 | -- | 1 | 2 | 1 |
| U-3202 | U-1602 | U-802 | 1 | 0 | 1 |
| MU-3202 | MU-1602 | -- | 1 | 0 | 1 |
| MU-3203 | MU-1603 | -- | 1 | 0 | 2 |
| MU-3204 | MU-1604 | -- | 1 | 0 | 3 |
*Part numbers starting with 'M' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.
The MU-3202 is a 32-Port Matrix Multi-user Cat6 KVM Switch. This matrix KVM switch features 2 consoles, 1 x local and 1 x remote.

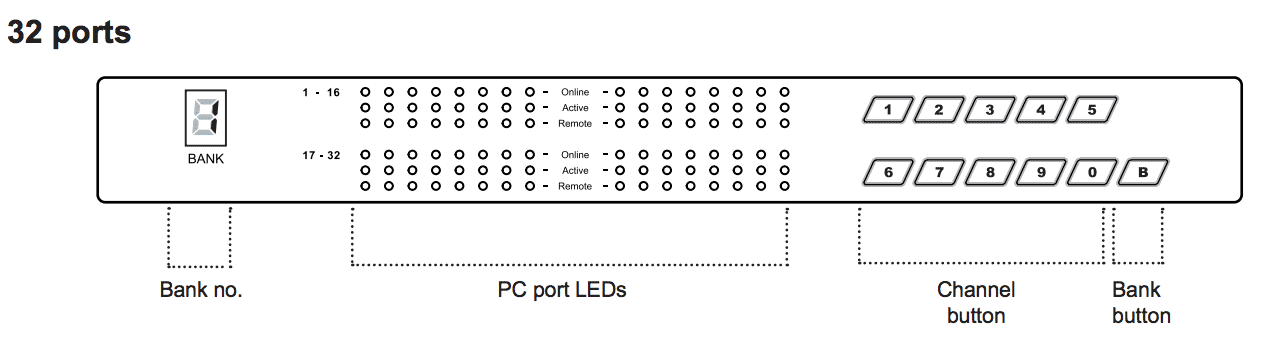

MU-3202 Front Diagram

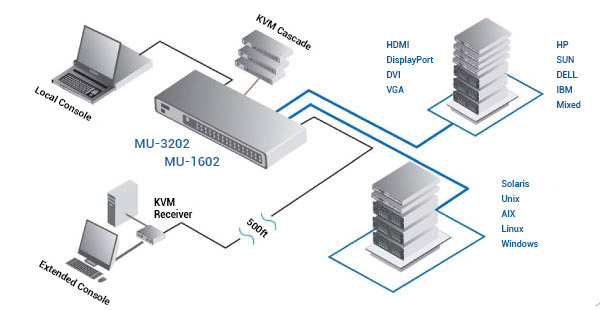

The MU-3202 Cat6 Matrix KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
MU-3202 supports any combination of VGA, DVI, HDMI, DisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.
One local user and one extended user can control 32 multi-platform servers simultaneously. Expand up to 256 source computers simply by linking Cat6 Matrix KVMs.
The CyberView Cat6 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
The CyberView MU-3202 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Expand up to 256 source computers simply by linking Cat6 Matrix KVM units using CMC-8 cables. The MU-3202 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of MU-1602 / MU-3202 or M-802 / M-1602 KVM switches.
CyberView MU-3202 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView MU-3202 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
MU-3202 Datasheet (PDF)
MU-3202 Manual (PDF)
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (443 mm.) |
| Depth | 6.7 in. (171 mm.) |
| Weight | 6.5 lbs. (3 kg.) |
| Environmental | |
| Operating/Storage Temperature | 0 to 55°C / -20 to 60°C |
| Relative Humidity | 20-90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz / 1G RMS random vibration |
| Power | 100~240VAC, 50/60Hz 0.5A via AC / DC cord |
| KVM | |
| Ports | 32 x RJ45 connector |
| Simultaneous Console Access | |
| Local | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB to KB & MS |
| Remote (1) | 1 x RJ45, up to 1000 ft. Cat6 cable |
| Remote Receiver (1) | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS 1 x KVM port for connecting to an extra PC |
| Expansion | Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers |
| Compatibility | |
| Hardware | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs servers |
| Operating Systems | Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS |
| Regulatory Approval | cUL, FCC, CE, RoHS2, REACH |
