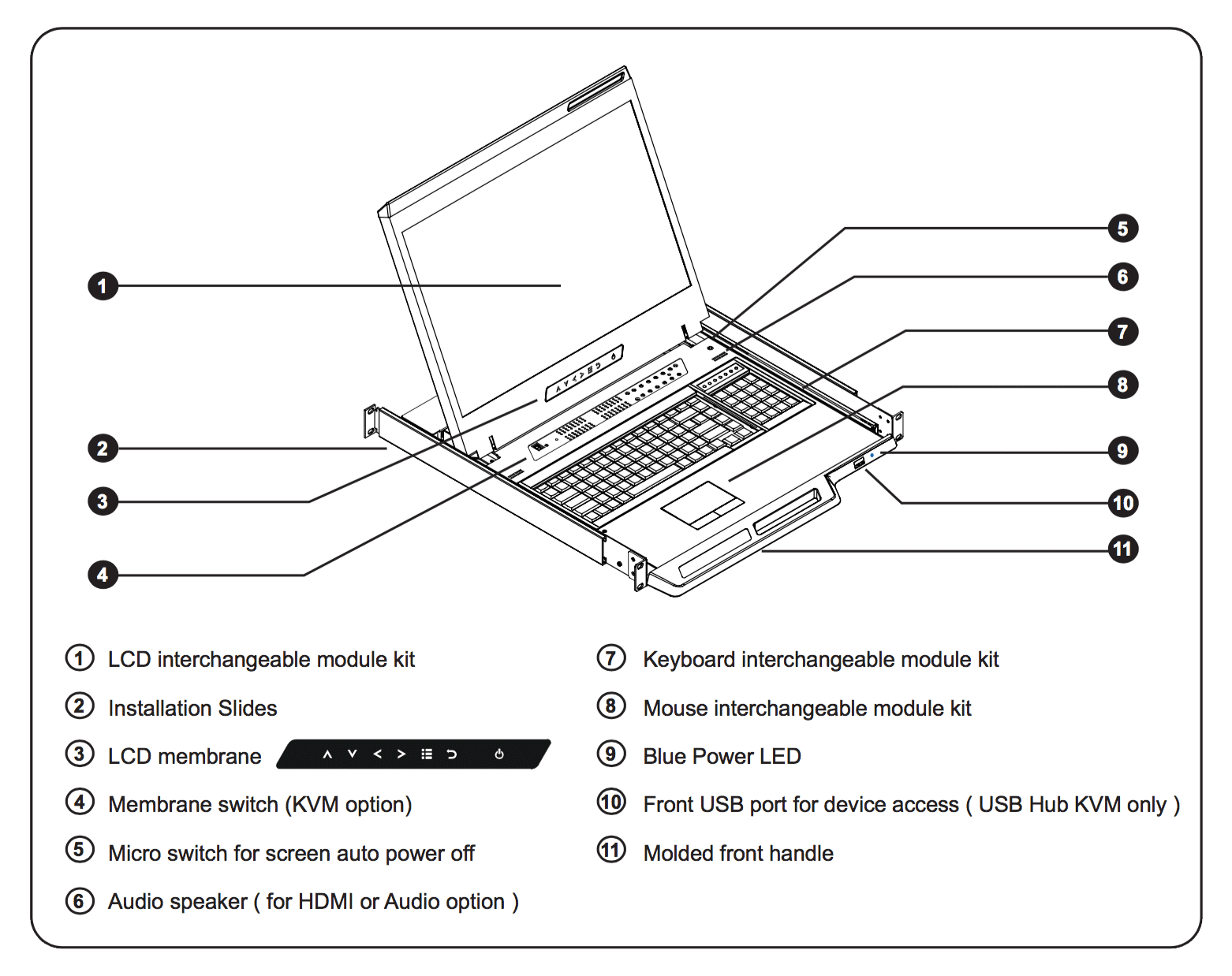

Raloy RWX119-CATx rack console features a 19" Widescreen HD LCD and an Integrated High Density CATx single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).
The Raloy RWX119 features a 19" widescreen High-Contrast LCD delivering up to 1440 x 900 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.
Raloy Cat6 KVMs support any combination of VGA, DVI, HDMI, USB-C, DisplayPort, USB, and PS/2 sources with optional audio through low-cost KVM dongles. Source computers can be located up to 131 feet (40 m) away via Cat5/6 cable.
One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.
Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.
The Raloy RWX119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RWX119 supports USB, PS2 and Sun keyboard/mouse interfaces.
This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.
Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.
A decade of testing rack mount monitors led Raloy to their next generation refined design including:
| 32 Ports | 16 Ports | 8 Ports | Local Users | IP Web Users | Extended Users |
|---|---|---|---|---|---|

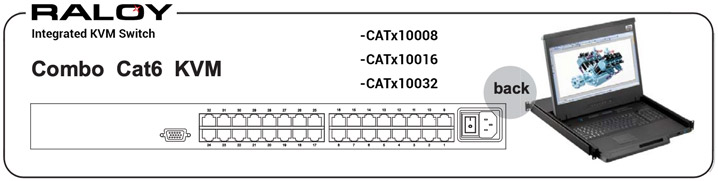

| RWX119-CATx10032 | RWX119-CATx10016 | RWX119-CATx10008 | 1 | 0 | 0 |

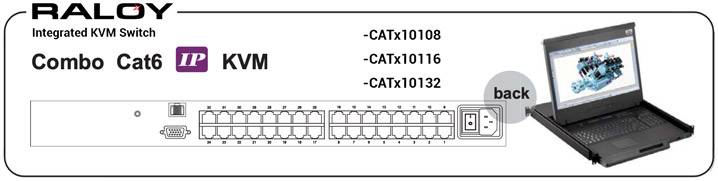

| RWX119-CATx10132 | RWX119-CATx10116 | RWX119-CATx10108 | 1 | 1 | 0 |

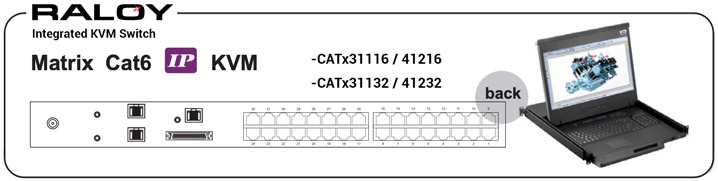

| RWX119-CATx31132 | RWX119-CATx31116 | -- | 1 | 1 | 1 |
| RWX119-CATx42132 | RWX119-CATx42116 | -- | 1 | 1 | 2 |
| RWX119-CATx41232 | RWX119-CATx41216 | -- | 1 | 2 | 1 |

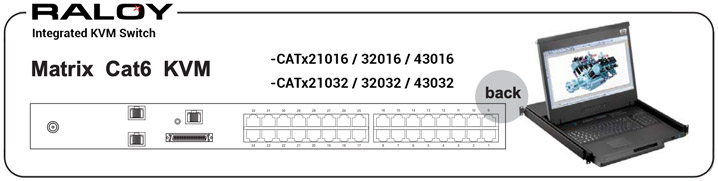

| RWX119-CATx21032 | RWX119-CATx21016 | -- | 1 | 0 | 1 |
| RWX119-CATx32032 | RWX119-CATx32016 | -- | 1 | 0 | 2 |
| RWX119-CATx43032 | RWX119-CATx43016 | -- | 1 | 0 | 3 |
RWX119 Datasheet (PDF)
RWX119 Manual (PDF)
Cat6 KVM Manual (PDF)
IP Functions for KVM Manual (PDF)
| Mechanical | |
| Height | 1.73 in. (44 mm.) |

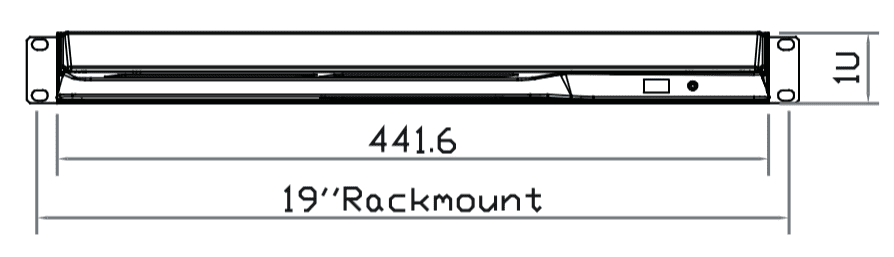

| Width | 17.4 in. (442 mm.) |
| Depth | 22.8 In. (579.1 mm.) |
| Package Dimensions | 23.2 x 30.2 x 5.5 in. (590 x 768 x 140mm) |
| Mounting Depth | 23.5 in. (min) to 34.5 in. (max) (596.9 to 876.3 mm) |

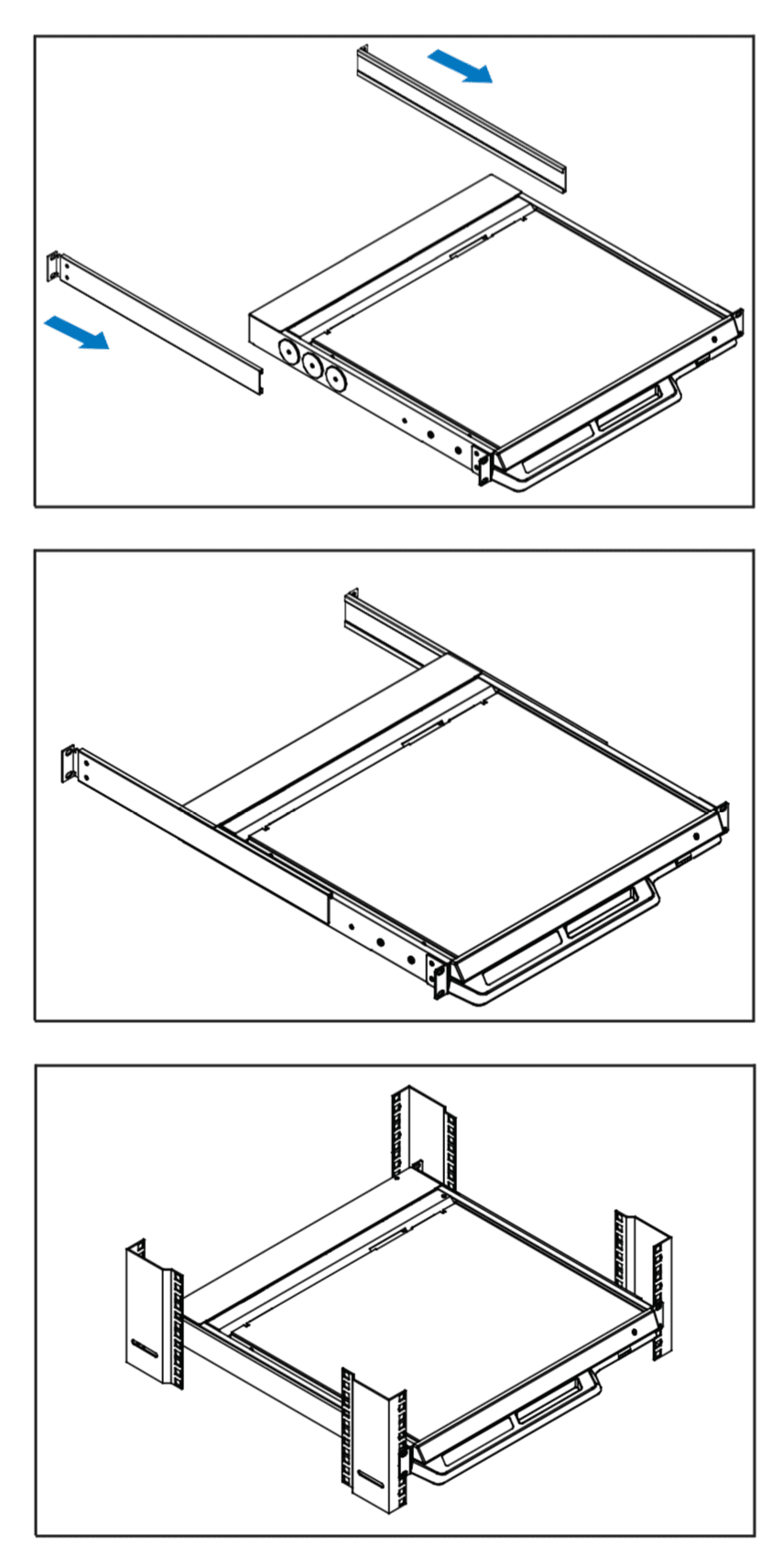

| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 28 lbs. (12.5 kg.) |
| Gross Weight | 40.5 lbs. (18.4 kg.) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 23 to 140°F (-5 to 60°C) |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 19" Widescreen TFT |
| Max. Resolution | 1440 x 900 |
| Brightness (cd/m2) | 300 |
| Color Support | 16.7 Mil. |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 160° |
| Display Area (mm) | 408 x 255 |
| Response Time (ms) | 5 |
| VGA Signal Input | Analog RGB, 0.7Vp-p |
| Sync. Type | Separate H/V, Composite, SOG |
| Resolution | 1440 x 900 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 960 x 60Hz 1280 x 760 x 60 / 75Hz 1152 x 864 x 75Hz 1024 x 768 x 60 / 70 / 75Hz 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz |
| Plug & Play DDC | EDID 1.3 |
| Console Port | VGA + USB or PS/2, server end DB15 (VGA, USB KB/MS), console side |
| Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers |
| Regulation Approval | cUL (console), FCC & CE certified RoHS2 & REACH compliant |
