1U Dual Slide 19" Rack Mount Monitor Keyboard Drawer w/ Touchpad

D119e

$1,481.00$1,298.00
Save $183.00
Model: 19"
  • 17"
  • 19"
  • + Compare Family
Version: 1280 x 1024 (4:3) Display
FREE Shipping on orders over $100

The D119e is a 1U Dual Slide Rackmount LCD Monitor with 19" LCD.  The keyboard is a 104 key notepad keyboard with touchpad mouse and includes 1 6ft combo 4-in-1 KVM cable.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

Austin Hughes CyberView D119 Dual Side Rack Monitor User Station

D119 Features & Benefits:

  • 1U dual slide rackmount drawer with 19" Grade A LCD panel
  • 1280 x 1024 native resolution / 16.7M colors
  • Mix PS/2, USB & SUN with Multi-platform switch capability
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with touchpad
  • Enhanced aesthetics with molded front panel and two point lock

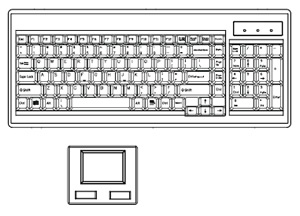

"Ne" style keyboard included with D-119
"Ne" style keyboard included with D-119

D-117 Rackmount LCD Diagram
D119 Rackmount LCD Diagram

Optional Configurations (Contact us for availability)

  • DVI-D / HDMI 1.2 video input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options
  • MAC or SUN Micro keyboard options available

D119 Package Contents

CyberView d119 Package Contents
  • (1) D119 Console Drawer
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

D119 Resources

CyberView D119 Diagram D119 Brochure (PDF)
D119 Manual (PDF)
D119 Integrated KVM Manuals (Link)

D119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console29 lbs. (13.2 kg)
Console w/ KVM31.2 lbs. (14.2 kg)
Gross Weight
Single Console41.8 lbs. (19 kg)
Console w/ KVM44.9 lbs. (20.4 kg)
Mounting Distance
Single Console / Console with KVM26 ~ 34.3 inch
(660 ~ 870mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

D119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView D119 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-D119-MUIP1613D119-MUIP3213
121-D119-MUIP1614D119-MUIP3214
112-D119-MUIP1624D119-MUIP3224
110-D119-MU1602D119-MU3202
120-D119-MU1603D119-MU3203
130-D119-MU1604D119-MU3204

Austin Hughes CyberView D119 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101D119-UIP802D119-UIP1602D119-UIP3202
110D119-U802D119-U1602D119-U3202
100D119-U801D119-U1601D119-U3201

Austin Hughes CyberView D119 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100D119-1201D

Austin Hughes CyberView D119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111D119-MIP813D119-MIP1613-
121D119-MIP814D119-MIP1614-
112D119-MIP824D119-MIP1624-
110D119-M802D119-M1602-
120D119-M803D119-M1603-
130D119-M804D119-M1604-

Austin Hughes CyberView D119 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101D119-IP802D119-IP1602-
110D119-802D119-1602-
100D119-S801D119-S1601-

Austin Hughes CyberView D119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101D119-IP802HD119-IP1602H-
110D119-802HD119-1602H-
100D119-801HD119-1601H-

Austin Hughes CyberView D119 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100D119-801D119-1601-
Question: What is the width of the unit with the slide rails installed
Answer: Thank you for your inquiry,

The D-119 is a standard 19"EIA rackmount console drawer - so right around 17.7"W (x 1 RMU high) with rails and 19"w between each mounting tab screw hole on on the ends of the rails.
