2U 17" 1080P Dual-Slide Short Depth Rack Mount Monitor Keyboard Drawer

RKP2417F

$1,558.00$1,366.00
Save $192.00
Model: RKP2417F
  • + Compare Family
Version: 1920 x 1080 (16:9) Display
FREE Shipping on orders over $100

The new CyberView RKP2417F is a 1080P Short Depth 2U 17" Rack Mount Monitor Drawer. RKP24 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

Austin Hughes CyberView RKP2417F Diagram

RKP2417F Features and Benefits

  • 2U 17" 1080P LCD console drawer
  • Dual slide - LCD and keyboard slide independently
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more

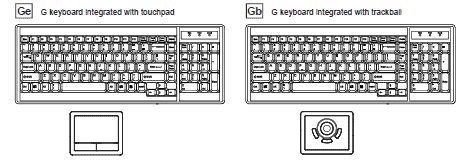

RKP2417F Trackpad or Trackball Options

Optional Configurations (Call for availability)

  • HDMI 1.3 (HDCP 1.1) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC Power: 12, 24, 48, 125, 250 V DC
  • Multiple integrated KVM Switch options
  • MAC or SUN Micro keyboard options available
  • Touchscreen: Projected Capacitive 10-pt / Resistive 1-pt

RKP2417F Package Contents

CyberView RKP2417F Package Contents
  • (1) RKP2417F Console Drawer
  • (1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RKP2417F Resources

CyberView RKP2417F Diagram RKP2417F Brochure (PDF)
RKP2417F Manual (PDF)
RKP2417F Integrated KVM Manuals (Link)

Cyberview RKP2417F Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 18.9 in.
(44 x 442 x 480 mm.)
Console w/ KVM1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console44.9 lbs. (20.4 kg)
Console w/ KVM46.4 lbs. (21.1 kg)
Gross Weight
Single Console54.6 lbs. (24.8 kg)
Console w/ KVM59.4 lbs. (27 kg)
Mounting Distance
Single Console /
Console w/ KVM		19.3 ~ 27.6 inch
(490 ~ 700 mm)
Console Ports
Video InputVGA + DVI-D single link
Video OptionHDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable : CB-6 Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
DVI-D console 6ft cable : CX-6 Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution1920 x 1080
Brightness (cd/m2)400
Colors16.7 M, 8-bit
Contrast Ratio (typ)600 : 1
Viewing angle ( L/R/U/D 80/80/60/80
Response time ( ms )40
Dot pitch ( mm )0.1989
Display area ( mm )381.888H x 214.812V
Surface treatmentAnti-glare, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

RKP2417F models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView RKP2417F with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-RKP2417F-MUIP1613RKP2417F-MUIP3213
121-RKP2417F-MUIP1614RKP2417F-MUIP3214
112-RKP2417F-MUIP1624RKP2417F-MUIP3224
110-RKP2417F-MU1602RKP2417F-MU3202
120-RKP2417F-MU1603RKP2417F-MU3203
130-RKP2417F-MU1604RKP2417F-MU3204

Austin Hughes CyberView RKP2417F with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101RKP2417F-UIP802RKP2417F-UIP1602RKP2417F-UIP3202
110RKP2417F-U802RKP2417F-U1602RKP2417F-U3202
100RKP2417F-U801RKP2417F-U1601RKP2417F-U3201

Austin Hughes CyberView RKP2417F with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100RKP2417F-1201D

Austin Hughes CyberView RKP2417F with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111RKP2417F-MIP813RKP2417F-MIP1613-
121RKP2417F-MIP814RKP2417F-MIP1614-
112RKP2417F-MIP824RKP2417F-MIP1624-
110RKP2417F-M802RKP2417F-M1602-
120RKP2417F-M803RKP2417F-M1603-
130RKP2417F-M804RKP2417F-M1604-

Austin Hughes CyberView RKP2417F with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101RKP2417F-IP802RKP2417F-IP1602-
110RKP2417F-802RKP2417F-1602-
100RKP2417F-S801RKP2417F-S1601-

Austin Hughes CyberView RKP2417F with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101RKP2417F-IP802HRKP2417F-IP1602H-
110RKP2417F-802HRKP2417F-1602H-
100RKP2417F-801HRKP2417F-1601H-

Austin Hughes CyberView RKP2417F with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100RKP2417F-801RKP2417F-1601-

Exact part numers for this itme include: RKP2417Fe, RKP2417Fb, RKP2417Fe-HDMI, RKP2417Fb-HDMI, RKP2417Fe-SDI, RKP2417Fb-SDI, RKP2417Fe-TRB, and RKP2417Fb-TRB
